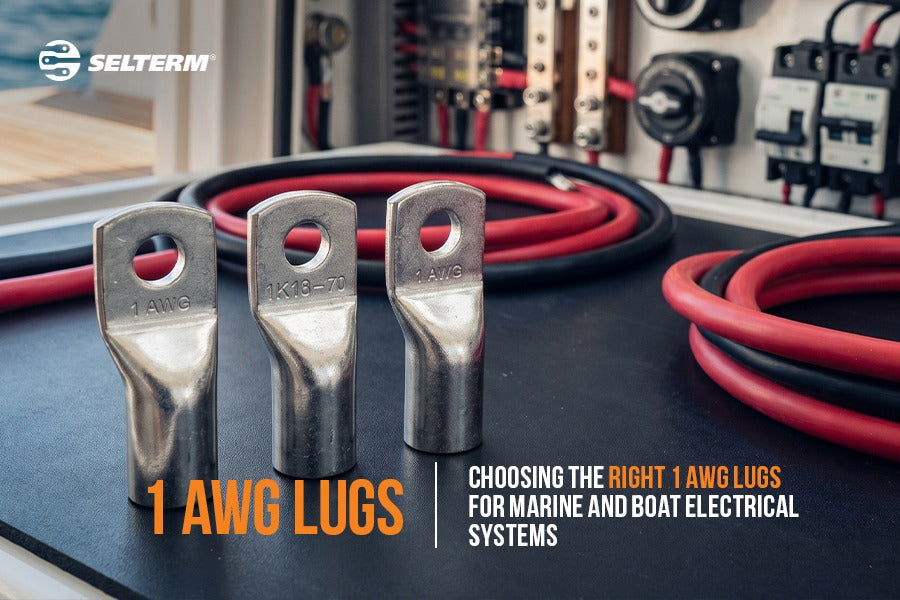

Choosing the Right 1 AWG Lugs for Marine and Boat Electrical Systems

Outfitting a boat's power grid is completely different from working on a dry land project. If you install standard automotive hardware inside a damp bilge or leave it exposed to coastal salt air, you are setting yourself up for an expensive electrical failure before the boating season even gets moving. Moisture and high humidity destroy unprotected electrical junctions fast.

On heavy-duty marine setups, 1 AWG wire is the primary size used to feed high-current equipment like main battery banks, large inverter systems, anchor winches, and bow thrusters. At this level, you are moving intense electrical current. Any weak link in the chain acts like a closed valve on a hose, starving your accessories of voltage and converting that power directly into dangerous heat. Choosing a dedicated, high-purity 1 awg lug is a critical safety choice when modifying or repairing boat wiring.

The Trap of Flimsy Retail Connectors

Look at the flashy, generic electrical connectors sitting in discount retail bulk bins. Most of those cheap options are stamped out of thin, unannealed brass sheet metal or cast from brittle zinc blends with a thin cosmetic finish. They snap under structural pressure.

The second you apply thousands of pounds of pressure from a hydraulic tool to crush the barrel, those cheap options split wide open down the seam or warp across the flat face. Even if they survive the initial installation without cracking, their actual electrical conductivity is poor compared to pure copper.

Boat engine rooms and battery compartments are brutal on hardware. Constant wave impact rattles the entire hull, while engine temperatures swing wildly inside enclosed spaces. Thin retail terminals loosen under this physical pounding. When managing heavy electrical loads miles away from the shoreline, installing premium 1 gauge wire lugs serves as your primary defense against a dead electrical system.

Why Pure Copper Substrate Matters

Long-term offshore reliability relies entirely on the quality of the underlying metal. High-load marine networks demand connections built from seamless C11000 electrolytic copper. This pure grade provides the highest possible electrical and thermal performance. Because pure copper is soft and workable, it deforms uniformly under hydraulic crimping pressure.

A seamless 1 awg cable lug barrel flows completely around the flexible wire strands instead of splitting open down a weak side seam. This compression fuses the wire and the connector into one solid block of metal with zero hidden air pockets inside.

For maximum longevity in corrosive open-water environments, pairing high-purity copper metallurgy with a proper adhesive-lined heat shrink seal isolates the metal core entirely from salt air and moisture. This proper installation method keeps your high-amperage connections operating efficiently for decades.

Solder vs. Mechanical Crimping on Boats

An old dockside repair trick that consistently ruins heavy boat wiring is using a propane torch and solder to secure heavy cable connectors. Solder creates a clean-looking joint initially, but professional marine electrical standards ban the process for high-vibration environments.

As heat melts the solder into the terminal barrel, capillary action draws the liquid metal straight up the flexible stranded wire past the lug entry. Once cooled, the solder hardens, turning a flexible marine cable into a stiff, solid metal rod.

Boats bash against waves and shake constantly. All that mechanical stress concentrates directly at the exact spot where the flexible wire insulation meets that rock-hard, soldered section. Over time, individual copper wire strands suffer from metal fatigue and snap clean off right at the back of the terminal barrel. The industry standard for compliance is a gas-tight mechanical crimp. Forcing a robust 1 awg terminal lug to compress uniformly from six sides cold-welds the wire strands directly to the inner walls, sealing out all air so interior salt rot cannot start.

The 1 AWG Crimp Process

• Strip It to Bare, Bright Copper: Do not ever crimp over dark, corroded, or greasy wire strands. If the cable has been sitting around a damp shop, chop the bad ends off until you hit clean, bright metal. If it still looks a little dull, scrub the strands aggressively with a stainless steel wire brush. You want that copper shining before it goes anywhere near the barrel.
• Check Your Depth: Slide the wire jacket back to match the depth of the lug barrel. Shove the wire all the way in until copper strands pack tightly against the inspection window. The leftover insulation jacket needs to sit flush against the back of the barrel—keep any gap under a sixteenth of an inch.
• Use the Right Hex Die: Match your wire gauge exactly to the die on your crimping tool. No guessing here. Use a solid hydraulic or manual hex tool to crush the barrel completely. Let the tool go through its full mechanical cycle so it cold-welds the strands and terminal walls into a single, solid chunk of copper.
• Bury the Joint in Glue-Lined Heat Shrink: Slide a piece of heavy-wall, 3:1 adhesive-lined heat shrink directly over the raw metal connection and hit it with a heat gun. Wait until the internal glue melts and squirt out around the bottom edges of the tubing. That squeezed-out glue is your proof—it creates a permanent, waterproof seal that stops road salt, pooling water, and engine grease from rotting your wires over time.

Marine Electrical Upkeep Protocols

Establishing a rigorous preventative maintenance schedule is essential for safeguarding your vessel's primary power circuits. At least once a season, open your battery lockers to physically trace the cables and check every terminal junction for tightness, structural shifts, or hair-line fractures caused by hull pounding. Look for signs of heat stress, such as bubbling insulation or a dull, dark coloration on the copper surfaces. If you find a connection compromised by bilge moisture, dismantle the joint entirely and clean the contact faces with a clean rag and isopropyl alcohol to ensure zero voltage drops when reassembled.

Critical Workshop Warning: Never clear away surface oxidation on a copper connection using coarse files, heavy emery cloth, or harsh sandpapers. Aggressive abrasion creates microscopic grooves and pits in the metal face, trapping salty air and accelerating severe corrosion once the terminal is bolted back down. If any terminal pad is stretched out, warped from over-tightening, or exhibits deep green rot eating into the barrel entry, scrap it immediately rather than attempting to save it. Cutting the line back to clean, untarnished strands and executing a proper compression crimp is your only insurance against unexpected failures at sea.

Premium Offshore Power Components

An electrical network's performance depends entirely on the stability of its joints. Skimping on basic wire terminals introduces immediate voltage drops, starves your electronics, and leads to frustrating troubleshooting when you are miles away from the dock. When your marine configuration demands maximum conductivity and mechanical resilience against open-ocean conditions, upgrading to heavy-duty, pure copper connections is the ultimate solution.

Investing in high-purity, seamless copper terminations eliminates circuit resistance and stops localized heating before it starts. By replacing old, sketchy factory hardware with premium 1 gauge wire lugs, you guarantee full current delivery to your high-draw windlasses and inverter banks. Combining top-tier metallurgy with precision hydraulic compression and adhesive-lined heat shrink creates a totally waterproof, gas-tight power infrastructure engineered to run flawlessly for years.
