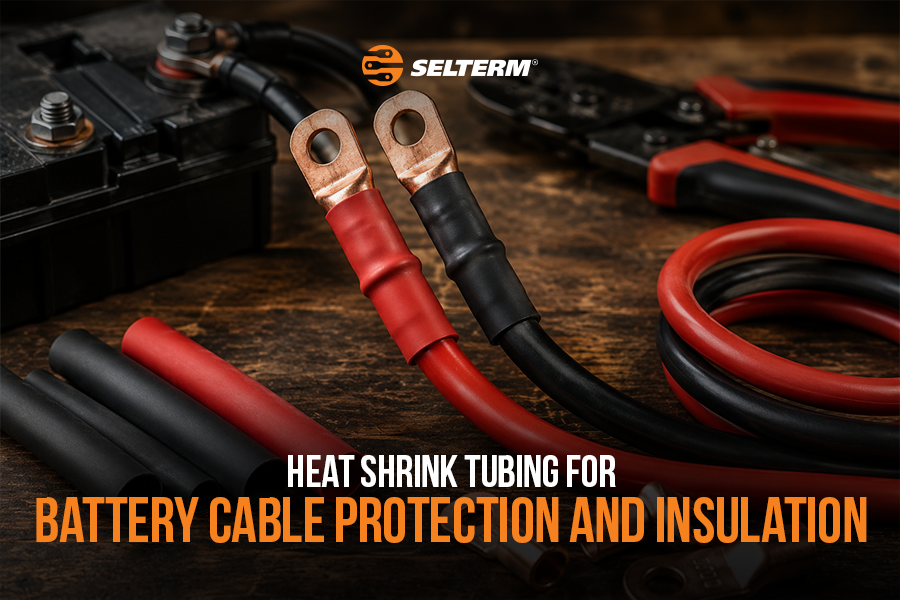

Heat Shrink Tubing for Battery Cable Protection and Insulation

Leaving a fresh crimp bare is just a bad idea. It doesn’t matter if your mechanical cold-weld looks perfect right after you hit it with the tool; raw metal breaks down fast out in the real world. Road salt, water spray, grease leaks, and battery acid fumes will rot your heavy wire lines from the inside out before the season even changes. The absolute worst spot is that tiny edge where your factory wire jacket ends and the bare metal lug barrel begins.

The second moisture hits that specific gap, it wicks right up the copper strands under the insulation jacket. You won't notice a thing until your electrical accessories start throwing weird codes or your engine refuses to crank. Shoving a thick length of premium protective material over that connection is the only way to lock out environmental rot permanently. Forget about using standard black electrical tape here. Engine bay heat dries out the tape glue in a couple of weeks. It turns into an unraveled, sticky mess that slides right off the metal terminal when the vehicle vibrates down the highway. If you are building high-current setups for a work truck, an off-grid solar bank, or an ocean boat, a proper heat shrink tubing kit is mandatory gear, period. This protective setup ensures you have all the necessary sizes on hand to match the varying demands of heavy electrical routing jobs.

When working with heavy power circuits, managing current delivery means protecting the structural integrity of your conductors. A complete assortment of multi-size protective sleeves allows you to match individual line diameters perfectly. Having a diverse collection nearby saves you from making compromises during late-night shop builds. Instead of trying to force a mismatched sleeve over a large lug or settling for a loose fit that invites condensation, an organized supply provides clean engineering options for every custom splice. This professional preparation steps up the build quality from a backyard patch job to an industrial-grade wiring layout that can easily withstand the test of time and weather.

The Failures of Standard Single-Wall Sleeves

Those thin, multi-colored discount packs sitting in bargain bins at local auto stores are completely useless for heavy power connections. Most of them are made from flimsy, single-wall PVC or generic polyolefin without a single drop of sealant inside them. They chafe through instantly if they rub against a sharp frame rail or a shaking engine bracket.

Since they don't have an internal glue layer, they do not actually seal anything out. Instead, condensation gets trapped right underneath the loose plastic sleeve, holding dampness tight against the raw copper strands. When running heavy winches or dual-battery systems, massive current draws cause the wires to heat up and cool down. This constant expanding and contracting splits thin, brittle retail wrap wide open, exposing the live terminal pad and creating an immediate dead short risk against your vehicle's metal frame chassis. Without a dedicated layer of defense like heavy-duty heat shrink tubing, your core lines are continuously exposed to environmental degradation.

Once moisture works its way underneath a non-sealed sleeve, capillary action draws it deep into the internal wire core. Capillary action describes how liquid naturally travels through tight spaces, functioning exactly like water climbing up a straw. In a stranded cable, the tiny spaces between the individual copper wires act like microscopic pathways. Acidic fluids and road salt travel inches or even feet into the cable jacket, rusting out the conductor from the inside out while leaving the exterior insulation looking completely normal. By the time you notice sluggish cranking or sudden voltage drops across your electrical distribution blocks, the copper wire has already degraded into a brittle, high-resistance mess that requires a complete and costly system teardown to repair.

Environmental Isolation via Mechanical Co-Extrusion

Keeping your power lines alive in a brutal engine bay environment comes down to insulation thickness. High-load circuits require thick-walled, adhesive-lined dual wall heat shrink featuring a tight 3:1 or 4:1 compression profile. This heavy-duty setup gives you a multi-layered boundary:

• The Toughened Polyolefin Outer Layer: This thick jacket takes all the physical abuse. It stops heavy abrasions, stands up to direct fuel and battery acid splashes, and stays flexible without cracking open when temperatures drop way below zero.
• The Hot-Melt Internal Glue: The moment you hit it with a heat gun, this hidden lining melts into a thick liquid sealant. As the outer tube shrinks, it crushes that liquid glue directly into the tiny spaces between the wire strands and the terminal wall, hardening into a solid, waterproof block.

The internal adhesive serves a structural purpose beyond just locking out moisture. When the hot-melt inner liner cools, it turns into an incredibly tough plastic barrier that anchors the cable jacket directly to the metal terminal barrel. This solid union distributes mechanical stress evenly across the joint. Instead of your crimped copper strands bearing all the pulling forces and vibrations from bumpy roads or high-seas pounding, the hardened glue absorbs the physical strain. This structural relief prevents the individual copper wires from fatiguing and snapping off at the entry point over years of continuous service.

Radial Compression and Cross-Sectional Convergence

Don't guess on the tubing diameter. Grab a sleeve that slides over the lug barrel easily but still has enough range to compress down tightly onto the thinner wire insulation. For heavy 4 AWG down to 2/0 AWG runs, a 3:1 shrink ratio handles that awkward metal step-down without leaving loose gaps.

Cut your piece long enough to cover the entire length of the terminal barrel plus at least one full inch of the clean wire jacket. That extra overlap gives the internal adhesive plenty of clean surface area to grab onto, stopping water from leaking in through the back. Slide the tube into place over the joint. Take a quality heat gun and start applying heat directly to the middle of the metal barrel first, then slowly sweep toward the outer edges. Doing it this way drives out any trapped air bubbles instead of locking pockets inside the finished joint. Keep the heat moving until the sleeve shrinks completely to the shape of the metal. You want to see a small, uniform bead of melted internal glue squeeze out around both ends of the tubing. If you are rigging an offshore boat grid, you absolutely need high-grade marine heat shrink tubing with this active glue lining to stop salt air from tracking up the core of your cables.

Using the proper installation methodology changes the entire physical profile of the wiring node. As the outer wall experiences radial compression, it shrinks inward with immense force, forcing the liquefied adhesive into every micro-void between the stranded copper elements. This extreme pressure forces out all pockets of atmospheric air, achieving cross-sectional convergence. Eliminating internal air prevents hidden condensation loops from forming inside the terminal when temperatures fluctuate wildly between freezing winter garage storage and blazing engine operation. The resulting joint becomes a single, dense composite structure that blocks out corrosive elements completely.

Integrity Audits and Thermal Application Protocols

Make it a habit to check your heavy connections once a season. Don't just look at them from a distance—get your hands on the cables and wiggle them. Feel for brittle spots in the insulation, signs of outer wall chafing, or any stiffening caused by localized overheating from a loose bolt.

• Put the lighters away: Never use a pocket lighter or a dirty torch flame to shrink your tubing. Direct, unregulated flames will scorch, blister, and crack the polyolefin wall, destroying its voltage insulation rating before you even bolt the cable down.
• Cut out damaged sleeves entirely: If a sharp metal edge slices your insulation open, don't patch it with electrical tape. Slice the ruined sleeve off completely, scrub the metal back to bright copper with a wire brush, and slide on a fresh piece of heavy, defensive tubing.

Proper thermal regulation during the installation process ensures the protective jacket maintains its full manufacturer design specifications. Applying a raw flame cooks the outer polymer matrix, burning away the essential plasticizers that allow the sleeve to bend without snapping. This localized scorching creates tiny, invisible micro-cracks that split wide open under cold-weather conditions or heavy chassis twisting. Utilizing an adjustable, electronic heat gun allows you to precisely dial in the exact activation temperature required to flow the internal glue cleanly without damaging the external polyolefin shield. Taking your time to monitor the shrinking action guarantees a uniform, factory-quality seal every single time.

Commercial-Grade Infrastructure Defense for High-Current Systems

Your electrical system is only as reliable as its worst connection point. Skimping on basic insulation details leads to hidden wire rot, sudden voltage drops under full load, and hours of miserable troubleshooting in your driveway. If you want hardware built to survive high engine heat and brutal pathway vibrations, deploying premium protective gear is vital.

Investing in a high-caliber product line keeps corrosion out of your power lines permanently. The Selterm Heat Shrink Tubing Kit Collection delivers the exact environmental defense your heavy machinery demands. These kits feature pre-cut, heavy-wall polyolefin sleeves loaded with a high-performance internal adhesive lining. They take serious heat without tearing, shrinking down to form a rugged, commercial-grade shield over your terminals. Ditching thin retail wrap for specialized marine heat shrink tubing or heavy-duty industrial sleeves keeps your main power routes intact. Pair these protective sleeves with solid hex tooling and high-purity copper terminals for a clean, highly efficient power network that stays safe and moisture-free for years.
