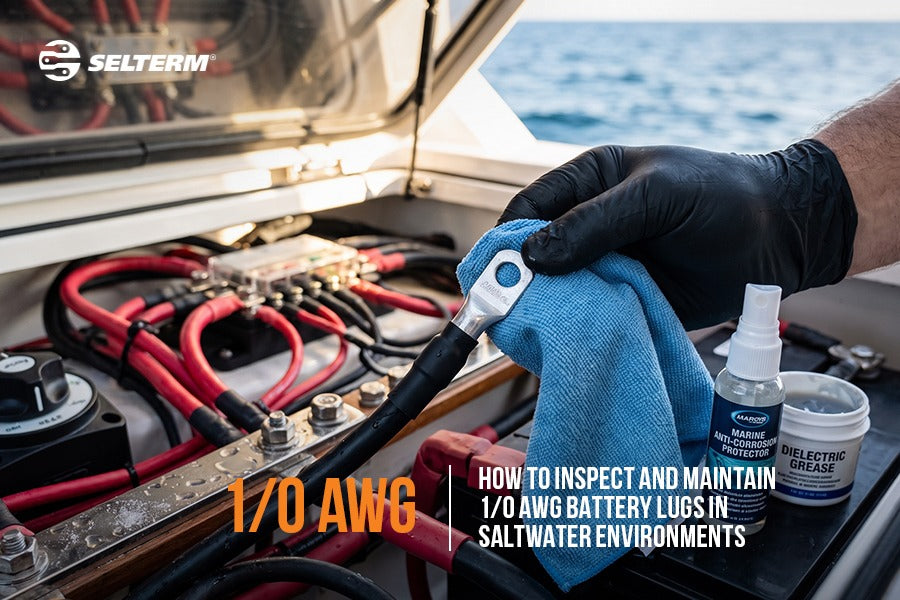

How to Inspect and Maintain 1/0 AWG Battery Lugs in Saltwater Environments

Leaving an electrical setup unprotected on an ocean-going boat is an absolute recipe for disaster. Saltwater is aggressively corrosive. The second raw copper or low-grade hardware faces high humidity and salt spray, a rapid chemical reaction takes over the metal, threatening total system failure.

On heavy-duty marine electrical networks, 1/0 AWG cabling serves as the main pipeline to deliver massive current. This thick wire runs directly to high-output alternators, primary battery banks, and high-draw windlasses or bow thrusters. At this scale, you are moving serious electrical juice. Any weak contact point along the line acts like a bottleneck, starving your gear of voltage and turning the connection into a dangerous hotspot. Running a dedicated 1/0 awg tinned lug setup is a non-negotiable safety choice for offshore boats.

The Chemical Rot Eating Your Marine Current

Look at the generic electrical connectors sitting in discount retail bulk bins. Most of those cheap options are stamped out of thin brass sheet metal or cast from brittle zinc blends with nothing but a flash cosmetic finish on the outside. They easily snap under actual mechanical torque. The second you apply real force with a professional hydraulic crimper, those cheap options split wide open down the seam or crack across the mounting pad. Even if they survive the initial installation without cracking, their actual electrical conductivity is poor compared to pure copper.

Boat engine rooms and bilge spaces are brutal on hardware. Continuous wave impact rattles the entire hull, while engine temperatures swing wildly inside enclosed compartments. Thin retail terminals loosen under this constant physical shaking. The mechanical contact point breaks down, internal resistance shoots through the roof, and the resulting voltage drops can freeze your navigation gear or leave your starter motor clicking. Replacing flimsy retail terminals with a reliable 0 gauge tinned lug configuration prevents hidden oxidation from destroying your cable strands from the inside out.

Why Pure Copper Needs an Electroplated Tin Barrier

Long-term ocean reliability relies entirely on the quality of the underlying metal. High-load marine networks demand connections built from seamless C11000 electrolytic copper. This pure grade provides the highest possible electrical and thermal performance. Because pure copper is soft and workable, it deforms uniformly under intense tool pressure.

A seamless 1/0 awg tinned copper lugs barrel flows completely around the flexible wire strands instead of splitting open down a weak side seam. This uniform compression fuses the wire and the connector into one solid block of copper with zero hidden air pockets inside. However, raw, bare copper oxidizes the moment it hits damp, salty air, developing an ugly green crust that destroys electrical conductivity. An electroplated tin finish stops that damage before it starts. Tin completely ignores moisture, salt spray, and battery acids. A micro-thin layer of tin completely wraps the raw copper core to form an airtight barrier. This plating keeps the underlying copper fully isolated so your high-amperage connections maintain their raw current-carrying capacity for years.

Solder Flaws vs. Mechanical Crimping on Open Water

An old dockside repair trick that consistently ruins heavy boat wiring is using a propane torch and liquid solder to secure heavy cable connectors. Solder creates a clean-looking joint initially, but professional marine electrical standards ban the process for high-vibration applications. As heat melts the solder into the terminal barrel, capillary action draws the liquid metal straight up the flexible stranded wire past the lug entry. Once cooled, the solder hardens, turning a flexible marine cable into a stiff, solid metal rod.

Boats bash against waves and shake constantly. All that mechanical stress concentrates directly at the exact spot where the flexible wire insulation meets that rock-hard, soldered section. Over time, individual copper wire strands suffer from metal fatigue and snap clean off right at the back of the terminal barrel. The industry standard for compliance is a gas-tight mechanical crimp. Forcing the barrel to compress uniformly from six sides cold-welds the wire strands directly to the inner walls, sealing out all air so interior salt rot cannot start.

The High-Amperage Marine Crimp Process

1. Strip It to Bare, Bright Copper: Do not ever crimp over dark, corroded, or greasy wire strands. If the cable has been sitting around a damp bilge, chop the bad ends off until you hit clean, bright metal. If it still looks a little dull, scrub the strands aggressively with a stainless steel wire brush. You want that copper shining before it goes anywhere near the barrel.
2. Check Your Depth: Slide the wire jacket back to match the depth of the lug barrel. Shove the wire all the way in until copper strands pack tightly against the inspection window. The leftover insulation jacket needs to sit flush against the back of the barrel—keep any gap under a sixteenth of an inch.
3. Use the Right Hex Die: Match your wire gauge exactly to the die on your crimping tool. No guessing here. Use a solid hydraulic or manual hex tool to crush the barrel completely. Let the tool go through its full mechanical cycle so it cold-welds the strands and terminal walls into a single, solid chunk of copper.
4. Bury the Joint in Glue-Lined Heat Shrink: Slide a piece of heavy-wall, 3:1 adhesive-lined heat shrink directly over the raw metal connection and hit it with a heat gun. Wait until the internal glue melts and squirt out around the bottom edges of the tubing. That squeezed-out glue is your proof—it creates a permanent, waterproof seal that stops road salt, pooling water, and engine grease from rotting your wires over time.

High-Amperage Circuit Testing Protocols

Isolating hidden resistance in an ocean environment requires active electrical diagnostic tracking. Instead of relying solely on visual checks, marine mechanics check total circuit voltage drop while the distribution system functions under maximum operational load. By running high-draw accessories like a windlass or starter motor, a digital multimeter can check the tiny drop across the terminal pads to isolate failing internal metal strands before they cause a complete block meltdown.

When a connection shows a sudden thermal spike or high voltage resistance, the terminal must be replaced entirely rather than attempting to clean out internal salt crust. Forcing deep-set corrosion out of a deformed barrel is impossible once environmental rot takes hold. Cutting the cable path back to clean, untarnished copper wire strands and executing a complete mechanical hex compression is the only way to safeguard continuous electrical paths against severe open-water conditions.

Premium Open-Water Power Infrastructure

Your boat's entire electrical performance relies on its worst connection point. Skimping on basic wire ends leads to sudden power drops, dead accessories, and hours of miserable diagnostic work out on the water. If you want hardware built to actually survive extreme engine room heat and brutal open-water vibrations, check out the heavy-duty, seamless choices over at the Selterm 1/0 AWG Tinned Copper Lugs Collection.

Swapping out old, sketchy factory ends for premium copper hardware stops resistance buildup and voltage drops right in their tracks. Pairing a heavy-duty 1 0 awg tinned lug with solid hex tooling and a proper piece of adhesive-lined heat shrink builds a cool-running, highly efficient marine power infrastructure. Investing in thick-walled, heavy-duty endpoints keeps your electrical grid running completely cool and engineered to work flawlessly every single time for years.
