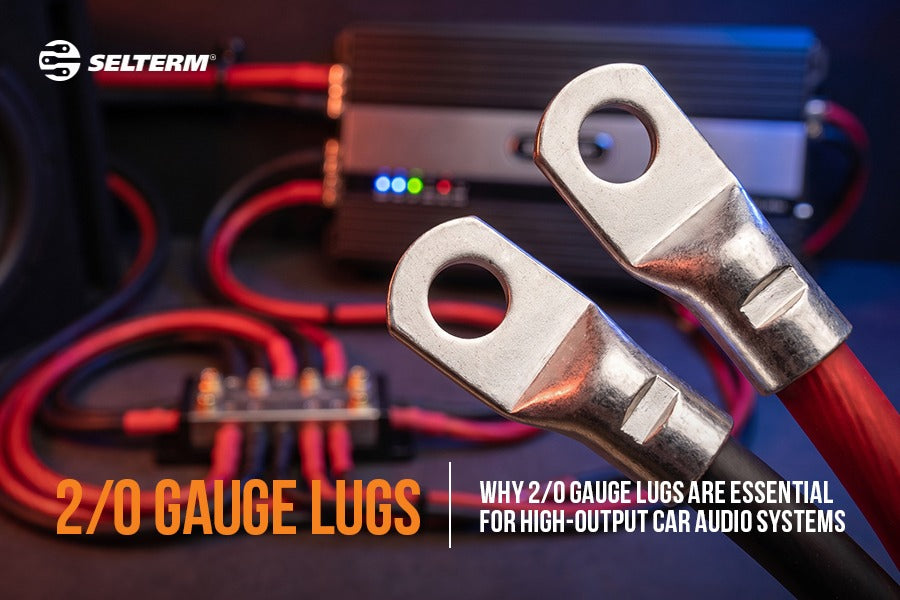

Why 2/0 Gauge Lugs are Essential for High-Output Car Audio Systems

Building a high-performance car audio setup with thin factory power lines is an absolute recipe for disaster. Attempting to run multiple competition-grade amplifiers, secondary battery banks, or high-output alternators on basic retail power kits will cause you to hit an electrical wall immediately. At this tier of performance, audio amplifiers require massive surges of clean current to reproduce violent sub-bass transients without clipping or shutting down.

Thick 2/0 AWG (also known as 00 gauge) cabling serves as the main pipeline to deliver that immense power throughout your vehicle. However, a massive cable is only as good as the hardware clamping it down. Flimsy metal ends on your main power lines render even the most powerful alternator useless because current simply cannot bridge the gap efficiently. Investing in solid, high-purity 2/0 gauge lugs ensures your amplifiers draw unrestricted current under full volume loads, preventing destructive voltage drops.

The Trap of Cosmetic Retail Connectors and Structural Failures

Look at the flashy, gold-plated connectors sitting in bulk bins at big-box car audio shops. Most of those generic retail options are cast from brittle zinc alloys or thin brass sheets with nothing but a cosmetic coating on the outside. They easily snap or warp under actual mechanical torque. The second you tighten a mounting nut on a battery post or fuse block, those cheap cast terminals split open across the flat pad or crack along the barrel seam.

Vehicle engine compartments and trunks are brutal environments for heavy-duty power gear. Intense vibrations from heavy subwoofers shake the entire chassis, while under-hood heat cooks surrounding components. Mismatched or thin retail terminals loosen up under this constant physical shaking. The mechanical contact point breaks down, internal resistance shoots through the roof, and the resulting voltage drops starve your expensive monoblock amplifiers. Running a dedicated 2/0 awg cable lugs setup is your primary defense against sudden charging system failure and localized thermal damage.

Why Pure Copper Substrate Eliminates Internal Resistance

Long-term audio performance depends entirely on the quality of the underlying metal. High-current vehicular networks demand connections built from seamless C11000 electrolytic copper. This pure grade provides the highest possible electrical and thermal performance. Because pure copper is naturally soft and workable, it deforms uniformly under intense hydraulic tool pressure without work-hardening or cracking.

A seamless 2/0 awg lugs barrel flows completely around the flexible, dense wire strands instead of splitting open down a weak side seam. This compression fuses the wire and the connector into one solid block of metal with zero hidden air pockets inside. Slapping a thin, cosmetic finish over cheap brass or zinc alloy won't save a terminal from failing. True longevity in harsh, high-vibration automotive environments requires starting with heavy-duty, thick-walled pure copper that can handle an absolute cold-weld crush.

Solder Flaws and the Complete High-Amperage Crimp Process

An old-school workshop repair trick that consistently ruins heavy vehicle wiring is using a propane torch and solder to secure heavy cable connectors. Solder creates a clean-looking joint initially, but professional industrial and automotive electrical standards ban the process for high-vibration applications. As heat melts the solder into the terminal barrel, capillary action draws the liquid metal straight up the flexible stranded wire past the lug entry. Once cooled, the solder hardens, turning a flexible power cable into a stiff, solid metal rod.

Chassis bounce and heavy bass notes vibrate vehicles constantly. All that mechanical stress concentrates directly at the exact spot where the flexible wire insulation meets that rock-hard, soldered section. Over time, individual copper wire strands suffer from intense metal fatigue and snap clean off right at the back of the terminal barrel. The modern standard for a rock-solid circuit is a gas-tight mechanical crimp using a dedicated 00 gauge battery lugs connection.

• Strip It to Bare, Bright Copper: Do not ever crimp over dark, corroded, or greasy wire strands. If the cable has been sitting around a damp shop, chop the bad ends off until you hit clean, bright metal. Grab a stainless steel wire brush and scrub the strands aggressively. You want that copper shining before it goes anywhere near the barrel.
• Check Your Depth: Slide the wire jacket back to match the depth of the lug barrel. Shove the wire all the way in until copper strands pack tightly against the inspection window. The leftover insulation jacket needs to sit flush against the back of the barrel—keep any gap under a sixteenth of an inch.
• Use the Right Hex Die: Match your wire gauge exactly to the die on your crimping tool. No guessing here. Use a solid hydraulic or manual hex tool to crush the barrel completely. Let the tool go through its full mechanical cycle so it cold-welds the strands and terminal walls into a single, solid chunk of copper.
• Bury the Joint in Glue-Lined Heat Shrink: Slide a piece of heavy-wall, 3:1 adhesive-lined heat shrink directly over the raw metal connection and hit it with a heat gun. Wait until the internal glue melts and squirts out around the bottom edges of the tubing. That squeezed-out glue is your proof—it creates a permanent, waterproof seal that stops road salt, pooling water, and engine grease from rotting your wires over time.

Maximizing Current Delivery and System Longevity

Your system's entire electrical performance relies on its worst connection point. Skimping on basic wire ends leads to sudden power drops, dead accessories, and hours of miserable diagnostic work in your driveway. If you want hardware built to actually survive high engine bay heat and brutal vibrations, look for heavy-duty components stamped out of 99.9% pure annealed copper tubes. This specific metal choice gives you an even, massive crush under heavy tool pressure and max conductivity. Swapping out old, sketchy factory ends for premium 2/0 gauge lugs stops resistance buildup and voltage drops right in their tracks, creating a cool-running, highly efficient vehicle power setup that fires up your sound system flawlessly every single time.
