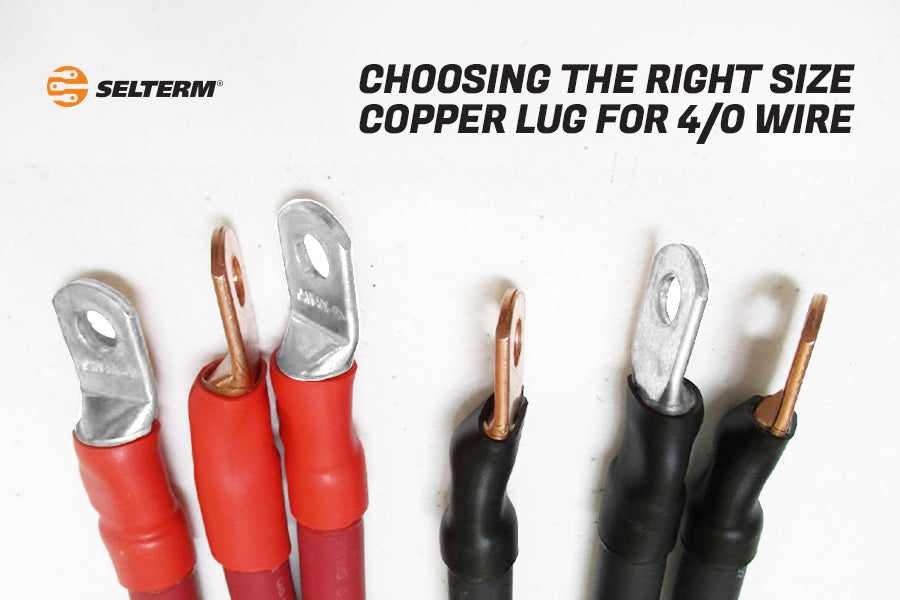

Choosing the Right Size Copper Lug for 4/0 Wire
When it comes to electrical installations, ensuring proper connectivity is paramount for both safety and efficiency. One critical component in many electrical systems is the copper lug, which serves as a connection point between wires and electrical equipment. For 4/0 gauge wire, selecting the correct copper lug size lug such as 4 0 AWG lug is essential to maintain a reliable and safe connection. This guide will walk you through the factors to consider when choosing the right size copper lug for 4/0 wire.
Understanding Copper Lugs and 4/0 Wire
Copper lugs are mechanical connectors made of high-conductivity copper, designed to connect large gauge wires to terminals, busbars, or other wires. They are widely used in industrial, commercial, and residential electrical systems, particularly where high currents are involved. The 4 0 AWG lugs are typically crimped or bolted onto the wire and come in various shapes and sizes to suit different applications.
4/0 wire, also referred to as 0000 AWG, is a large-diameter wire commonly used in heavy-duty applications like power distribution, grounding, and battery connections. Its high ampacity makes it suitable for applications that require efficient current flow with minimal voltage drop.
Factors to Consider When Choosing a Copper Lug
1. Wire Gauge Compatibility
The most crucial factor is ensuring the lug is compatible with the 4/0 wire gauge. Copper lugs are labeled to indicate the wire sizes they accommodate. For 4/0 wire, the lug should explicitly state compatibility with 4/0 AWG. Using a lug designed for a smaller or larger gauge can result in poor connections, overheating, and potential equipment failure.
2. Lug Barrel Size and Type
The barrel is the part of the 4 0 AWG Tinned lug that holds the wire. For 4/0 wire, the barrel must be large enough to accommodate the wire’s diameter, which is approximately 0.46 inches. There are two main types of barrels:
● Standard Barrel: These are suitable for most applications and provide a secure connection when crimped properly.
● Long Barrel: These are used in high-vibration or high-stress environments, as they offer additional crimping area for enhanced durability.
3. Material and Plating
4 0 AWG Tinned lug are generally made of pure electrolytic copper for excellent conductivity and corrosion resistance. Some lugs are tin-plated to further protect against oxidation, especially in environments exposed to moisture or chemicals. Tin-plated copper lugs are ideal for outdoor or marine applications where corrosion resistance is critical.
4. Hole Size and Configuration
The lug’s tongue—the flat portion with mounting holes—must align with the terminal or connection point. Consider the following:
● Hole Diameter: Ensure the hole matches the bolt size of the terminal or busbar. Common bolt sizes for 4/0 wire lugs include 3/8-inch and 1/2-inch.
● Hole Configuration: Single-hole lugs are standard, but double-hole lugs provide additional security in high-vibration environments by preventing rotation.
5. Crimping or Bolting Method
Copper lugs can be installed using crimping or bolting techniques. For 4/0 wire, crimping is the most common method and requires a compatible crimping tool to achieve a secure connection. Ensure the lug is compatible with your crimping tool’s die size.
Bolted lugs, also known as mechanical lugs, use screws or bolts to secure the wire in place. While convenient, they are generally less reliable than crimped connections for high-current applications.
6. Application Requirements
Consider the specific application when selecting a lug. For instance:
● Power Distribution: Use long-barrel, tin-plated lugs for durability and corrosion resistance.
● Battery Connections: Opt for heavy-duty lugs designed to handle frequent charging and discharging cycles.
● Grounding: Choose lugs with appropriate certifications for grounding applications.
Installation Tips for 4/0 Wire and Copper Lugs
1. Prepare the Wire
Strip the insulation from the end of the 4/0 wire, exposing enough conductor to fit into the lug barrel. Be careful not to nick or damage the strands, as this can weaken the connection.
2. Choose the Right Crimping Tool
Use a hydraulic or mechanical crimping tool designed for 4/0 wire and the specific lug type. Ensure the tool’s die is compatible with the 4/0 AWG Tinned Lug’s barrel size.
3. Crimp Securely
Place the lug and wire into the crimping tool and apply even pressure until the connection is secure. A properly crimped lug will have a tight fit and show a clear impression of the die.
4. Inspect the Connection
Check for proper alignment and ensure there are no loose strands. The wire should be firmly seated in the barrel, with no gaps or movement.
5. Apply Heat Shrink (Optional)
For added insulation and protection, apply heat shrink tubing over the 4/0 AWG Tinned Lug and wire connection. Heat it evenly to ensure a snug fit.
Why Proper Lug Selection Matters
Choosing the right size copper lug for 4/0 wire ensures:
● Efficient Current Flow: Minimizing resistance and voltage drop.
● Enhanced Safety: Reducing the risk of overheating, arcing, or fire.
● Longevity: Preventing corrosion and maintaining a durable connection over time.
Using an incorrect lug can compromise the entire electrical system, leading to costly repairs or hazardous conditions.
Conclusion
Selecting the right 4 0 AWG cable lug for 4/0 wire involves understanding wire compatibility, barrel size, material, hole configuration, and the specific application. By considering these factors and following proper installation techniques, you can ensure a safe and efficient electrical connection. Investing in quality 4 0 AWG cable lug and tools is a small price to pay for the reliability and longevity of your electrical system.
