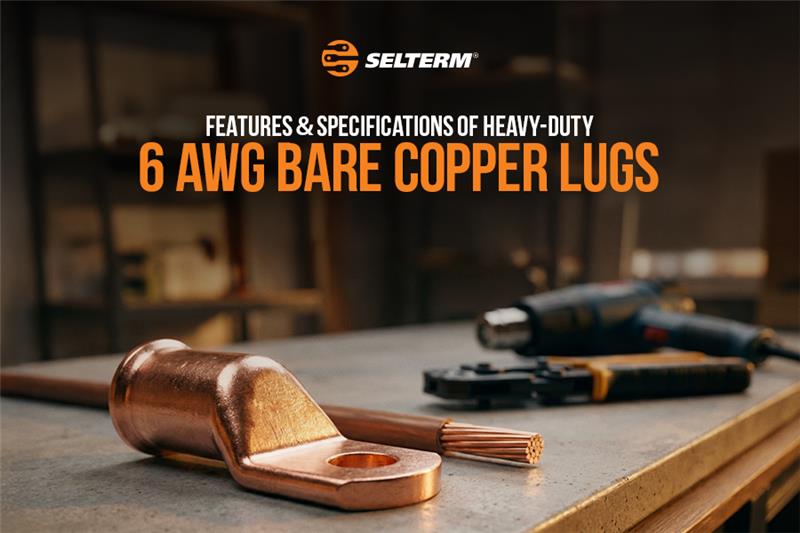

Features & Specifications of Heavy-Duty 6 AWG Bare Copper Lugs

When you’re building or upgrading a power system, every part counts—right down to the cable lugs. A 6 gauge wire lug may look small, but it has a big job: keeping current flowing safely and efficiently through your setup. Whether you’re working on automotive wiring, solar installations, marine systems, or industrial equipment, the right 6 AWG lugs help you get a secure, low-resistance, and long-lasting connection.

In this guide, we break down everything you need to know about heavy-duty 6 AWG battery lugs also known as 6 gauge wire lugs or 6 AWG wire lugs from materials and build quality to stud sizes, current capacity, crimping compatibility, and how to choose the right option for your project.

Why 6 AWG Wire Lugs Matter in High-Demand Applications

Six-gauge copper conductors sit in the sweet spot for many medium-to-high power systems. They can carry a strong current without being too bulky to work with. But that performance only shows when the termination is built well.

A heavy-duty 6 gauge wire lug ensures:

• Smooth power transfer with minimal resistance
• Better heat control, even during high current draw
• A stable connection that won’t loosen under vibration
• Protection against corrosion and long-term wear

A weak or low-quality lug does the opposite, creating hot spots, voltage drop, and in worst cases, system failure. That’s why construction quality matters.

1. Material: Why Bare Copper Is the Ideal Choice

Most 6 AWG lugs designed for professional use are made from 99.9% pure copper. This isn't just a material choice—it's an electrical advantage.

Benefits of bare copper 6 AWG battery lugs:

• Highest conductivity among commonly used metals
• Efficient current transfer, reducing energy loss
• Reliable crimping strength without cracking
• Better heat dissipation for stable performance
• Compatible with most copper wiring standards

Pure copper also works smoothly with heat shrink, giving you a tight, clean finish once the connection is sealed.

2. Build Quality: What Makes a 6 Gauge Wire Lug “Heavy Duty”

Not all lugs marked as heavy-duty are engineered the same way. True heavy-duty 6 AWG battery lugs offer a combination of strength, durability, and precise manufacturing.

Here’s what to expect:

Thick-walled construction

A thicker barrel increases the contact area with the conductor. This improves current flow and prevents the lug from deforming under a strong crimp.

Seamless tube design

A seamless 6 gauge wire lug barrel eliminates weak points. It also ensures consistent compression during crimping, which is key for long-term reliability.

Wide, sturdy palm

A strong tongue allows secure mounting on battery posts, grounding studs, or power distribution blocks.

Flared barrel

The flared entry helps you insert the wire quickly and ensures strands don’t bend or fray.

Each of these features plays a part in creating a stable, vibration-resistant connection.

3. Stud Sizes for 6 AWG Lugs

Stud size is one of the most important specs to check when buying 6 gauge wire lugs. The most common sizes available are:

• #10
• 1/4 inch
• 5/16 inch
• 3/8 inch

Your choice depends on what the lug will mount to—batteries, fuse blocks, grounding points, inverters, switchgear, or distribution panels.

Using the correct stud size eliminates gaps, prevents shifting, and ensures full contact between the lug and the terminal surface.

4. Current Capacity of 6 AWG Lugs

A proper 6 AWG copper conductor typically handles up to 65–75 amps depending on environmental conditions and insulation type. The lug itself must match that performance.

A heavy-duty 6 gauge wire lug enhances this by:

• Lowering resistance across the termination
• Preventing heat build-up under load
• Keeping performance consistent even in demanding setups

This makes 6 gauge lug suitable for:

• Automotive starters
• RV power systems
• Marine batteries
• Solar charge controllers
• Inverters and DC distribution
• Industrial control systems
• Off-grid battery banks

Wherever the load is steady or high, a solid termination is essential.

5. Crimp Compatibility

Heavy-duty 6 AWG lugs are designed for secure crimping. They work well with:

• Hex crimpers
• Hydraulic crimpers
• Hammer-style crimp tools
• Mechanical compression tools

A properly crimped 6 gauge wire lug should have:

• A firm grip on the copper strands
• No exposed gaps
• A smooth outer compression pattern
• No cracks or splitting

Pairing the right tool with the right lug ensures that the connection is both mechanically strong and electrically safe.

6. Corrosion Resistance: Why It Matters

Even though bare copper isn’t plated, it naturally forms a protective oxide layer. A high-quality 6 gauge wire lug enhances corrosion resistance with:

• Precision manufacturing
• Smooth barrel interior
• Snug post-crimp sealing with heat shrink

In marine, industrial, and outdoor setups, finishing the lug with heat shrink tubing helps seal out moisture and contaminants.

7. Dimensions and Fit: What Specs Should You Check?

When choosing 6 AWG wire lugs, review these key measurements:

• Barrel length – affects crimp strength
• Palm width – affects mounting compatibility
• Hole diameter – must match stud size
• Overall length – determines reach and placement
• Wall thickness – indicates durability

These numbers vary slightly across applications, so always match the lug to your wire and hardware.

8. Where 6 AWG Lugs Are Most Commonly Used

These 6 AWG battery lugs are widely used because they strike a balance between strength and flexibility. Common uses include:

• Automotive wiring upgrades
• Winches and off-road accessories
• Solar energy systems
• Lithium battery connections
• Boat and RV electrical systems
• UPS and inverter wiring
• Generator setups

Whenever you’re working with direct current or high demand loads, the quality of the termination makes a measurable difference.

A Small Component That Delivers Big Performance

A heavy-duty 6 AWG lug may appear like a small, simple part, but it’s responsible for keeping your power system stable and safe. Built with pure copper, a thick-walled barrel, strong crimping performance, and multiple stud size options, it ensures consistent, dependable electrical flow in a wide range of applications.

If you’re looking for durable, well-engineered options that meet industry standards, check out Selterm’s selection of 6 AWG battery lugs. Every piece is designed for reliable performance, whether your setup faces everyday use or more demanding conditions.
