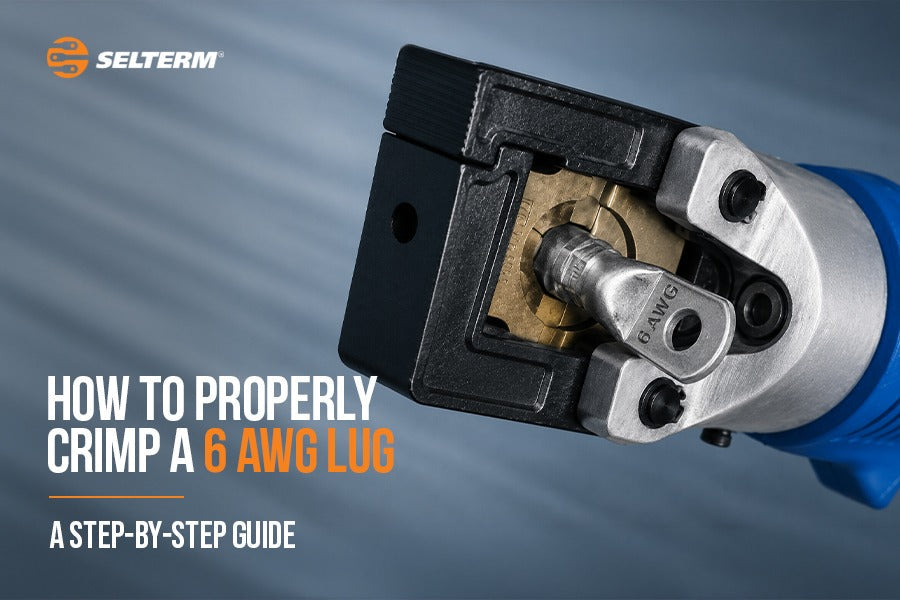

How to Properly Crimp a 6 AWG Lug: A Step-by-Step Guide

Wiring up a dual-battery setup on an off-road truck, routing power to an audio amplifier, or hooking up a marine trolling motor usually lands you right at a specific wire size: 6 AWG.

This gauge is a major turning point in electrical systems. It transitions away from thin, easily managed accessory wires into heavy-current delivery lines.

Because a 6-gauge wire moves significant electrical loads, you cannot just strip the jacket, twist the strands together, and hope for the best. The connection point is your primary point of vulnerability. You need an absolute metal-to-metal bridge that can handle high current without dropping voltage.

That means knowing exactly how to handle a 6 awg lug.

If that mechanical junction is loose or poorly executed, things go bad quickly. Resistance climbs, voltage drops, and the joint itself will get hot enough to char the wire insulation. When managing high-current power lines, a premium 6 awg terminal lug is the only thing keeping your electrical circuits running cool and safe under peak loads.

Why Cheap Automotive Connectors Fail the Field Test

Walk into any big-box auto parts store and look at the bulk electrical bins. You will find plenty of cheap terminal ends that look shiny on the rack.

They are a total trap.

Most of those unbranded retail connectors are cast from brittle zinc or low-grade brass scrap with a paper-thin copper flash plating on the outside. The exact second you apply real mechanical pressure with a crimper, those cheap alternatives split wide open down the barrel seam or crack near the pad. Even if you manage to install one without it breaking, the actual electrical conductivity is terrible compared to high-grade copper.

An engine bay or an outdoor equipment box is a hostile place for weak metal. Temperatures shift wildly from freezing winter air to scorching operational heat in a matter of minutes. This constant thermal cycling forces different metals to expand and contract at completely uneven rates.

Thin-walled retail terminals warp under this continuous stress. The mechanical grip on the wire relaxes, internal resistance spikes, and the whole joint starts to generate localized heat that ruins electrical harnesses.

The Metallurgy Behind a Gas-Tight Connection

To make a 6-gauge installation last for decades without requiring constant troubleshooting or maintenance calls, look at the baseline metal. Industrial-grade wiring relies exclusively on terminations manufactured from seamless C11000 electrolytic copper.

This pure grade of copper provides maximum electrical and thermal performance. Because pure copper is naturally soft and workable, it shapes uniformly when compressed under tons of pressure by a proper crimper.

Instead of cracking, the heavy copper barrel flows directly around the individual wire strands. This action fuses everything into a dense, solid block of copper with zero internal air pockets where moisture or road grime can hide.

Selecting the right finish for your 6 gauge wire lugs depends entirely on where you route the wires:

• Bare Copper Finish: This gives you the lowest possible contact resistance right out of the box. It works beautifully for dry truck cabins, trunk-mounted battery relocations, or sealed indoor electrical enclosures behind the dash. A quick dab of conductive paste helps bare copper handle normal interior humidity with zero issues.
• Tin-Plated Finish: If your 6-gauge lines run under a vehicle chassis, near wheel wells, or inside engine bays where rain and winter road salt spray everywhere, you need tinned copper. A micro-thin layer of tin completely coats the raw copper core, shielding the underlying metal from aggressive chemical corrosion and road slime. This protective plating keeps electrical resistance low for years.

Solder vs. Mechanical Crimping

An old-school garage method that still ruins tons of wiring systems is using a propane torch to solder a heavy 6 gauge terminal lug. Solder looks clean and shiny when you first melt it into place, but it is a terrible choice for anything that moves or vibrates.

As you heat up the terminal barrel, capillary action sucks that liquid solder right up past the metal barrel and deep into your flexible stranded wire. Once that solder cools down, it transforms your flexible cable into a rigid, brittle metal rod.

Engines shake constantly, and roads are full of potholes. All that shaking and mechanical stress targets the exact spot where your flexible rubber wire jacket meets that rock-hard soldered section. Over time, the copper wire strands fatigue and snap clean off right at the back of the lug barrel.

The universally accepted standard for industrial compliance is a gas-tight mechanical crimp. Squeezing the lug barrel from six sides simultaneously with a hex crimper cold-welds the wire strands directly to the inner lug walls, forcing out all air so internal oxidation cannot start.

Step-by-Step: Executing a Flawless 6 AWG Crimp

1. Prep the Cable to Bright Metal

Never crimp a new connector onto dark, dirty, or tarnished wire. If working with older power cable, cut the bad section back until you find clean, bright copper. If the strands look dull, scrub them thoroughly with a stainless-steel wire brush until they shine like new money before inserting them into the barrel. Never crimp over tarnished wire.

2. Strip and Verify Seating Depth

Strip your wire insulation jacket back to match the exact length of the lug barrel. Push the wire fully into the terminal until the copper strands show through the inspection window. You want the insulation jacket sitting flush against the back of the barrel entry with a gap under 1/16 of an inch.

3. Deploy the Correct Hex Crimp Tooling

Match your wire gauge size exactly to the right barrel die on your crimping tool. Do not guess or use a random size. Use a quality manual or hydraulic hex tool to crush the barrel completely. Let the tool finish its full mechanical cycle, fusing the strands and the terminal walls into one seamless chunk of copper.

4. Seal It Up with Adhesive Heat Shrink

Slide a piece of heavy-wall, adhesive-lined 3:1 heat shrink tubing over the finished joint. When you hit it with a heat gun, the internal glue melts and squirts out the edges. This creates a permanent waterproof boot that completely locks out road salt, water, engine oil, and acid fumes.

Infrastructure Built for the Real World

Your electrical power system is only as reliable as its weakest connection point. Cutting corners on small termination components always costs more later in troubleshooting, dead components, or roadside failures.

The heavy-duty options available in the Selterm 6 AWG Collection are engineered specifically to handle the extreme temperatures and high vibrations found under heavy vehicle hoods. Manufactured from seamless copper tubes with heavy, precision-machined flat pads, these components accept maximum crimping loads without splitting or cracking apart.

Upgrading your wiring connections with premium 6 awg lugs eliminates the risk of resistance build-up, erratic voltage drops, and structural metal failures. Combining high-purity C11000 copper metallurgy with professional hexagonal tooling and a proper adhesive-lined heat shrink seal provides a cool-running, highly efficient power network that runs safely for decades.
