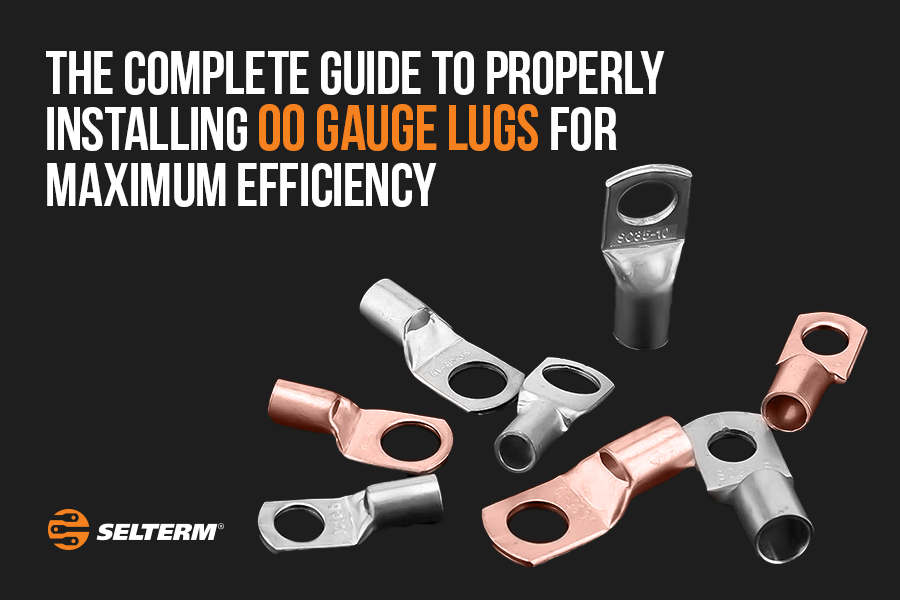

The Complete Guide to Properly Installing 00 Gauge Lugs for Maximum Efficiency

In high-current electrical applications, the smallest connection point can become the biggest bottleneck—or worse, the point of failure. That's why proper installation of 00 gauge lugs (also known as 2 0 AWG cable lugs) is critical to keeping your system safe, efficient, and long-lasting.

Whether you're setting up a battery bank, wiring a marine inverter, upgrading a vehicle’s power system, or managing an off-grid solar array, 2 0 gauge lugs play a vital role in maintaining electrical integrity. In this guide, we’ll break down what they are, why they matter, and how to install them for optimal results.

👉 Explore SELTERM’s 2/0 AWG Bare Copper Lugs

🧰 What Are 00 Gauge Lugs?

00 gauge lugs, also referred to as 2 0 gauge lugs, are heavy-duty connectors that allow large-gauge wires to be securely fastened to batteries, busbars, grounding systems, and high-amperage electrical components. Designed to handle significant electrical loads, these lugs create low-resistance connections that minimize energy loss and heat buildup.

When paired with 2 0 AWG cable, these lugs are ideal for:

  • Deep cycle battery banks (RV, marine, or solar)
  • High-current automotive wiring
  • Industrial equipment
  • Inverters and alternators
  • Backup power systems

⚡ Why Proper Installation Matters

While a lug may look like a simple piece of metal, its role is anything but minor. Improper installation of 2 0 gauge battery lugs can lead to:

  • Voltage drops due to poor conductivity
  • Overheating at the terminal point
  • Corrosion or failure over time
  • Electrical fires in worst-case scenarios

When installed correctly, however, 00 gauge lugs ensure a secure, high-conductivity connection that performs well under stress and over time.

🛠 Choosing the Right 2 0 Gauge Lugs

Before diving into the installation process, let’s talk about selecting the right 2 0 AWG cable lugs for your project.

✔️ Material

Always opt for pure copper lugs. For outdoor or marine applications, tinned copper lugs offer added protection against corrosion.

✔️ Barrel Type

Lugs come in standard or long-barrel options. Long-barrel lugs provide extra surface area for a stronger crimp and are ideal for high-vibration environments.

✔️ Closed-End vs. Open-End

  • Closed-end lugs protect against dust, moisture, and oxidation—perfect for marine and outdoor use.
  • Open-end lugs offer flexibility in tight or confined wiring spaces.

✔️ Stud Size

Make sure the stud hole on the lug matches the bolt or terminal you plan to use. Common sizes include 1/4", 5/16", and 3/8".

SELTERM’s 2 0 gauge lugs are UL-listed, made from 100% pure copper, and are available in a variety of stud sizes to suit any application.

👉 View All 00 Gauge Battery Lugs

🧑🔧 Tools You’ll Need

Installing 2 0 gauge lugs properly requires a few specialized tools:

  • Heavy-duty cable cutter
  • Cable stripper or utility knife
  • Hydraulic or hammer crimper (rated for 2/0 AWG)
  • Heat shrink tubing (preferably adhesive-lined)
  • Heat gun or torch

Optional for optimal performance:

  • Anti-oxidation compound
  • Multimeter to test connection quality

🔩 Step-by-Step Installation Guide

Step 1: Measure and Cut the Cable

Use a heavy-duty cutter to get a clean, straight edge on your 2 0 AWG cable. Frayed or angled cuts will make insertion into the lug difficult.

Step 2: Strip the Insulation

Strip about 1 inch of insulation from the end of the cable. Be careful not to nick or cut the copper strands beneath.

Pro Tip: Pre-twist the wire slightly to keep the strands compact and make insertion easier.

Step 3: Slide on Heat Shrink

Before crimping, slide your heat shrink tubing over the wire. This ensures you can seal the connection properly afterward.

Step 4: Insert the Cable into the Lug

Push the exposed copper into the 2 0 gauge lug until it bottoms out. The strands should be fully inside the barrel, with none sticking out.

Step 5: Crimp Securely

Use a hydraulic crimper or hammer crimper with the correct die size for 2/0 cable. Crimp once near the base and once near the middle of the barrel for extra strength.

Important: A weak crimp can create a hot spot that compromises the entire system.

Step 6: Apply Heat Shrink

Slide the tubing over the crimped connection and use a heat gun or torch to shrink it in place. Use adhesive-lined shrink tubing for a watertight, vibration-resistant seal.

Step 7: Test Your Connection

Use a multimeter to confirm a solid connection with minimal resistance. A poor crimp will show a noticeable voltage drop or fluctuation.

❌ Common Mistakes to Avoid

Even experienced installers can make small mistakes that lead to big problems:

  • Using the wrong lug size: Always match lug gauge with cable size.
  • Improper crimping: Don’t eyeball it—use the right tool and technique.
  • Skipping heat shrink: Leaves your connection vulnerable to corrosion.
  • Reusing old lugs: Recrimping used lugs can weaken the bond and introduce resistance.

🌟 Why Choose SELTERM’s 2 0 Gauge Lugs?

SELTERM’s 2 0 AWG cable lugs are designed for professionals who demand safety, efficiency, and durability.

Benefits:

  • ✅ 100% pure copper construction
  • ✅ Electro-tin plated for corrosion resistance
  • ✅ UL-listed and compliant with SAE & NEC standards
  • ✅ Chamfered barrel for easier cable insertion
  • ✅ Wide range of stud hole sizes

Each lug is engineered to deliver maximum conductivity while standing up to harsh environments—from engine bays to solar fields.

👉 Shop SELTERM 2/0 Gauge Battery Lugs

⚙️ Use Cases for 00 Gauge Lugs

2 0 gauge lugs are commonly used in:

  • RV battery systems and solar charge controllers
  • Marine battery banks and trolling motors
  • Industrial UPS setups
  • Automotive big-3 upgrades
  • Off-grid solar power storage

Their durability and high-current capabilities make them a go-to choice across industries.

🔚 Final Thoughts

In the world of electrical connectivity, the integrity of your system is only as strong as your weakest connection. Improperly installed 00 gauge battery lugs can lead to costly and dangerous failures. But with the right tools, techniques, and components—like those from SELTERM—you can ensure your 2/0 AWG connections are built to last.

Whether you're powering a cabin, outfitting a yacht, or upgrading a truck’s electrical system, quality installation of 2 0 gauge lugs ensures maximum efficiency, minimal resistance, and total peace of mind.
