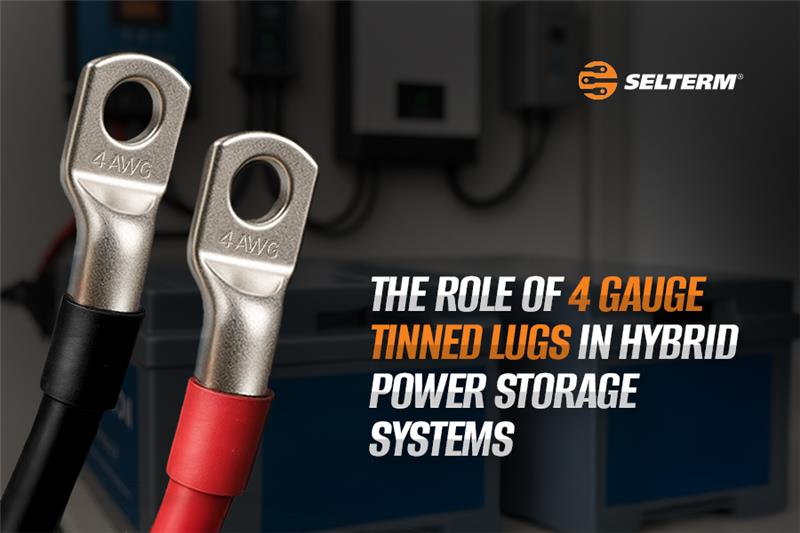

The Role of 4 Gauge Tinned Lugs in Hybrid Power Storage Systems
As the world continues to transition toward clean energy, hybrid power storage systems that blend solar, wind, or battery backup power sources are becoming more common in homes, RVs, and off-grid systems. While a lot of focus has been on solar panels, inverters, and battery systems as the main components of an energy system, what often goes unnoticed, behind the scenes, are the connectors that also have a role to play.
More specifically, the 4 gauge tinned copper lugs.
In this blog, we’ll break down what these lugs are, why they’re important in hybrid systems, and how they help maintain safety, efficiency, and long-term performance in demanding electrical environments.
What Is A 4 Gauge Tinned Copper Lug?
A 4 gauge (4 AWG) lug is designed to terminate a 4 gauge copper wire—4-gauge wire is commonly used in systems with a medium load, to a battery, bus bar, inverter, switch terminal.These lugs are made of pure copper for excellent conductivity and are coated with a layer of tin to prevent corrosion.
Selterm’s 4 AWG tinned lugs are:
- UL and CUL listed up to 600 volts
- Made from 99.9% pure copper
- Tin-plated per ASTM B545 standards
- Designed to withstand marine and outdoor environments
Whether you’re wiring a solar battery bank, a mobile backup power unit, or a wind/solar hybrid controller, these lugs ensure your connections remain solid and safe.
Why Hybrid Systems Demand Better Connections
Hybrid power systems frequently incorporate multiple sources of energy - solar panels, wind turbines, as well as a grid or backup generator - all connecting to a common battery bank or power storage system.
These systems come with unique challenges:
- High currents, especially during charge/discharge cycles
- Fluctuating voltage levels
- Outdoor and mobile installation conditions
- Constant exposure to temperature shifts, moisture, or vibration
A weak connection point (a corroded lug, for example) will have increased resistance, waste energy, result in heating, and may even introduce a fire hazard. That’s why 4 AWG tinned copper lugs are a smart, practical upgrade.
Key Benefits Of 4 AWG Tinned Lugs In Hybrid Systems
Here’s what makes these lugs a standout choice:
1. Corrosion Resistance
Outdoor and off-grid power systems are exposed to the elements. The tin plating on Selterm’s lugs acts as a shield, protecting the copper underneath from air, water, and salt exposure. This is especially critical in coastal areas, humid climates, or marine installations.
2. Improved Conductivity
The annealed copper core in each lug makes these lugs with low resistance and high conductivity, allowing more current to flow efficiently, extremely important when batteries are charged by renewable solar or wind sources and discharged later into an inverter or load center.
3. Strong, Vibration-Resistant Design
Vibration and movement are inevitable in any system in a shed, camper, van, or boat. Selterm's seamless barrel design and precise tux fitting ensure that the lugs hold tight all the time, and do not loosen or degrade.
4. UL Listed For Safety
Every Selterm 4 gauge tinned lug is UL and CUL listed, meaning they meet strict safety and performance standards. When dealing with high-current DC systems, this certification provides added peace of mind.
Real-World Use Cases For 4 AWG Tinned Lugs
If you’re wondering where and how these lugs fit into actual hybrid power storage systems, here are a few examples:
Home Solar + Battery Backup
In systems where solar panels charge a battery that powers appliances or feeds back to the grid, 4 AWG lugs are commonly used to connect batteries to inverters or combiner boxes.
Off-Grid Cabin Or Van Conversions
Mobile setups with solar + wind + generator backup often use 4 gauge wire for compact battery banks. Tinned lugs help maintain reliable connections in tight, mobile, or exposed spaces.
Emergency Power Systems
Hybrid backup setups that combine grid power with battery storage (for blackouts or storms) need durable connectors for safe switching and charging. Tinned lugs reduce the chances of voltage drop and power loss.
Installation Tips For DIYers And Installers
Selterm designs its products to be user-friendly, whether you’re an electrician or a weekend DIY enthusiast. Here are a few tips to ensure long-lasting connections:
- Use a proper crimping tool: For 4 AWG wire, a compressed hex or indent crimper will give you an excellent mechanical and electrical bond. Do not use pliers; they will not create enough pressure.
- Heat shrink your connections: Cover the lug and exposed wire in heat shrink tubing (ideally adhesive-lined). This does two things: it keeps moisture out and it makes for a clean finished look.
- Check wire compatibility: You should be using the correct wire size (copper, not aluminum) and the proper stud size. Selterm has lugs with stud hole sizes of 1/4", 5/16", and 3/8".
- Label and organize wires: Especially in complicated hybrid systems, it is very useful to label your wires for your future upgrades or problem-solving.
Why It Pays To Choose Quality From The Start
In a hybrid power system, details matter. You can buy the best batteries, panels, and inverters available - but if the connections are weak or corroded, your system’s performance and safety are compromised.
Selterm’s 4 awg tinned lug is a small upgrade that can save you time, energy, and frustration down the road. They’re reliable, easy to install, and built for real-world conditions.
Whether you're building a new system from scratch or upgrading an old one, choosing high-quality lugs is a smart move for the long haul.
Final Thoughts: Small Components, Big Impact
In hybrid power storage systems, every part matters, and reliable electrical connections are the foundation of long-term performance. While lugs may seem like a small detail, choosing the right ones can make the difference between a system that runs smoothly for years and one that struggles with resistance, heat, or failure.
The 4 gauge tinned copper lugs from Selterm provide strong, corrosion-resistant connections, no matter what type of application, be it a home backup system, off-grid cabin, or solar-powered vehicle. They are easy to install, durable, and used every day by professionals and DIYers alike.
When working with stored energy, there’s no room for weak links. Start with better connections. Choose Selterm.
