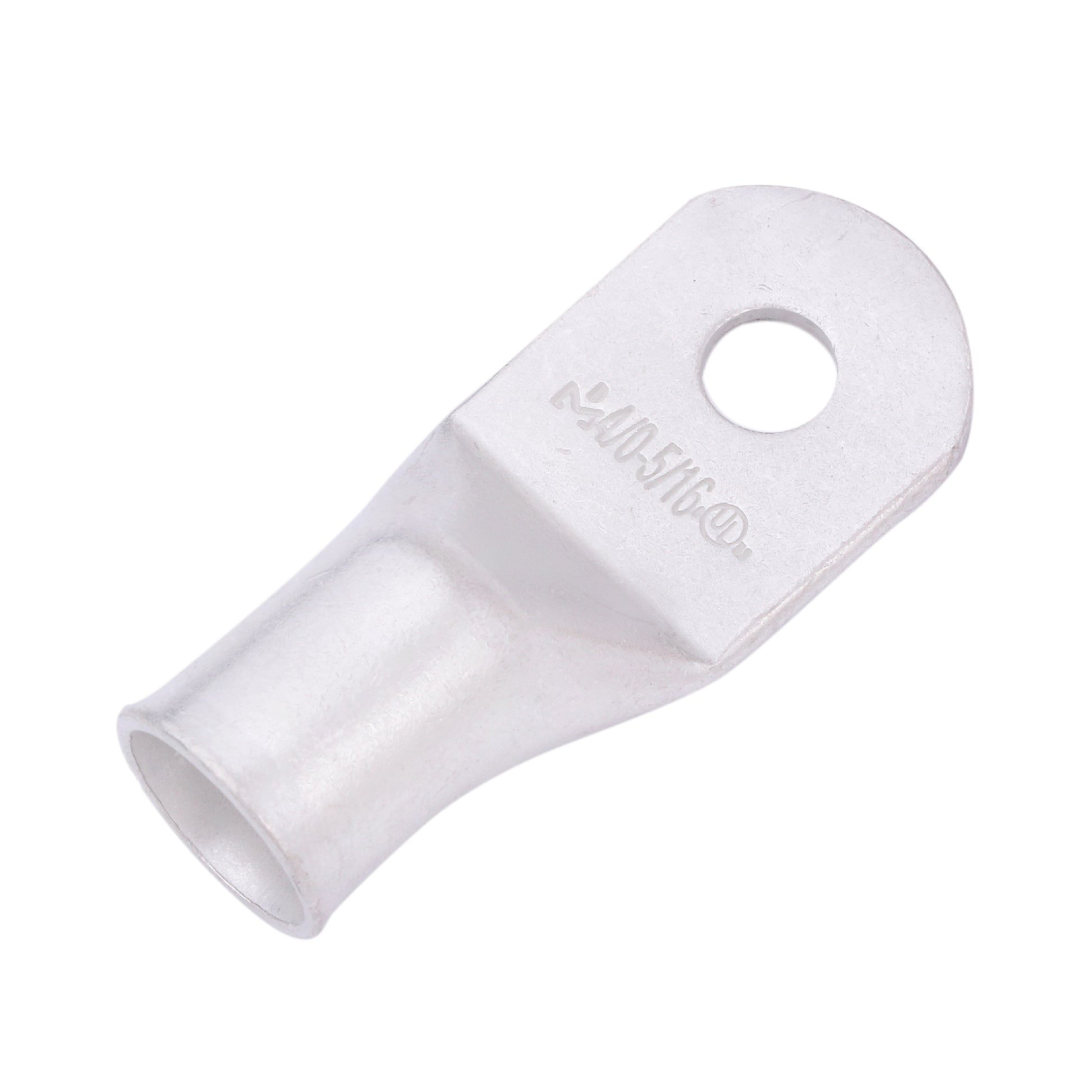

SELTERM Marine Grade Wire Lugs are made from 99.9% pure annealed tinned copper, providing a high degree of conductivity for maximum current flow. This particular variant is generally suitable for use with 4/0 or 0000 Gauge Battery Cable & 5/16" (M8) Stud.
Specifications
- Manufacturer part no. : MD4056P
- Wire gauge: 4/0 AWG (0000 Gauge)
- Stud size: 5/16" (M8)
- Pad width: Regular
- Barrel orientation: Straight
- Material: Copper
- Terminal type: Ring Terminal
- Insulation material: Non-Insulated
- Industry Standard: UL (File # E254830), SAE
- Voltage rating (VDC): 600
- Temperature rating (ºC): 90
- Max current (A): 405
Compliance
- RoHS: Compliant
- REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
- COO (Country of Origin): India
Competitor Part Cross-reference
- Molex: 192210412
- Quick Cable: 5958E
- ASK: 40516TP
- EMC: 40561-1
- FTZ: 91086
DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.
WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
