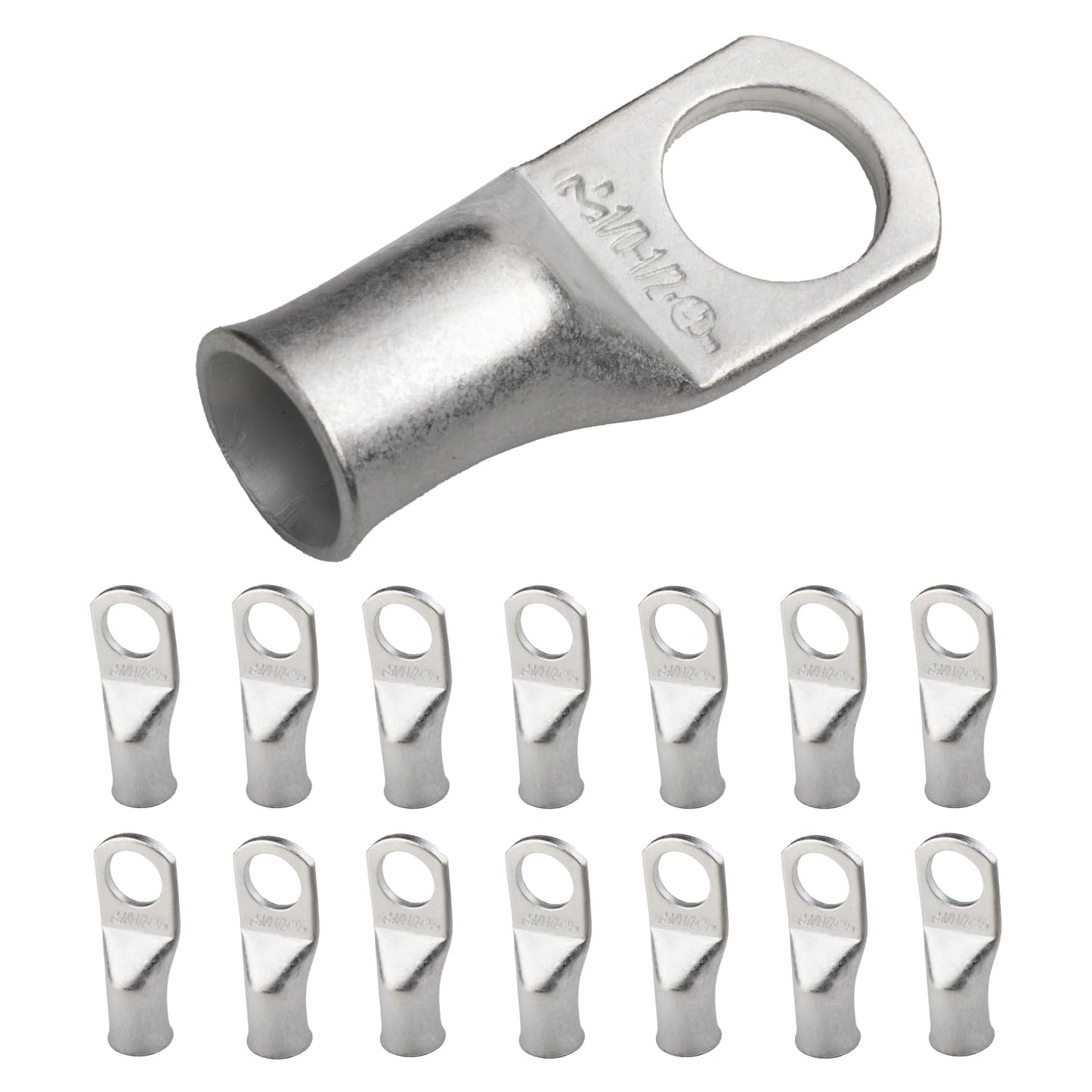

1/0 AWG, 1/2" Stud, Tinned Copper Battery Cable Ends, Wire Lugs, Marine Grade, MD1012P

$7.99 $8.77 Save $0.78

SKU: MDS1012P-2 UPC: 810038972015

Only 10 left!

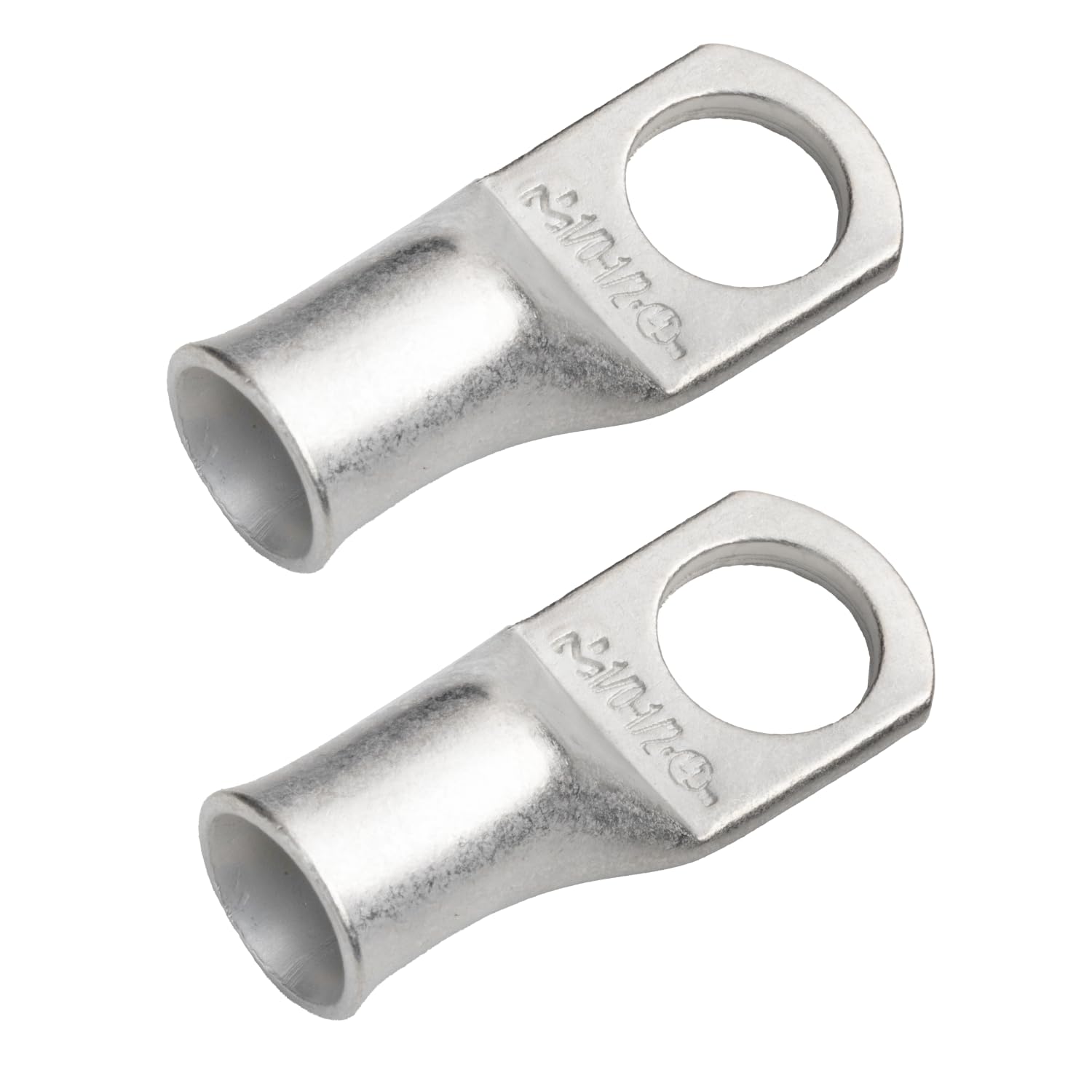

2 Pack

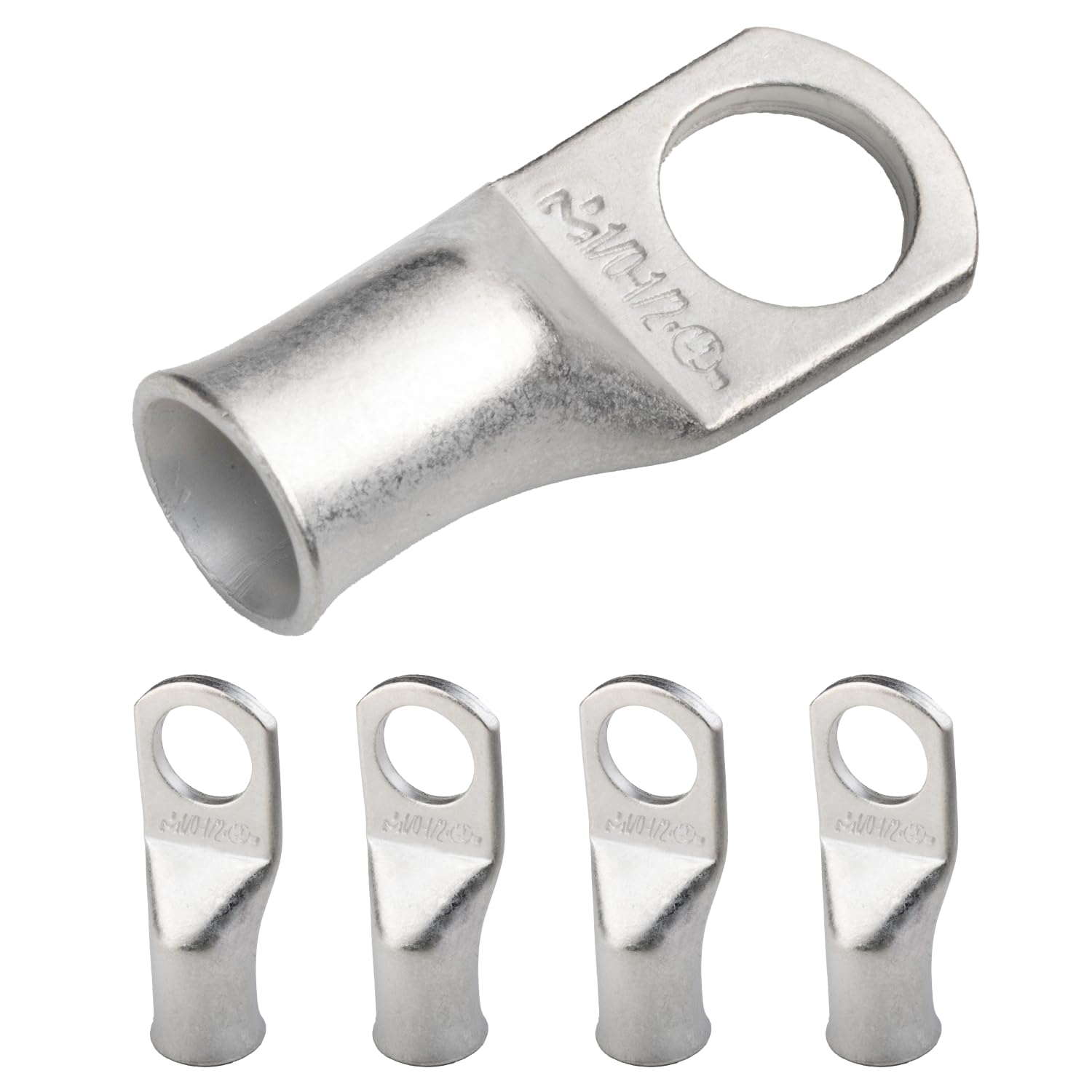

5 Pack
15 Pack

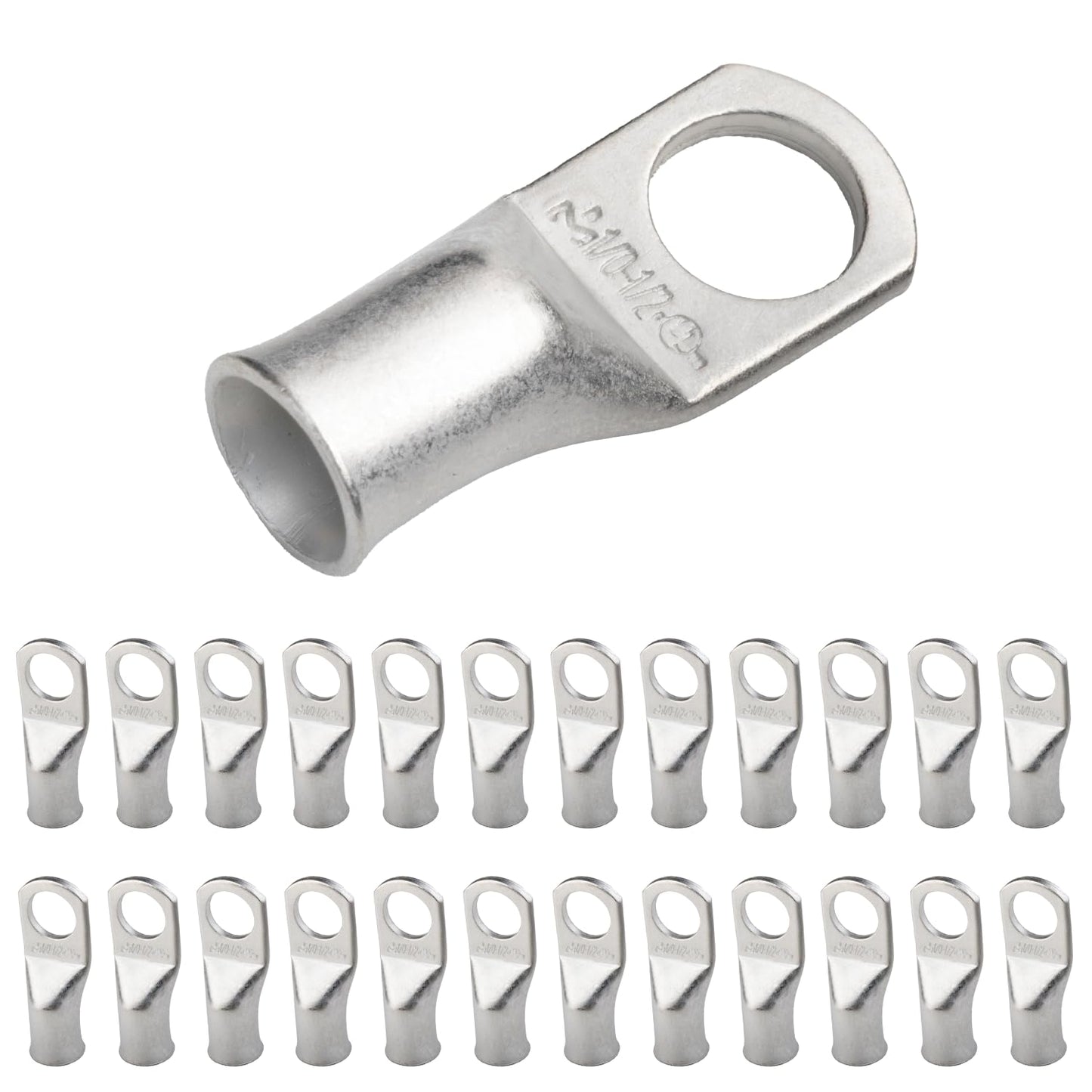

25 Pack

Free shipping on all orders

Free priority shipping on orders $99+

Contact us for Bulk Packaging

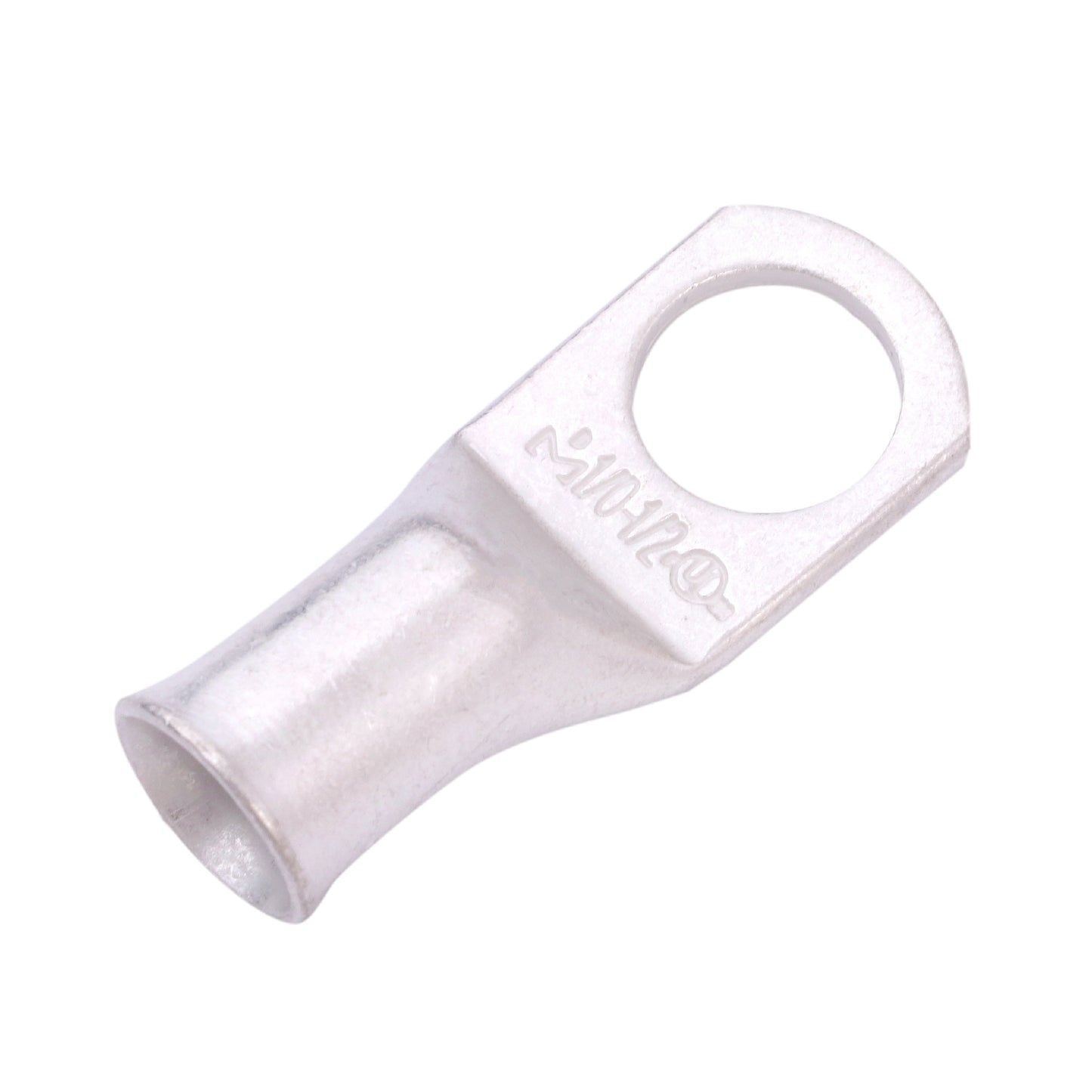

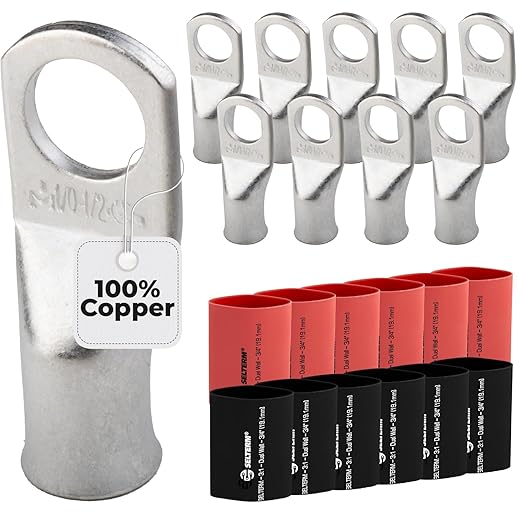

SELTERM Marine Grade Wire Lugs are made from 99.9% pure annealed tinned copper, providing a high degree of conductivity for maximum current flow. This particular variant is generally suitable for use with 1/0 or 0 Gauge Battery Cable & 1/2" (M12) Stud.

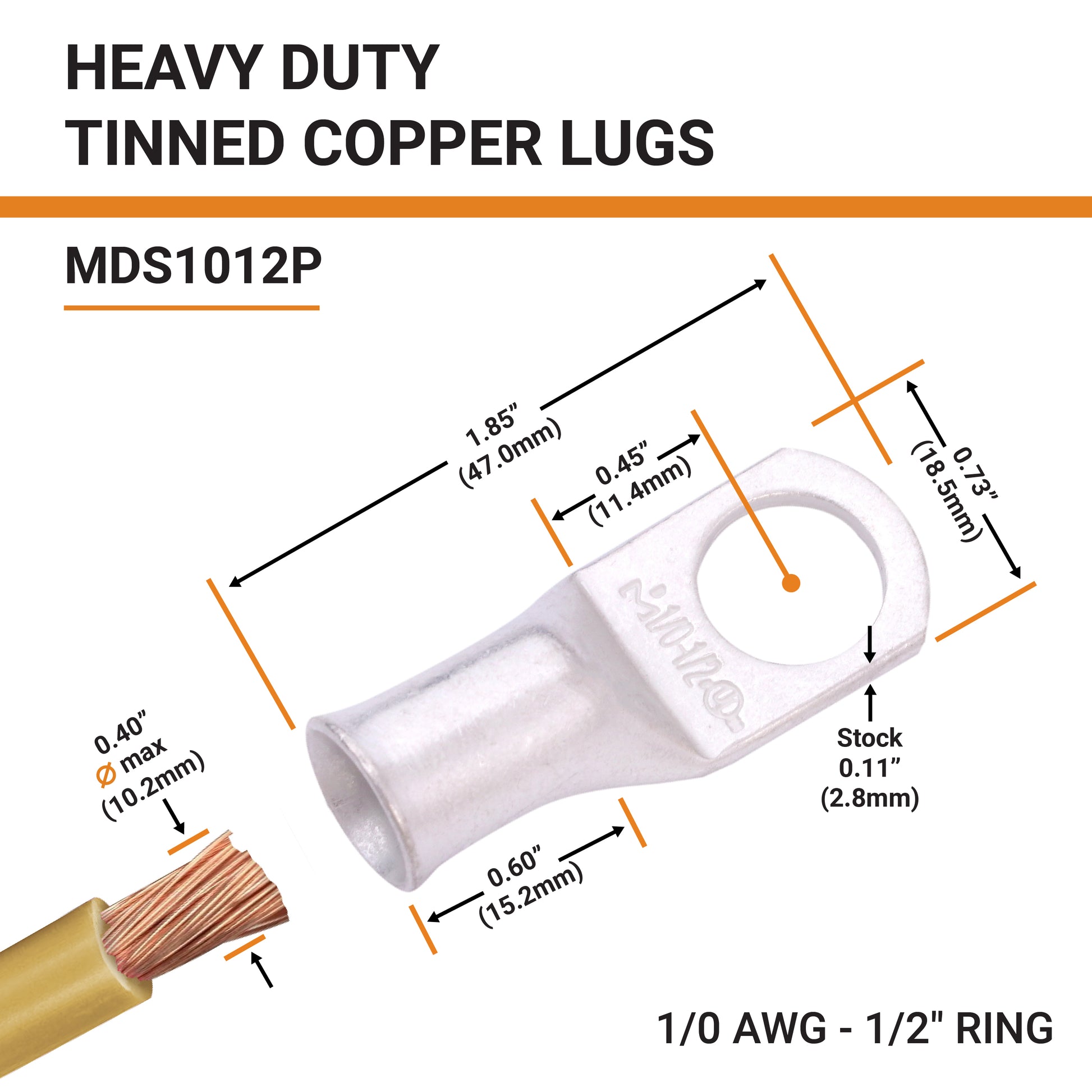

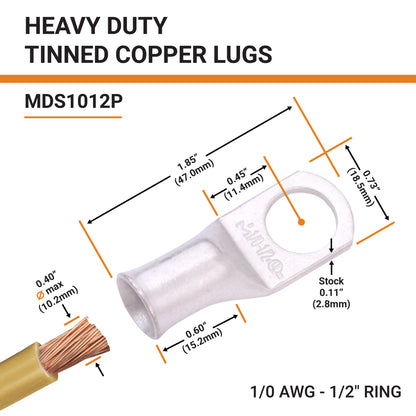

 Specifications

  • Manufacturer part no. : MD1012P
  • Wire gauge: 1/0 AWG (0 Gauge)
  • Stud size: 1/2" (M12)
  • Pad width: Regular
  • Barrel orientation: Straight
  • Material: Copper
  • Terminal type: Ring Terminal
  • Insulation material: Non-Insulated
  • Industry Standard: UL (File # E254830), SAE
  • Voltage rating (VDC): 600
  • Temperature rating (ºC): 90
  • Max current (A): 260

 Compliance

  • RoHS: Compliant
  • REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
  • COO (Country of Origin): India

 Competitor Part Cross-reference

  • Molex: 192210242
  • Quick Cable: -
  • ASK: 1012TP
  • EMC: 10501-1
  • FTZ: 91059

DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.

WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
