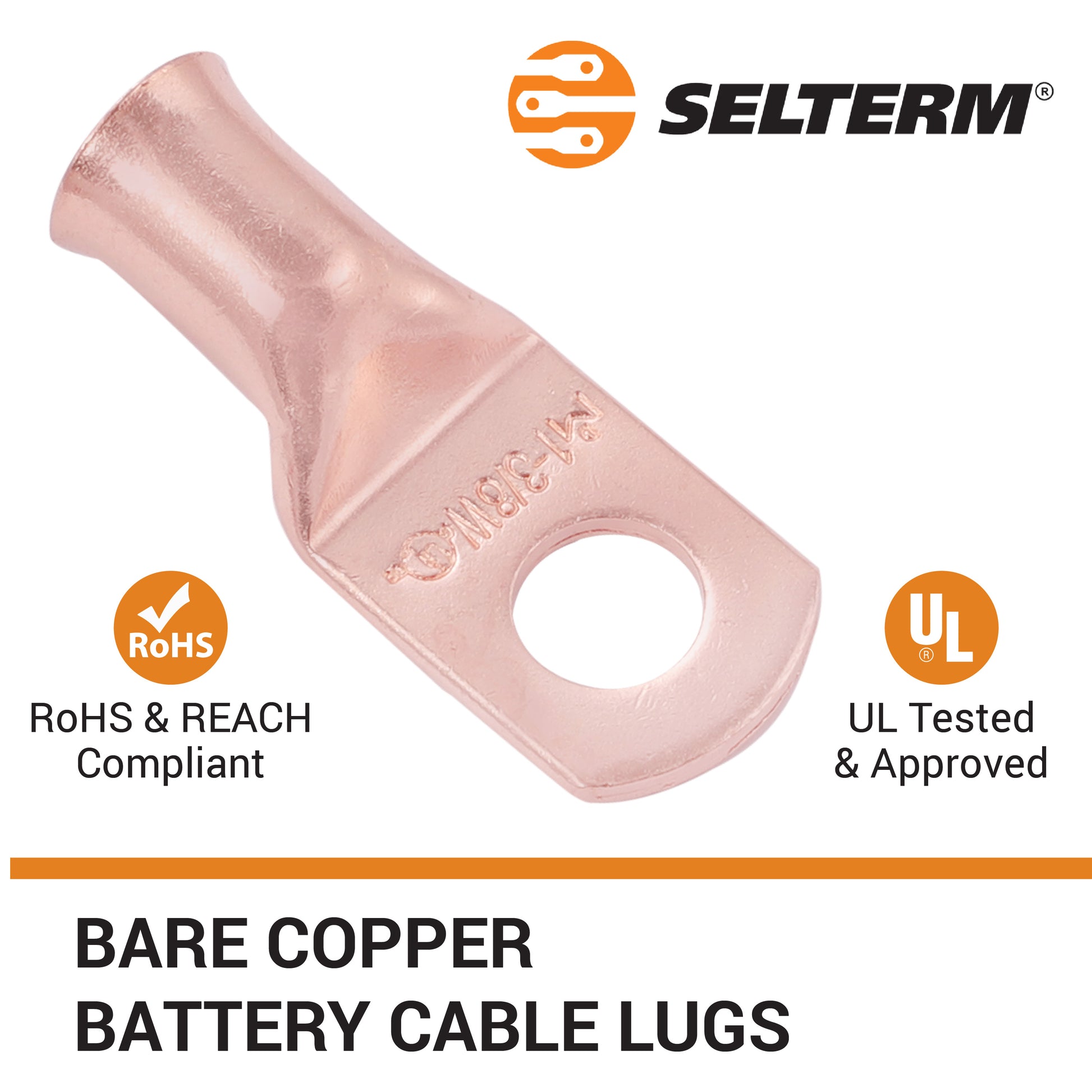

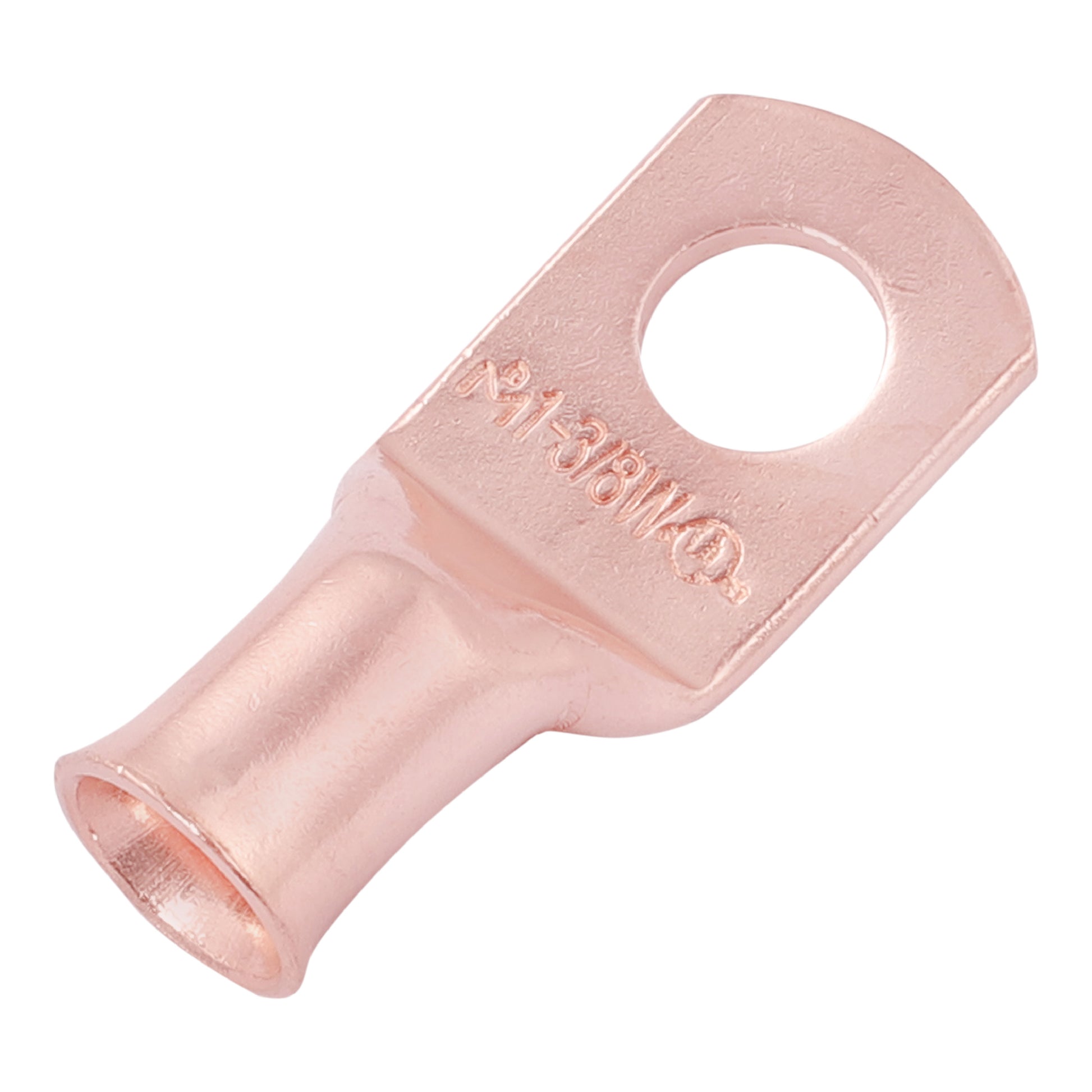

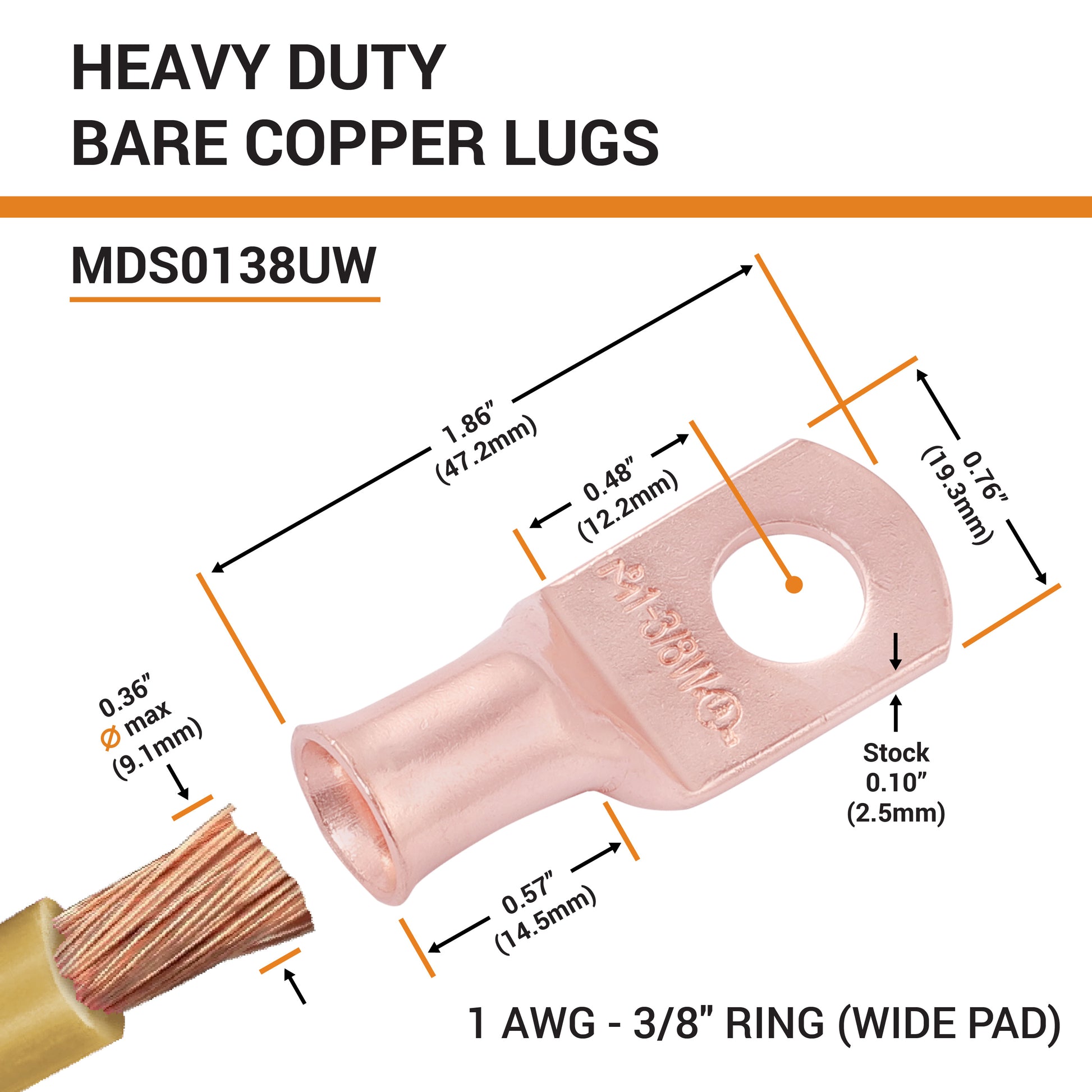

SELTERM Bare Copper Wire Lugs are made from 99.9% pure annealed copper, providing a high degree of conductivity for maximum current flow. This particular variant comes with a wider pad offering a larger clamping surface and is suitable for use with 1 Gauge Battery Cable & 3/8" (M10) Stud.
- Manufacturer part no. : MD0138UW
- Wire gauge: 1 AWG (1 Gauge)
- Stud size: 3/8" (M10)
- Pad width: Wide
- Barrel orientation: Straight
- Material: Copper
- Terminal type: Solder, Crimp, Ring
- Insulation material: Non-Insulated
- Industry Standard: UL/CUL (File # E254830), SAE
- Voltage rating (VDC): 600
- Temperature rating (ºC): 90
- Max current (A): 220
- RoHS: Compliant
- REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
- COO (Country of Origin): India
Competitor Part Cross-reference
- Molex: 192210580
- Quick Cable: -
- ASK: -
- EMC: 1383
- FTZ: -
DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.
WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
