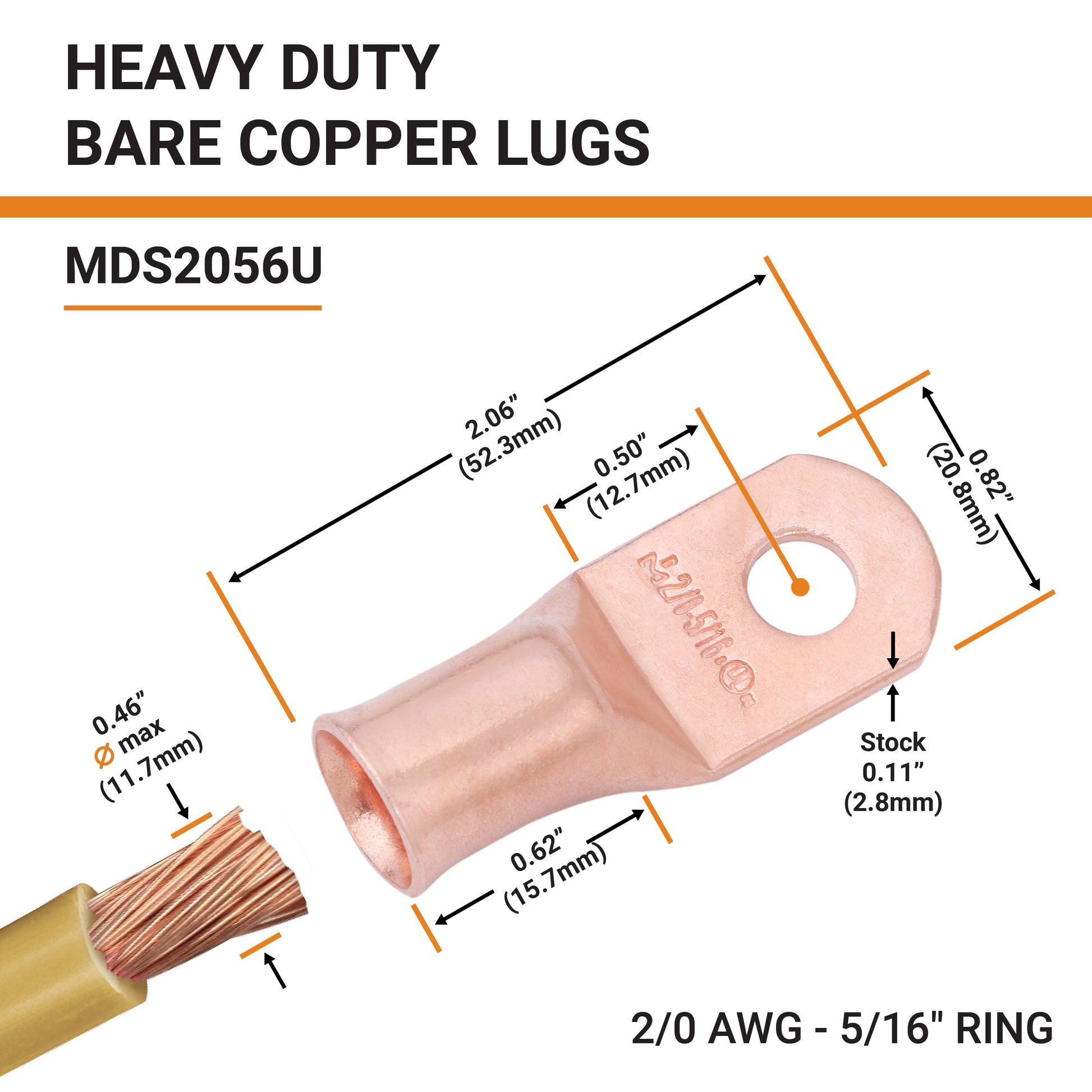

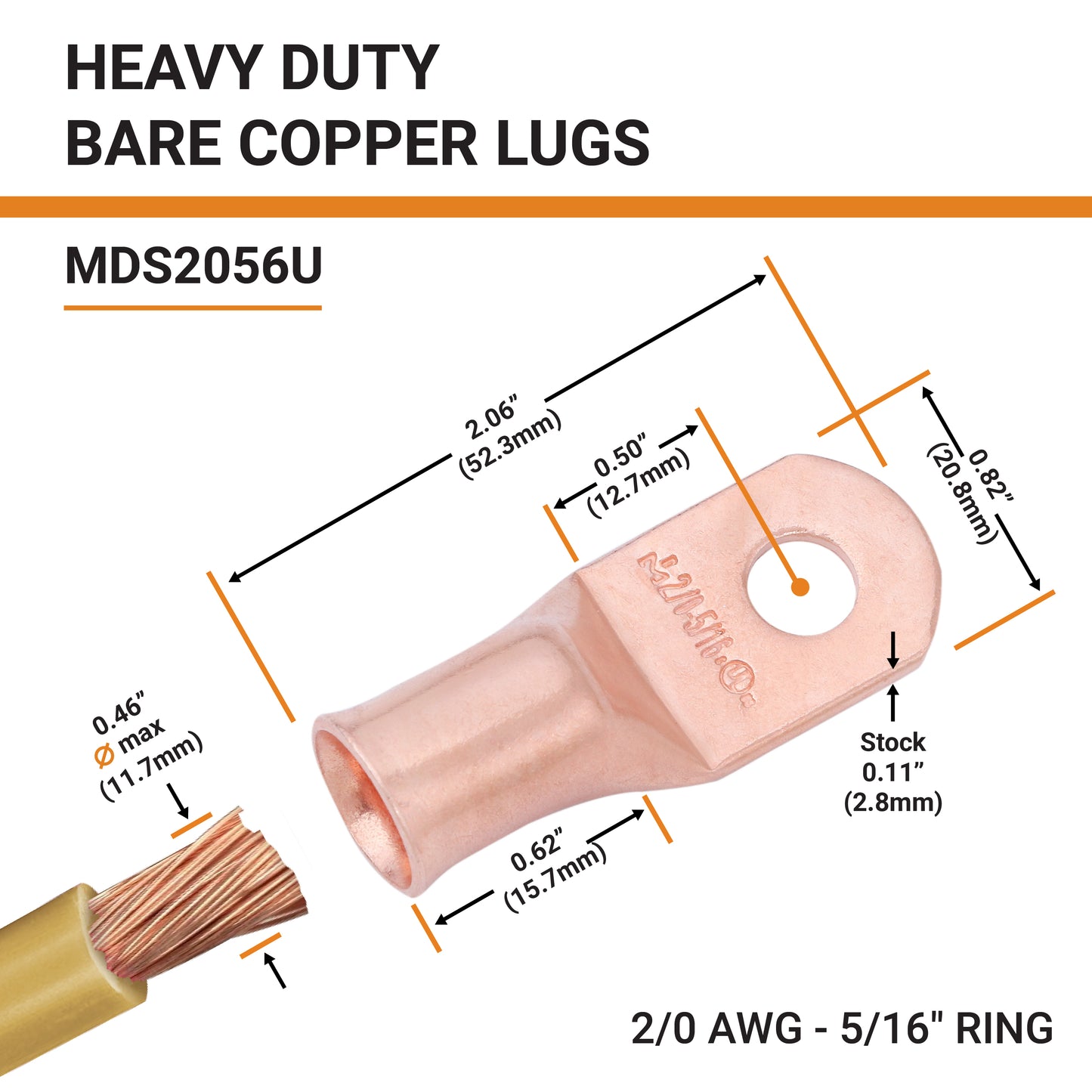

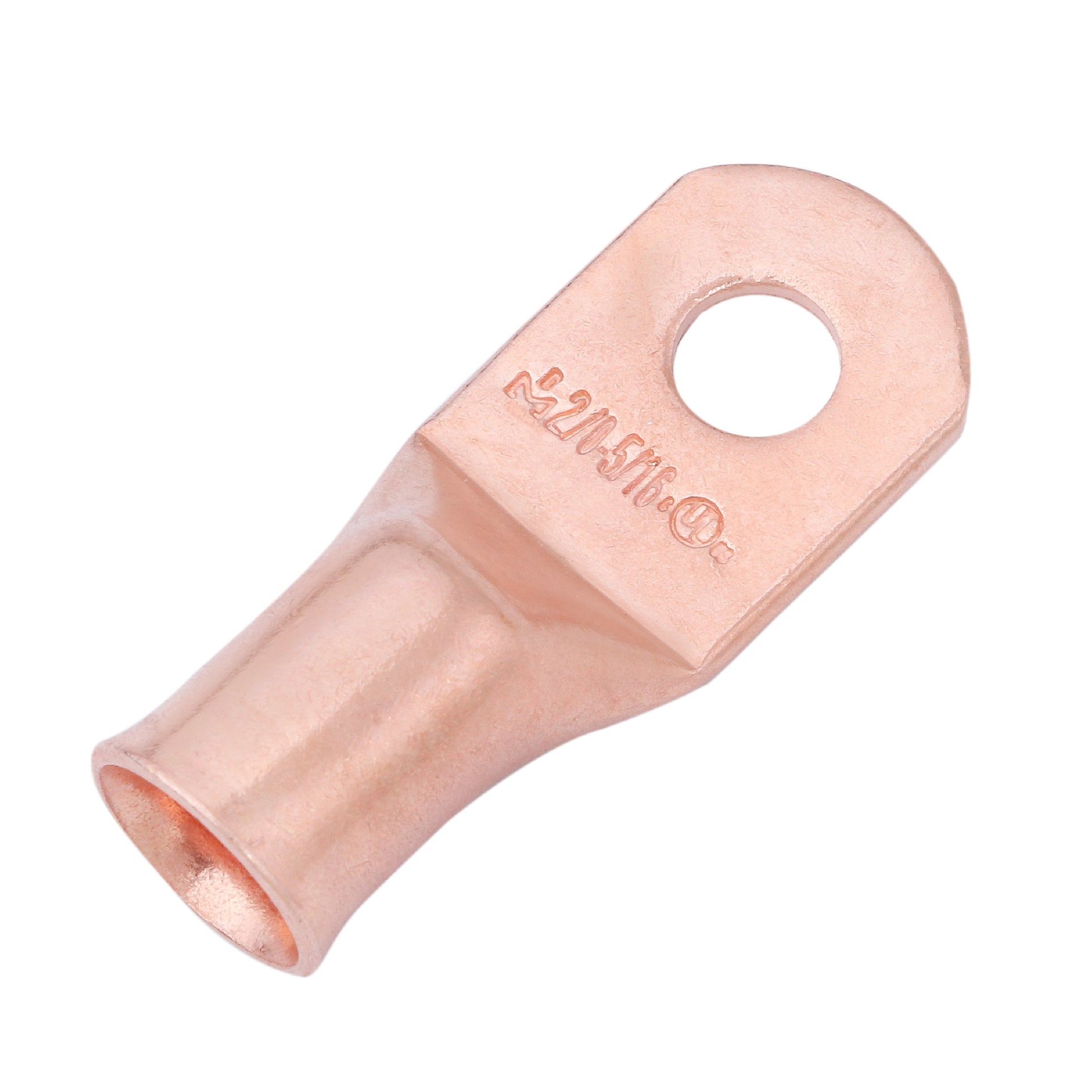

2/0 AWG, 5/16" Stud, Bare Copper Battery Cable Ends, Wire Lugs, Heavy Duty, MD2056U

$7.71 $9.05 Save $1.34

SKU: MDS2056U-2 UPC: 810038970936

Only 30 left!

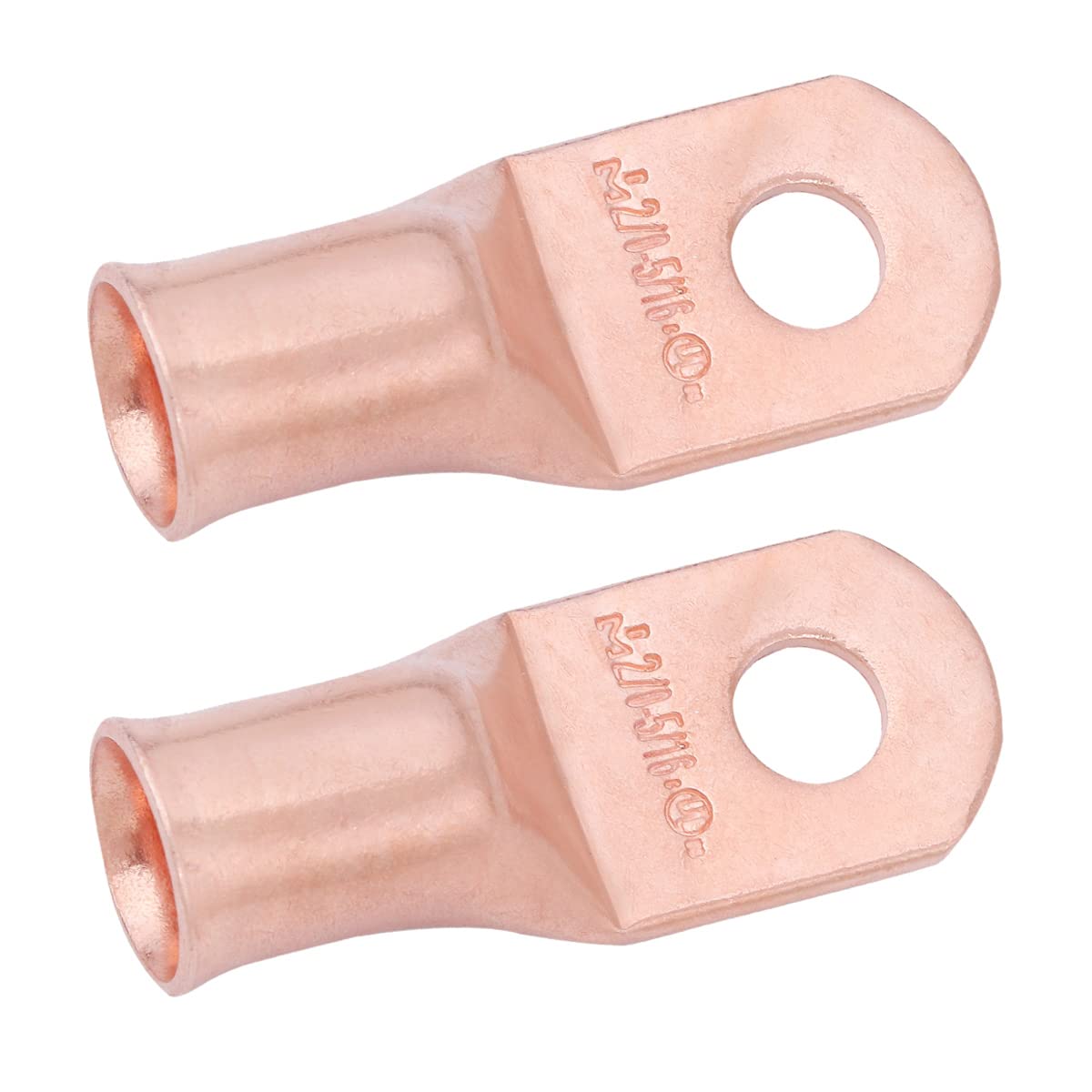

2 Pack
5 Pack

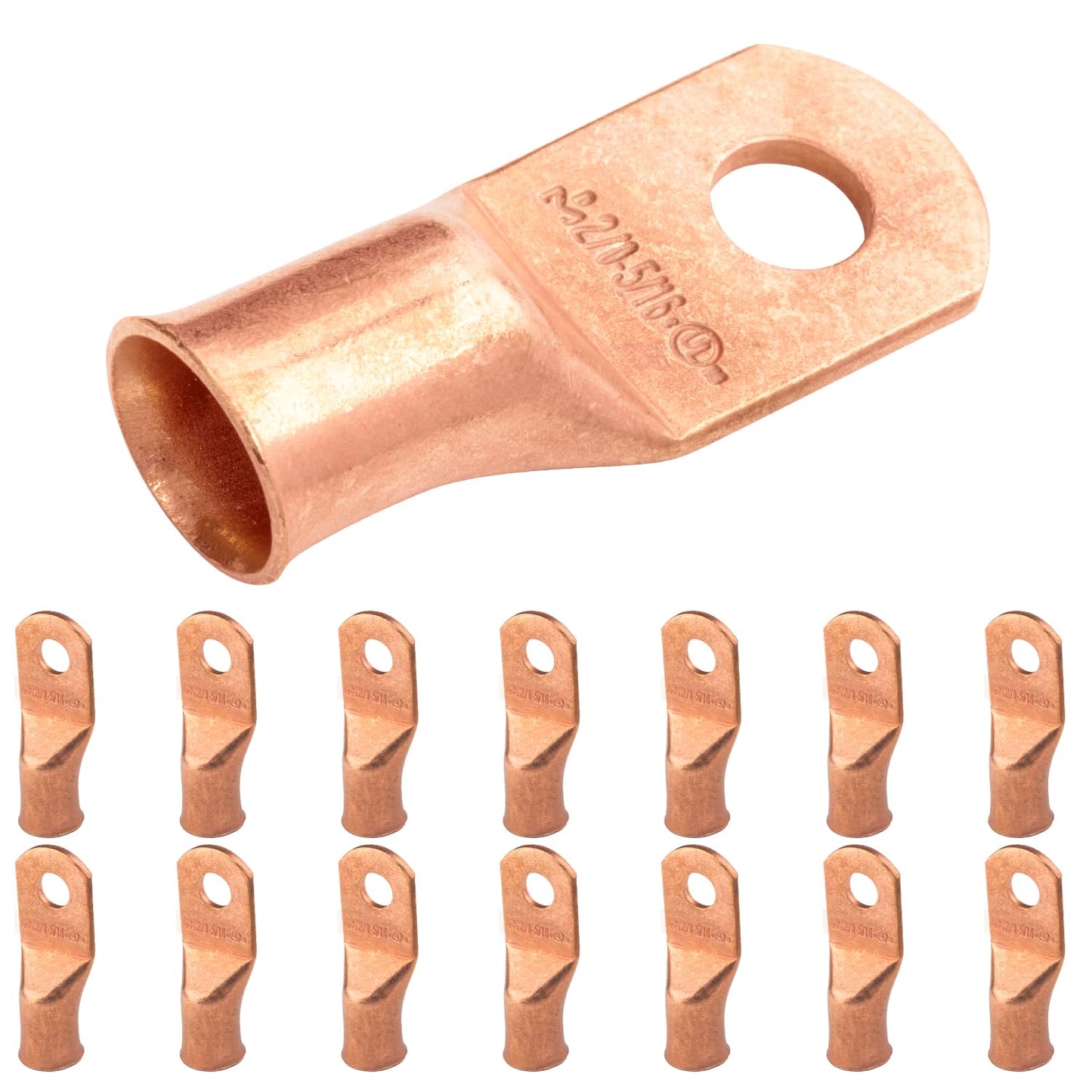

15 Pack

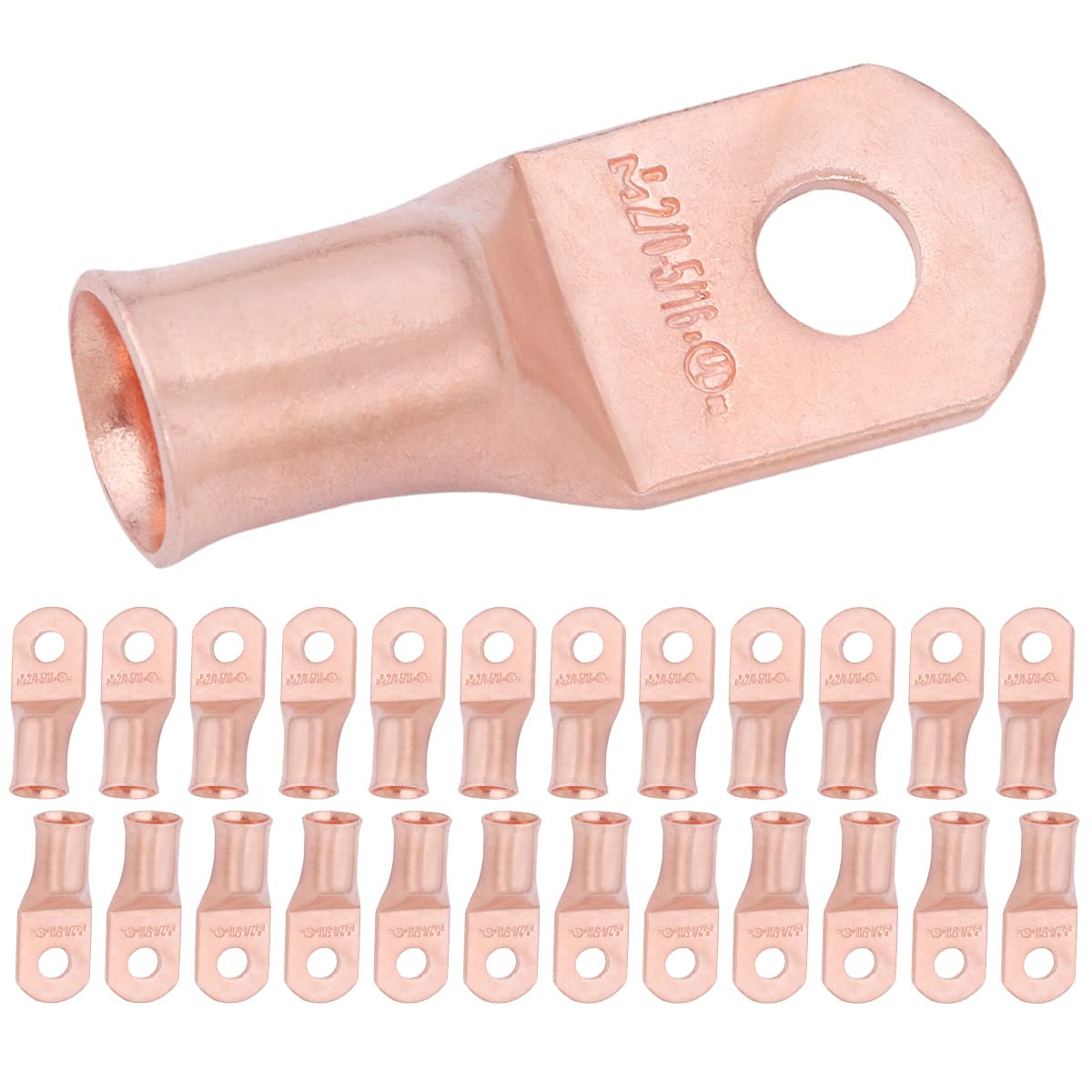

25 Pack

Contact us for Bulk Packaging

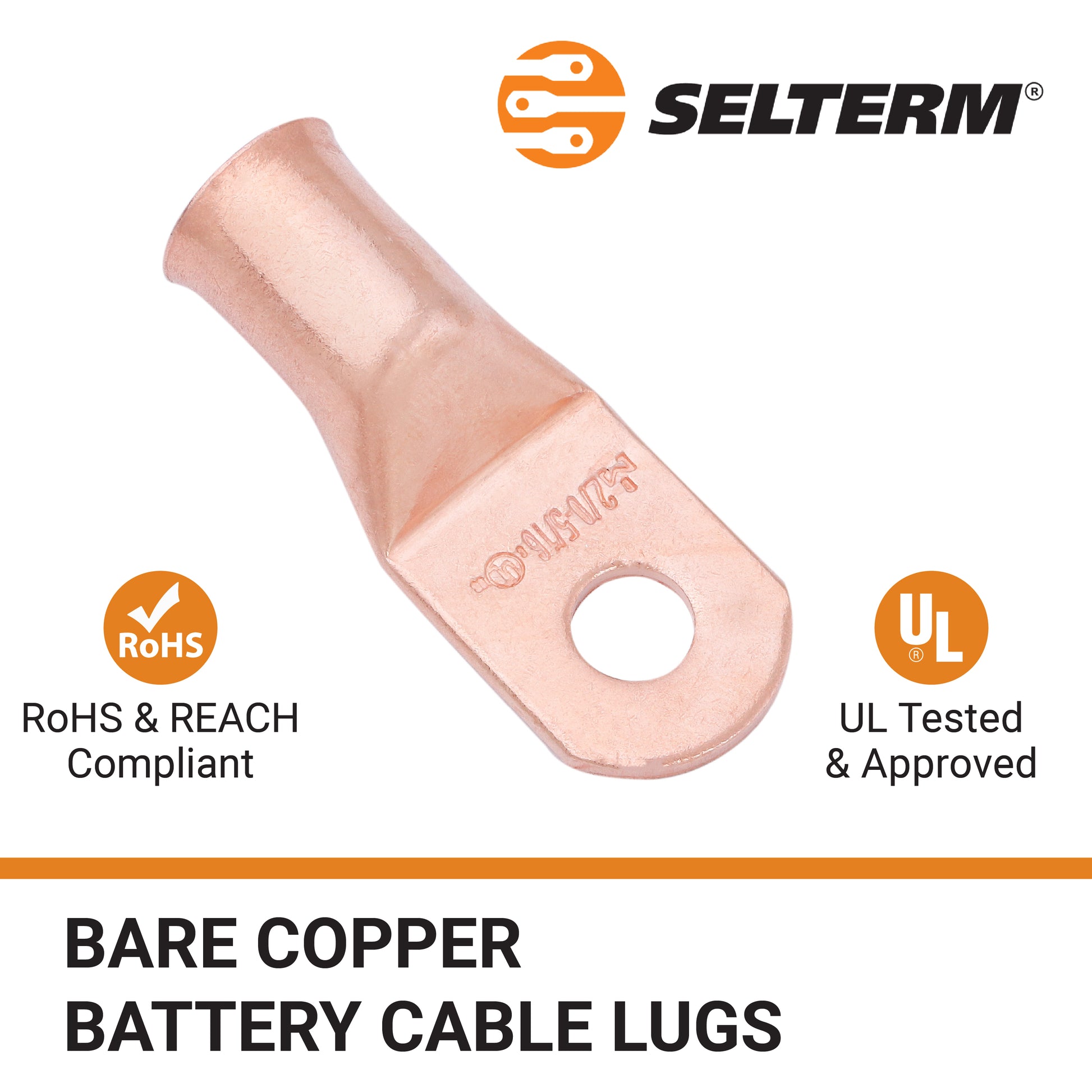

SELTERM Bare Copper Wire Lugs are made from 99.9% pure annealed copper, providing a high degree of conductivity for maximum current flow. This particular variant is suitable for use with 2/0 or 00 Gauge Battery Cable & 5/16" (M8) Stud.



 Specifications

  • Manufacturer part no. : MD2056U
  • Wire gauge: 2/0 AWG (00 Gauge)
  • Stud size: 5/16" (M8)
  • Pad width: Regular
  • Barrel orientation: Straight
  • Material: Copper
  • Terminal type: Solder, Crimp, Ring
  • Insulation material: Non-Insulated
  • Industry Standard: UL/CUL (File # E254830), SAE
  • Voltage rating (VDC): 600
  • Temperature rating (ºC): 90
  • Max current (A): 300

 Compliance

  • RoHS: Compliant
  • REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
  • COO (Country of Origin): India

 Competitor Part Cross-reference

  • Molex: 192210398
  • Quick Cable: 105137
  • ASK: 20516
  • EMC: 20561
  • FTZ: 91166

DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.

WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
