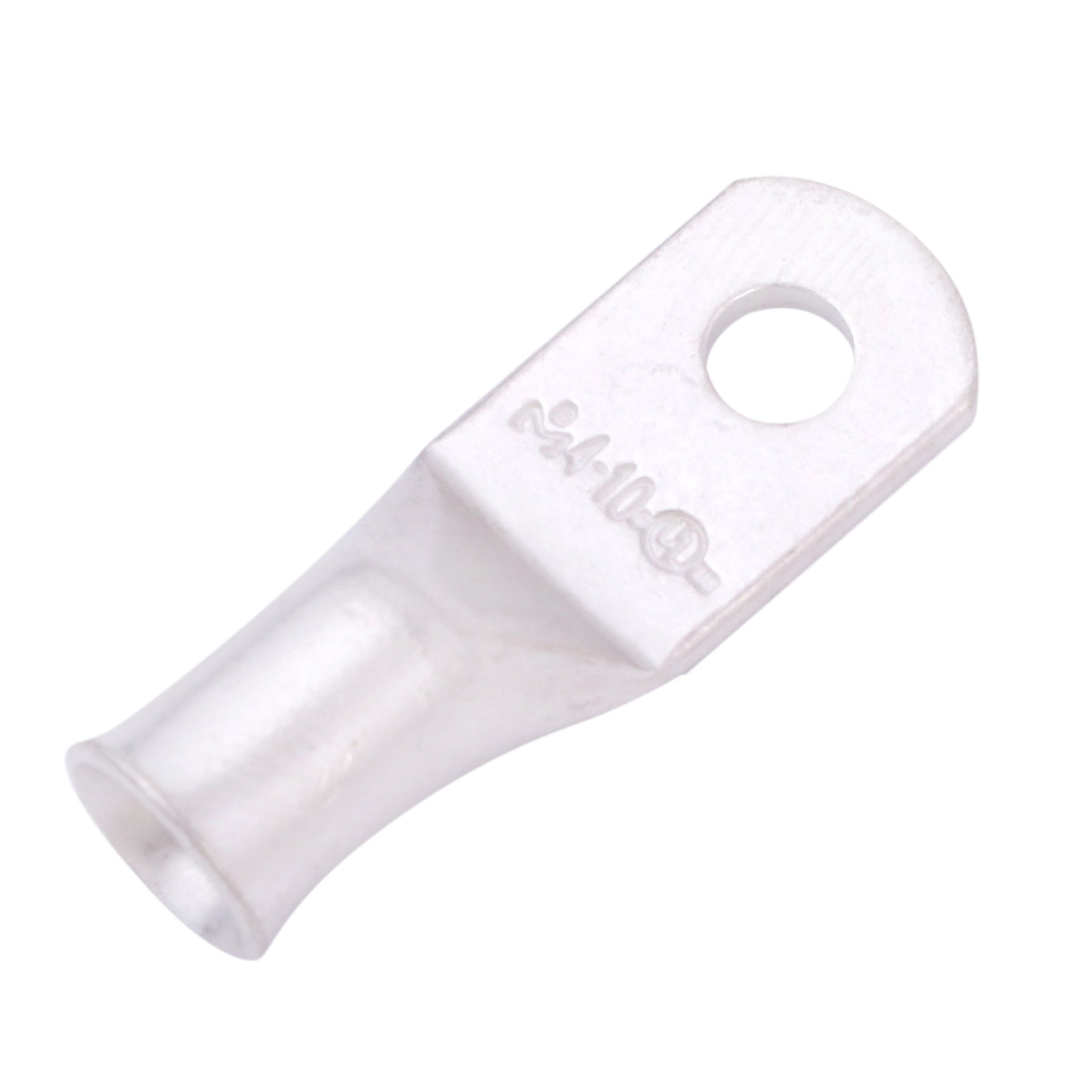

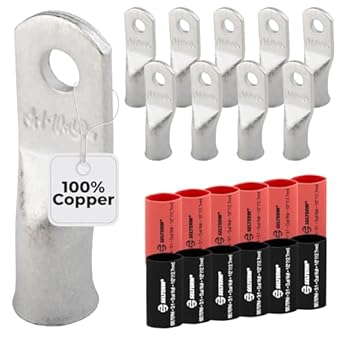

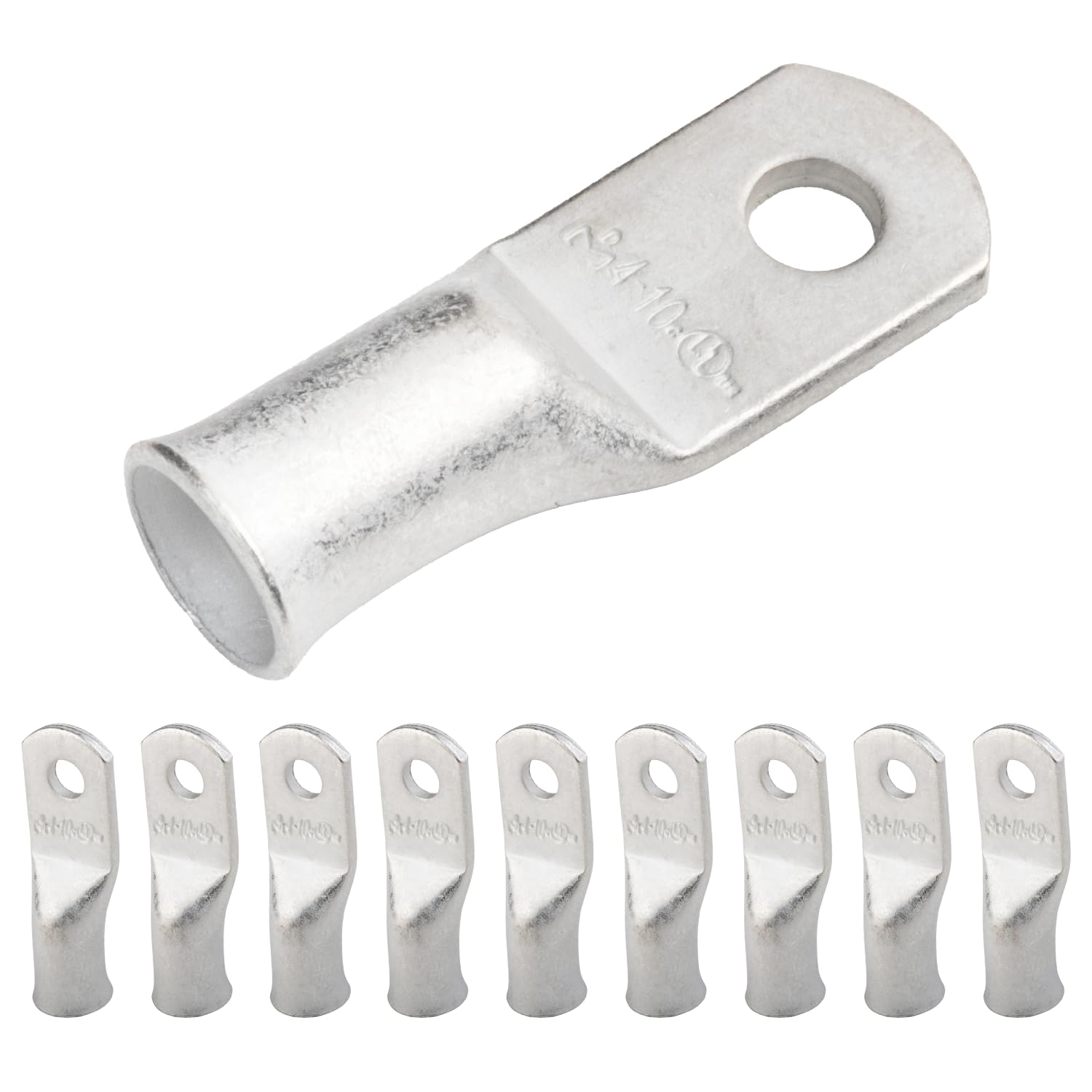

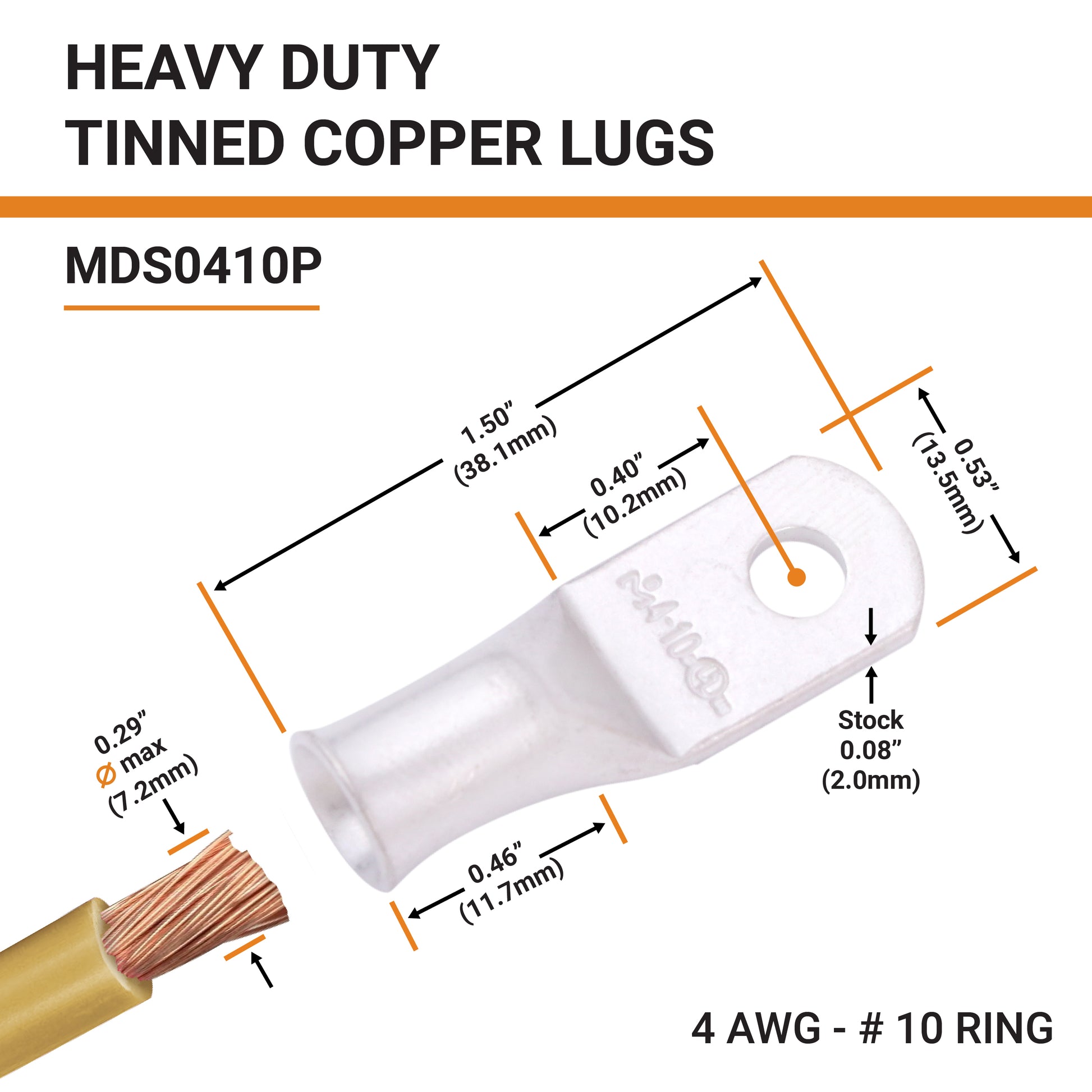

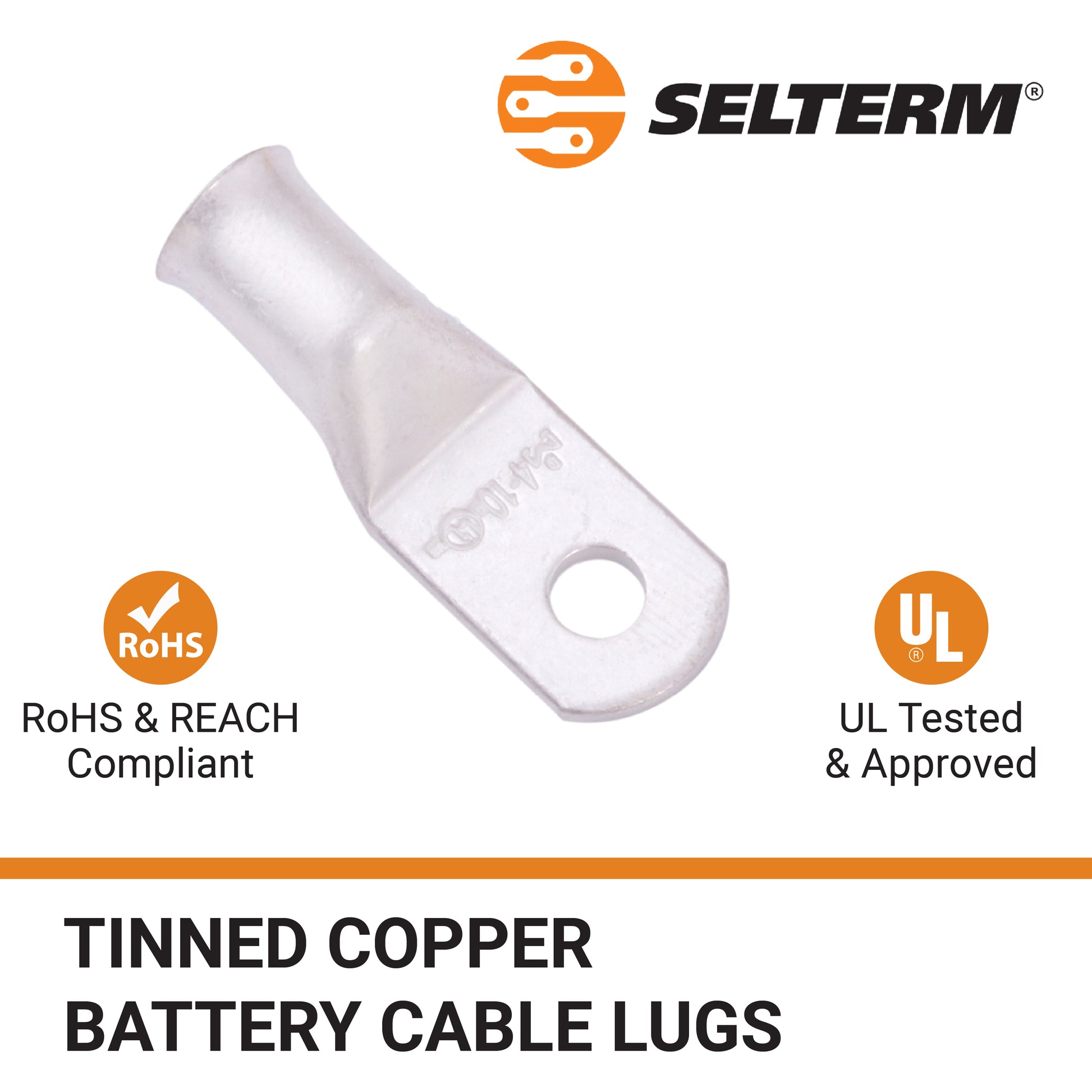

4 AWG, #10 Stud, Tinned Copper Battery Cable Ends, Wire Lugs, Marine Grade, MD0410P

$6.59 $7.31 Save $0.72

SKU: MDS0410P-2 UPC: 810038972268

Only 46 left!

2 Pack
10 Pack
25 Pack

Contact us for Bulk Packaging

SELTERM Marine Grade Wire Lugs are made from 99.9% pure annealed tinned copper, providing a high degree of conductivity for maximum current flow. This particular variant is generally suitable for use with 4 Gauge Battery Cable & # 10 (M5) Stud.



 Specifications

  • Manufacturer part no. : MD0410P
  • Wire gauge: 4 AWG (4 Gauge)
  • Stud size: # 10 (M5)
  • Pad width: Regular
  • Barrel orientation: Straight
  • Material: Copper
  • Terminal type: Ring Terminal
  • Insulation material: Non-Insulated
  • Industry Standard: UL (File # E254830), SAE
  • Voltage rating (VDC): 600
  • Temperature rating (ºC): 90
  • Max current (A): 140

 Compliance

  • RoHS: Compliant
  • REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
  • COO (Country of Origin): India

 Competitor Part Cross-reference

  • Molex: 192210452
  • Quick Cable: 5952C
  • ASK: 410TP
  • EMC: 4101-1
  • FTZ: 91024

DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.

WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
