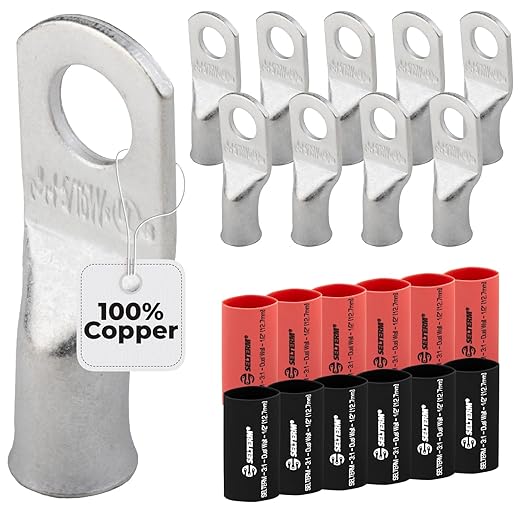

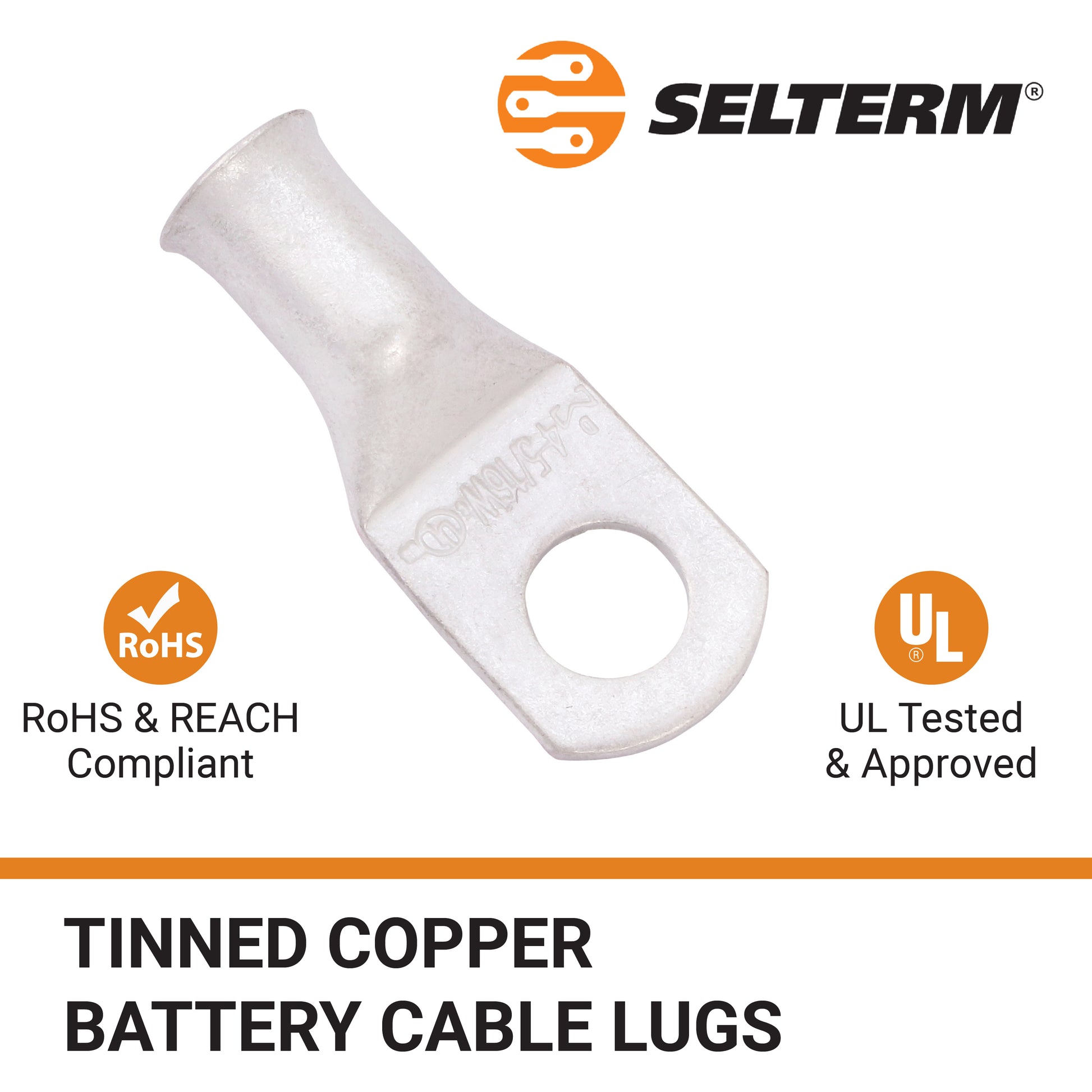

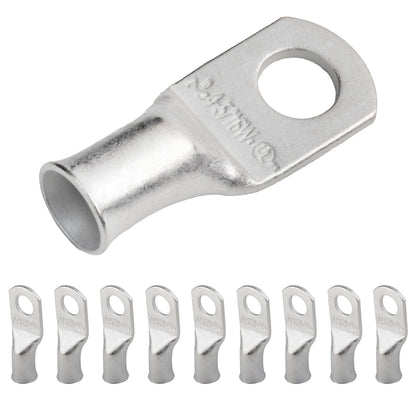

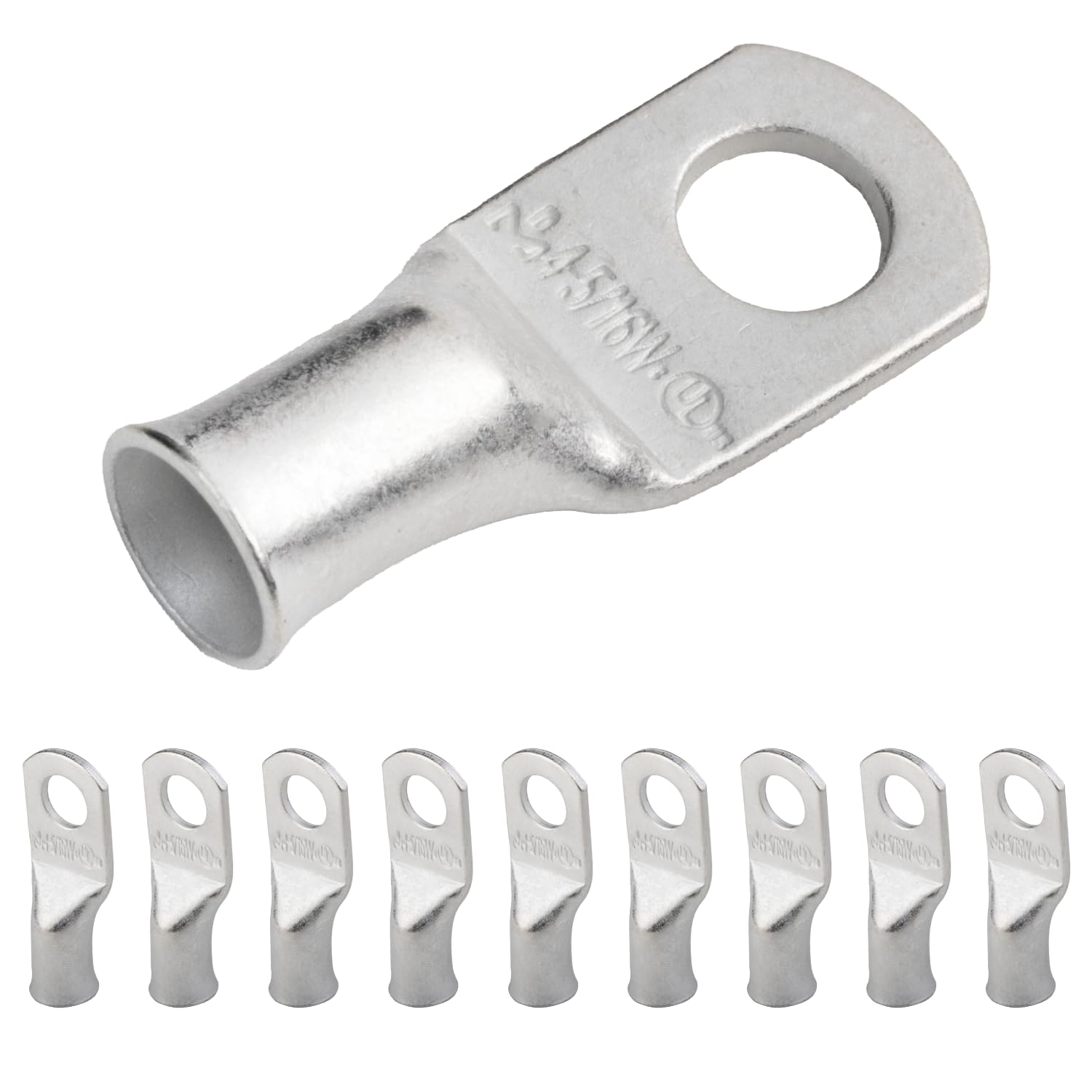

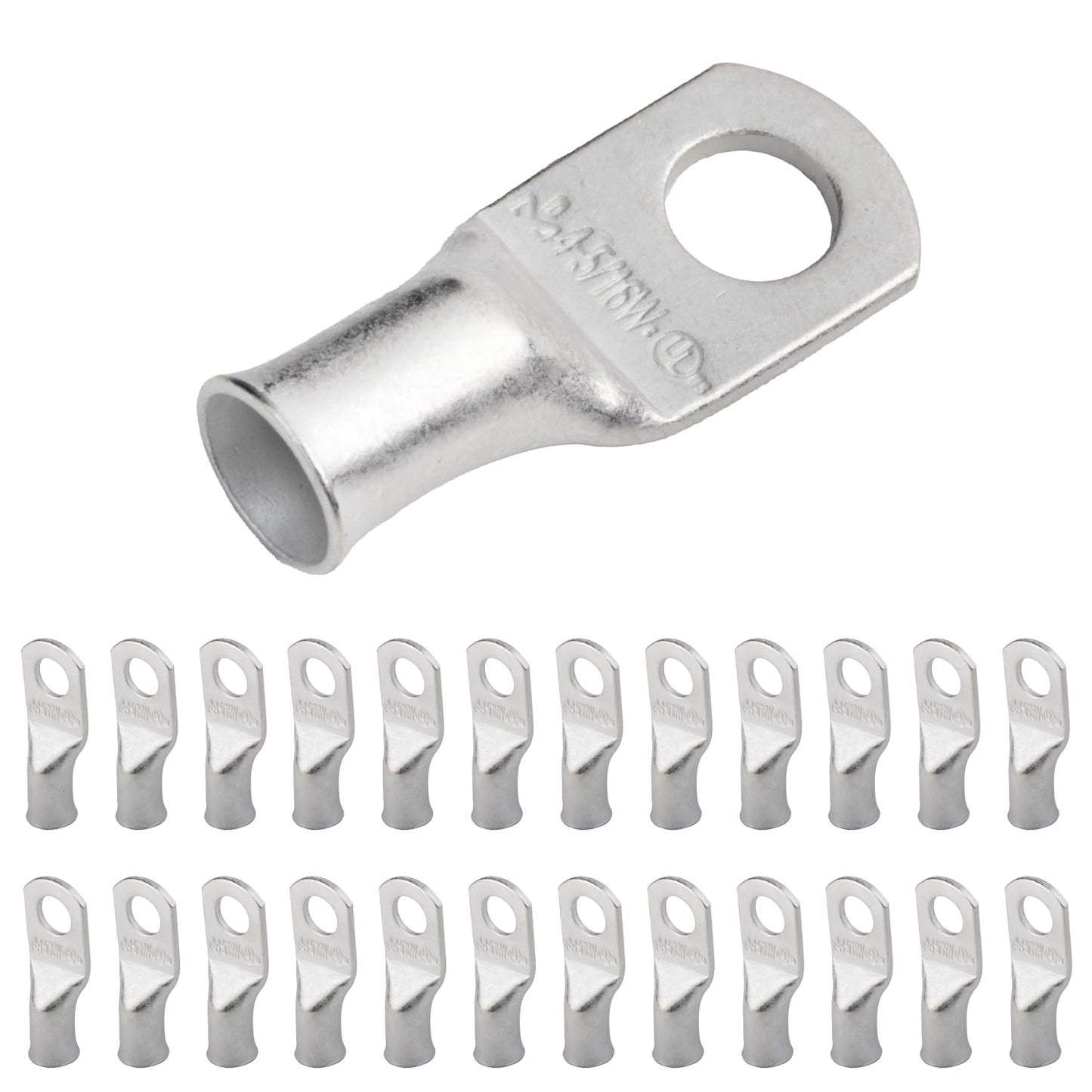

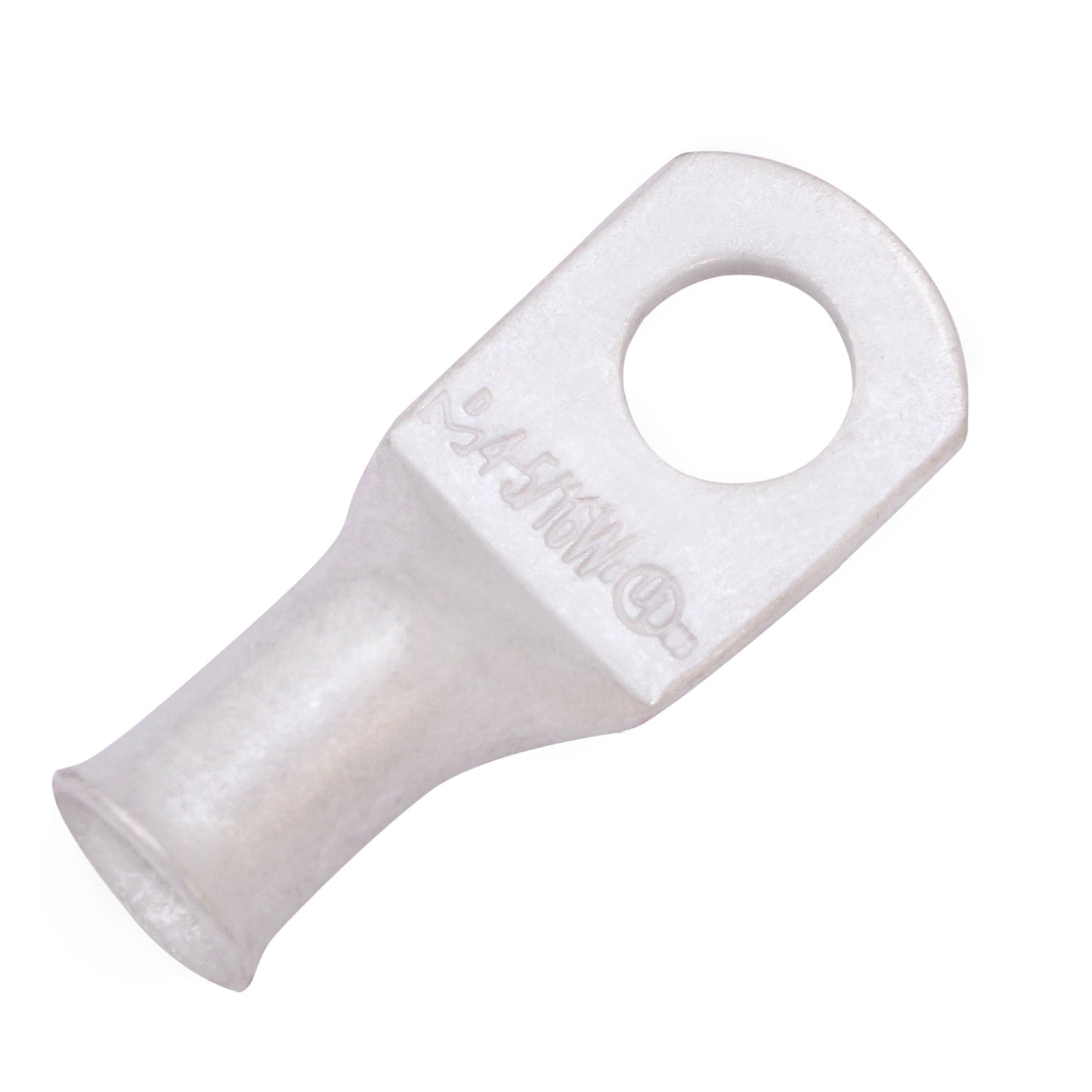

4 AWG, 5/16" Stud, (Wide Pad) Tinned Copper Battery Cable Ends, Wire Lugs, Marine Grade, MD0456PW

$7.99

SKU: MDS0456PW-2 UPC: 810038972749

Only 8 left!

2 Pack
10 Pack
25 Pack

Free shipping on all orders

Free priority shipping on orders $99+

Contact us for Bulk Packaging

SELTERM Marine Grade Wire Lugs are made from 99.9% pure annealed tinned copper, providing a high degree of conductivity for maximum current flow. This particular variant comes with a wider pad offering a larger clamping surface and is generally suitable for use with 4 Gauge Battery Cable & 5/16" (M8) Stud.

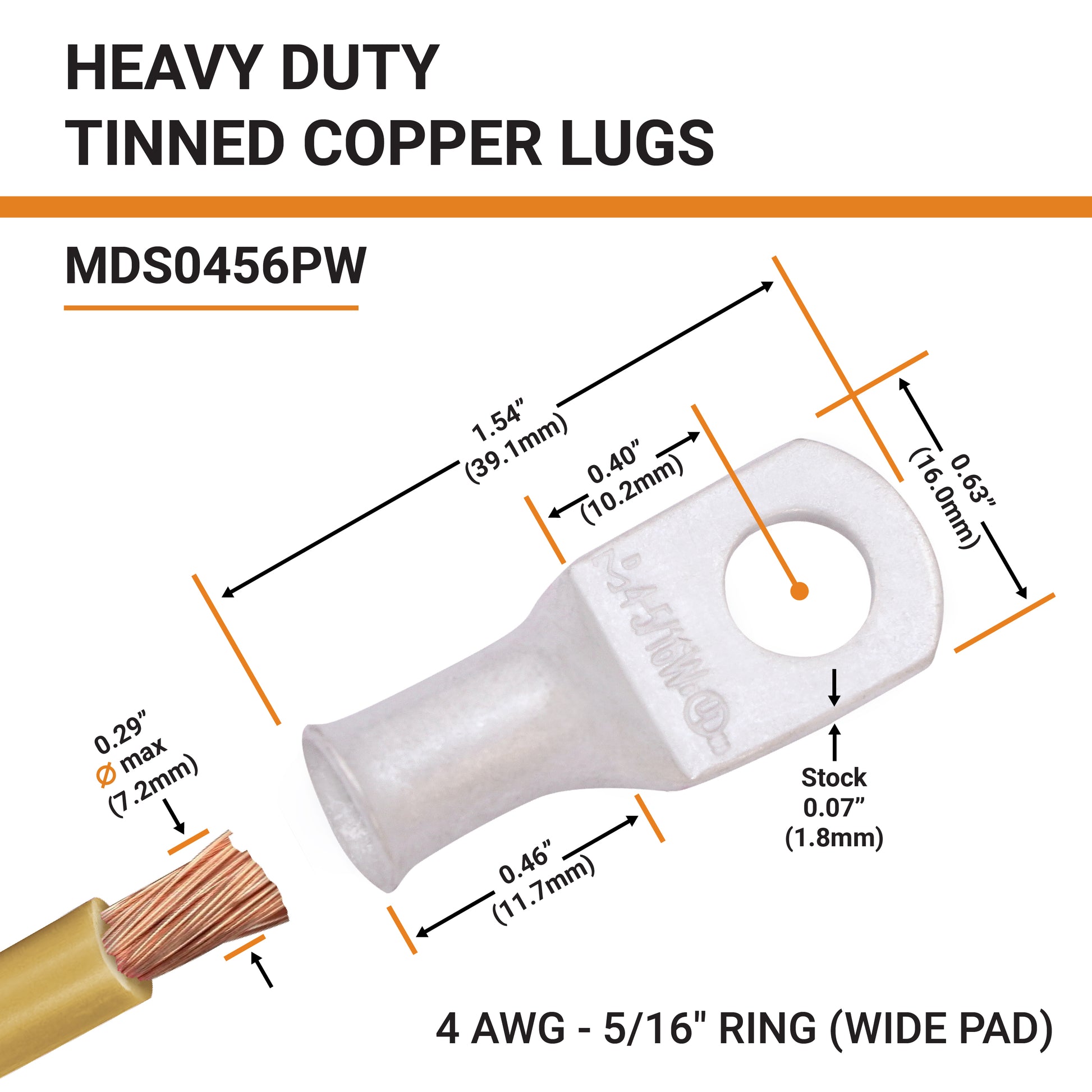

 Specifications

  • Manufacturer part no. : MD0456PW
  • Wire gauge: 4 AWG (4 Gauge)
  • Stud size: 5/16" (M8)
  • Pad width: Wide
  • Barrel orientation: Straight
  • Material: Copper
  • Terminal type: Ring Terminal
  • Insulation material: Non-Insulated
  • Industry Standard: UL (File # E254830), SAE
  • Voltage rating (VDC): 600
  • Temperature rating (ºC): 90
  • Max current (A): 140

 Compliance

  • RoHS: Compliant
  • REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
  • COO (Country of Origin): India

 Competitor Part Cross-reference

  • Molex: 192210460
  • Quick Cable: -
  • ASK: 45162TP
  • EMC: 4562-1
  • FTZ: -

DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.

WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
