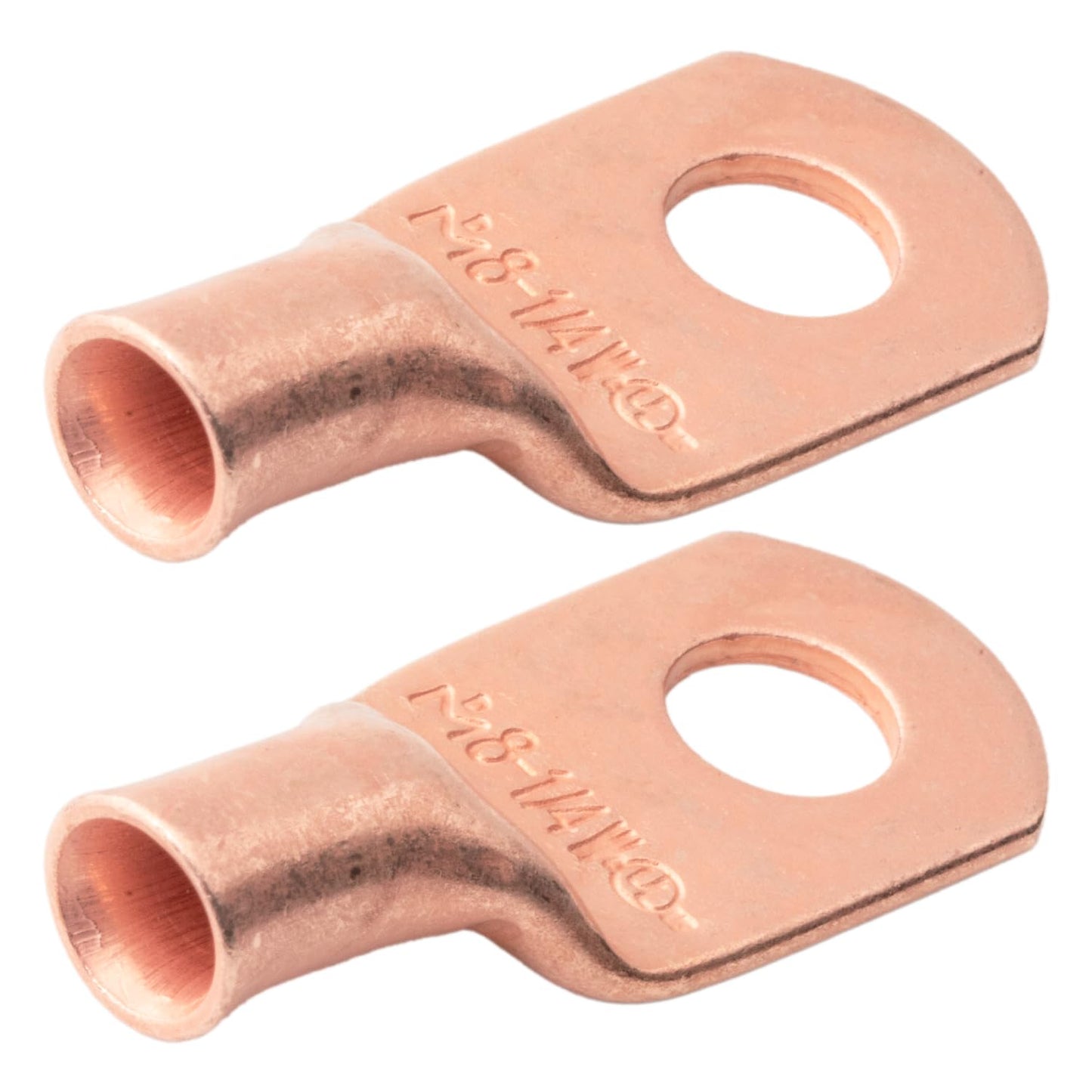

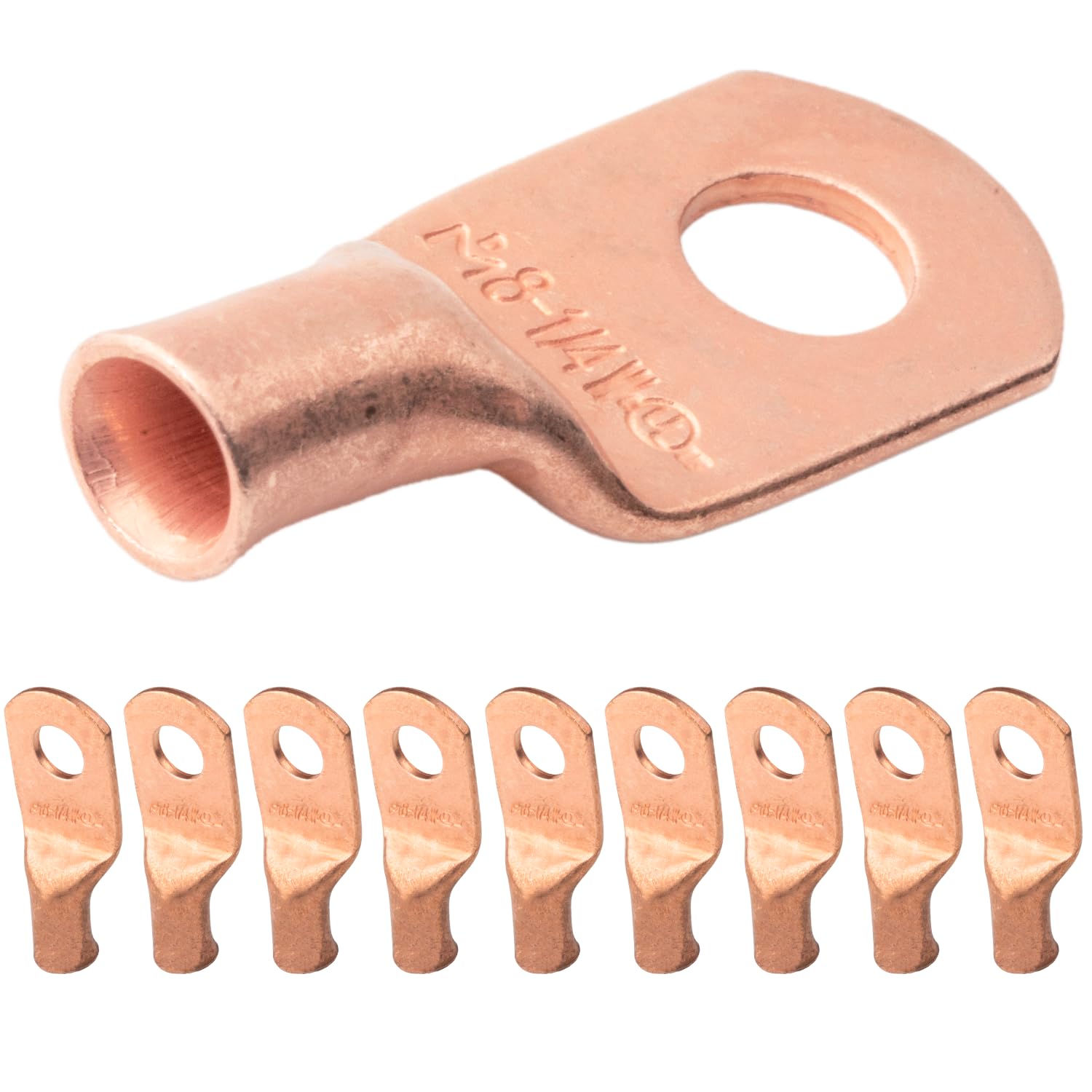

SELTERM Bare Copper Wire Lugs are made from 99.9% pure annealed copper, providing a high degree of conductivity for maximum current flow. This particular variant comes with a wider pad offering a larger clamping surface and is suitable for use with 8 Gauge Battery Cable & 1/4" (M6) Stud.
Manufacturer part no. : MD0814UW
Wire gauge:8 AWG (8 Gauge)
Stud size: 1/4" (M6)
Pad width: Wide
Barrel orientation: Straight
Terminal type: Solder, Crimp, Ring
Insulation material: Non-Insulated
Industry Standard: UL/CUL (File # E254830), SAE
Voltage rating (VDC): 600
Temperature rating (ºC): 90
Max current (A): 80
REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
COO (Country of Origin): India
Competitor Part Cross-reference
Quick Cable: -
DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.
WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
DECLARATION OF PRODUCT COMPLIANCE
SELTERM is committed to managing the use of chemical substances in accordance with governmental regulations, industry standards, and customer-specific requirements in order to protect the environment.
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment. The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
PBB (Polybrominated Biphenyls)
PBDE (Polybrominated Diphenyl Ethers)
DEHP (Bis (2-Ethylhexl) phthalate)
BBP (Benzyl butyl phthalate)
DBP (Dibutyl phthalate)
DIBP (Diisobutyl phthalate)
We hereby declare that the product listed below is compliant to RoHS Directive “2011/65/EU & 2015/863” of the European Parliament on restriction of the use of certain hazardous substances in electrical components & equipment.
Substances of Very High Concerns (SVHCs) are declared if above 0.1% of the article per Regulation (EC) No. 1907/2006 and its subsequent amendments. The Candidate List of SVHCs is continually updated at https://echa.europa.eu/candidate-list-table.
We hereby declare that the product listed below does not contain Substances of Very High Concerns (SVHCs).
Information relates only to product listed below, sold on or after the date of this certificate.
Manufacturer Part no.: MD0814UW
Part Description: 8 AWG, 1/4" Stud, (Wide Pad) Bare Copper Battery Cable Ends, Wire Lugs, Heavy Duty, MD0814UW
