8 AWG, 1/4" Stud, (Wide Pad) Tinned Copper Battery Cable Ends And Wire Lugs

$21.72

SKU: MDS0814PW-2 UPC: 810038974781

Sold Out

2 Pack

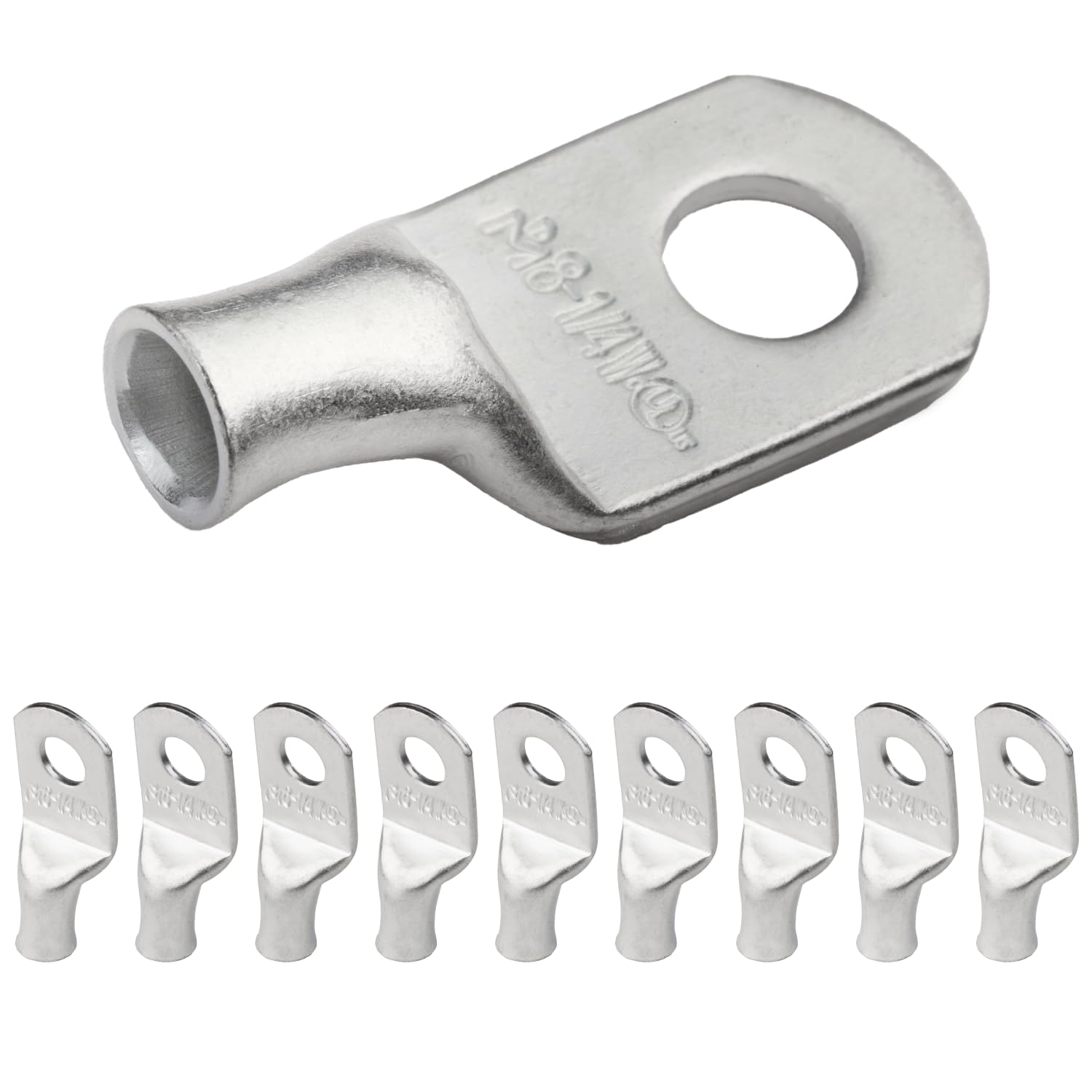

10 Pack

Contact us for Bulk Packaging

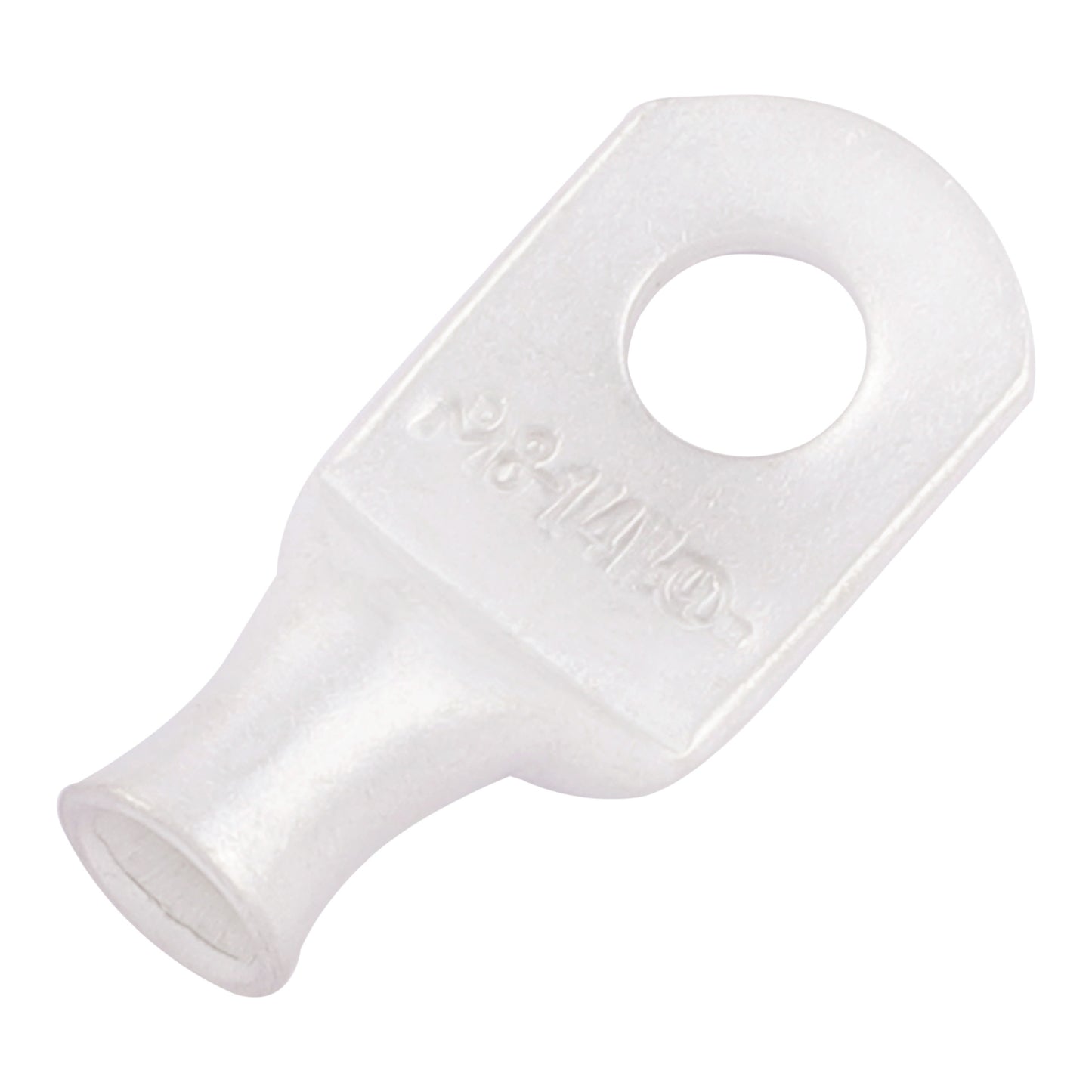

SELTERM Marine Grade Wire Lugs are made from 99.9% pure annealed tinned copper, providing a high degree of conductivity for maximum current flow. This particular variant comes with a wider pad offering a larger clamping surface and is generally suitable for use with 8 Gauge Battery Cable & 1/4" (M6) Stud.



 Specifications

  • Manufacturer part no. : MD0814PW
  • Wire gauge: 8 AWG (8 Gauge)
  • Stud size: 1/4" (M6)
  • Pad width: Wide
  • Barrel orientation: Straight
  • Material: Copper
  • Terminal type: Ring Terminal
  • Insulation material: Non-Insulated
  • Industry Standard: UL (File # E254830), SAE
  • Voltage rating (VDC): 600
  • Temperature rating (ºC): 90
  • Max current (A): 80

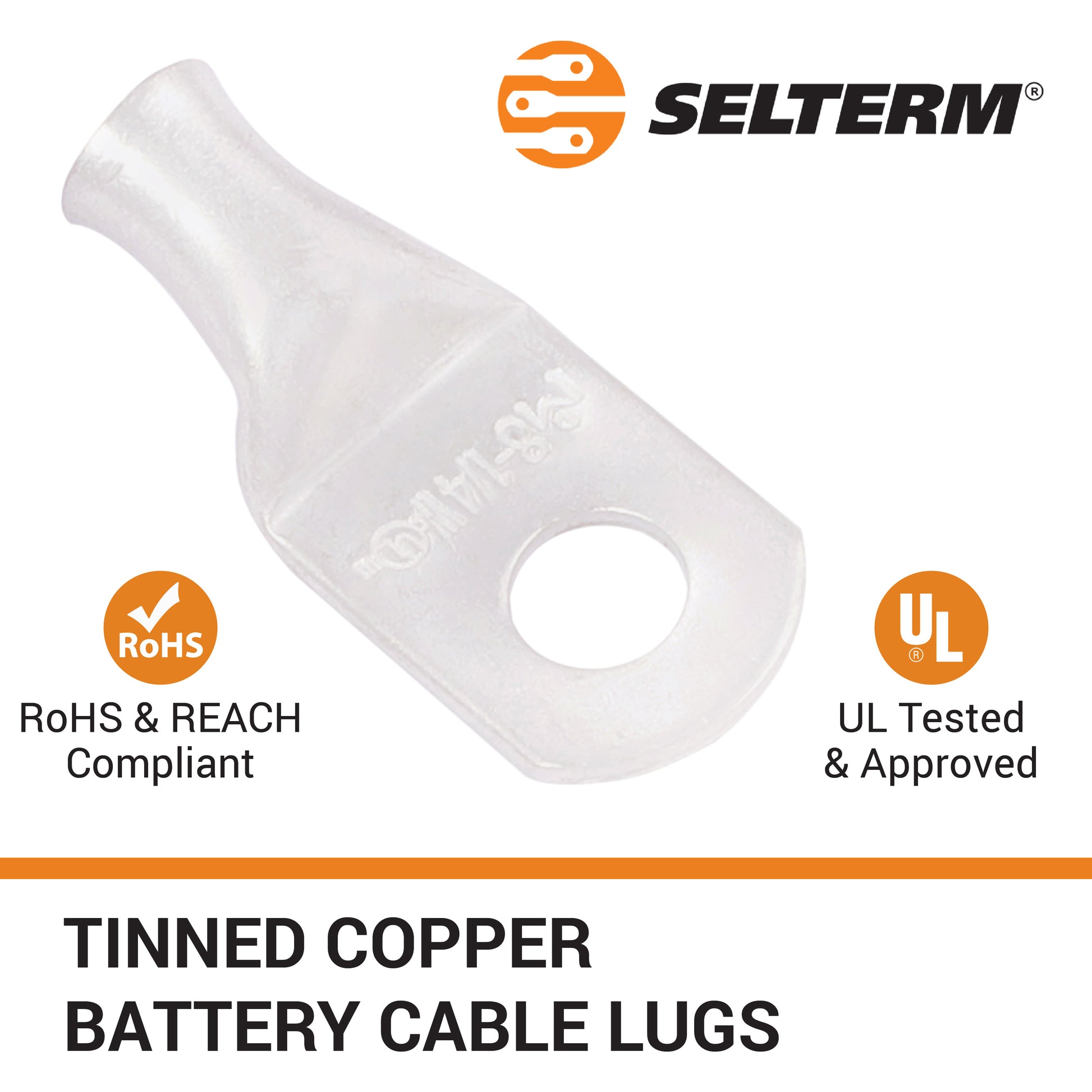

 Compliance

  • RoHS: Compliant
  • REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
  • COO (Country of Origin): India

 Competitor Part Cross-reference

  • Molex: 192210563
  • Quick Cable: -
  • ASK: 8142TP
  • EMC: 8142-1
  • FTZ: -

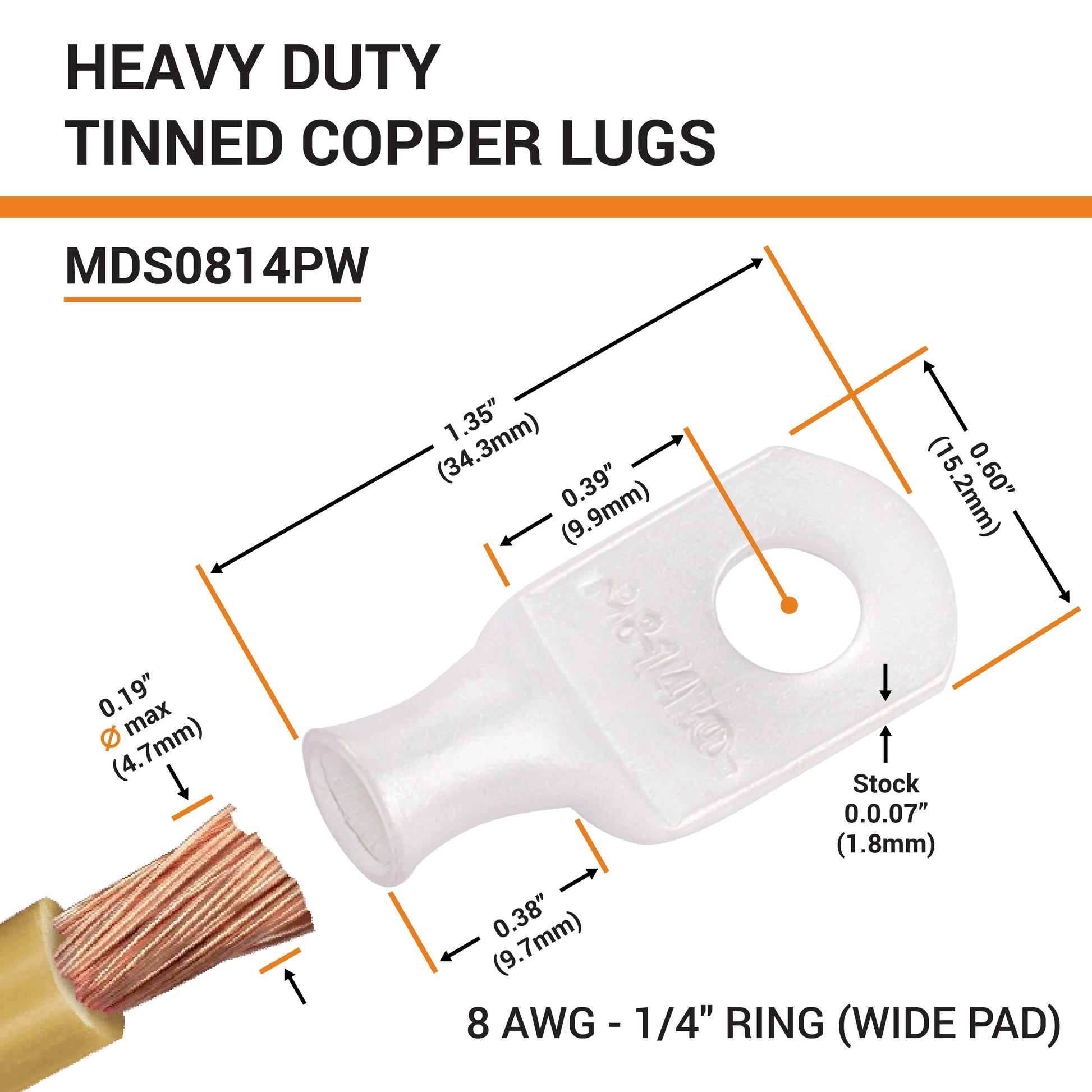

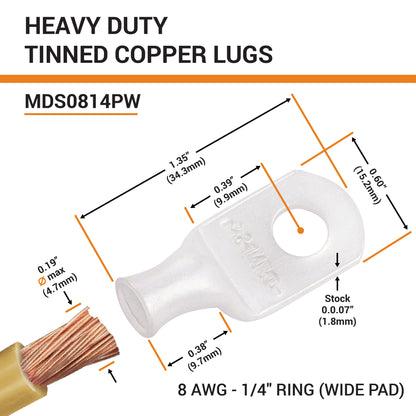

DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.

WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
