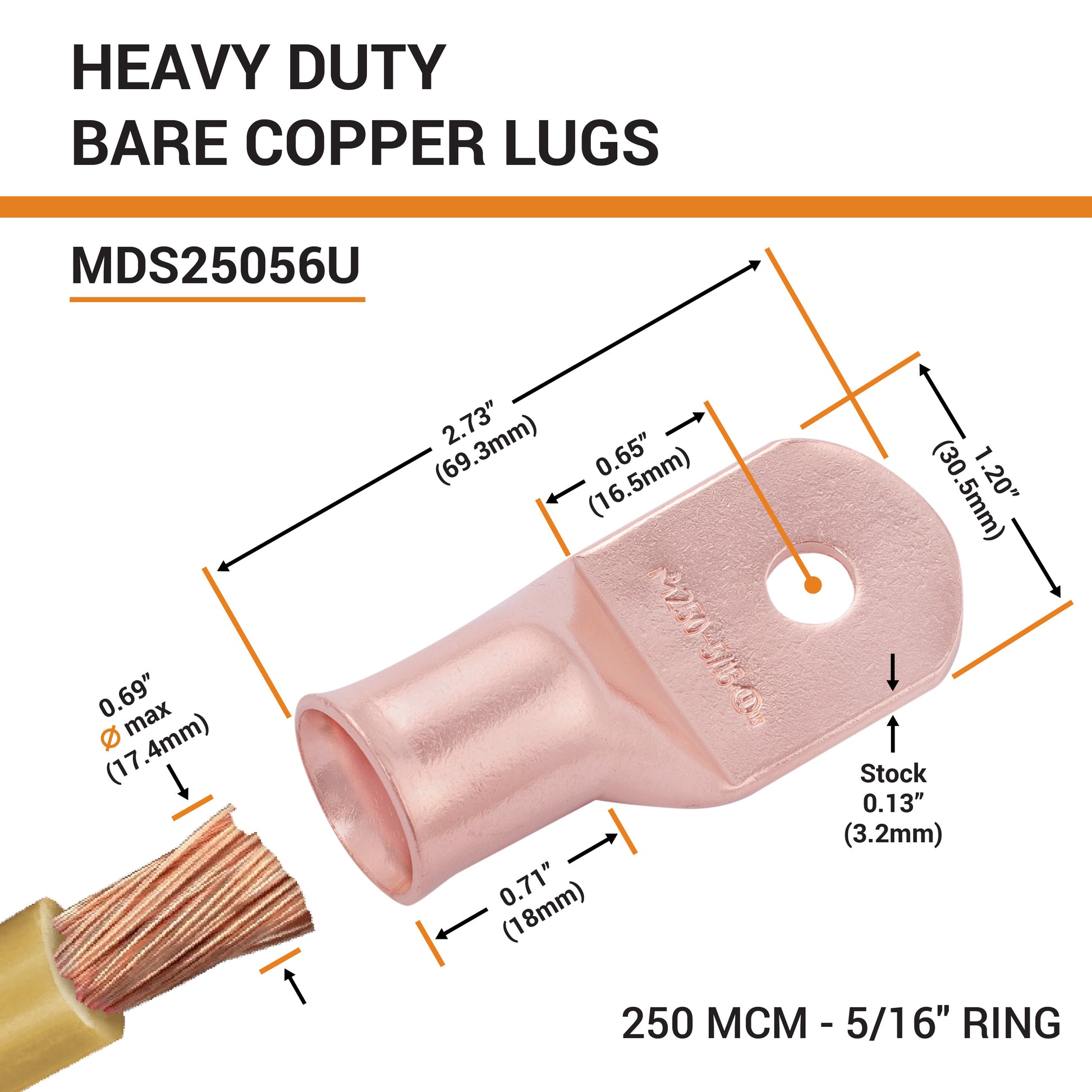

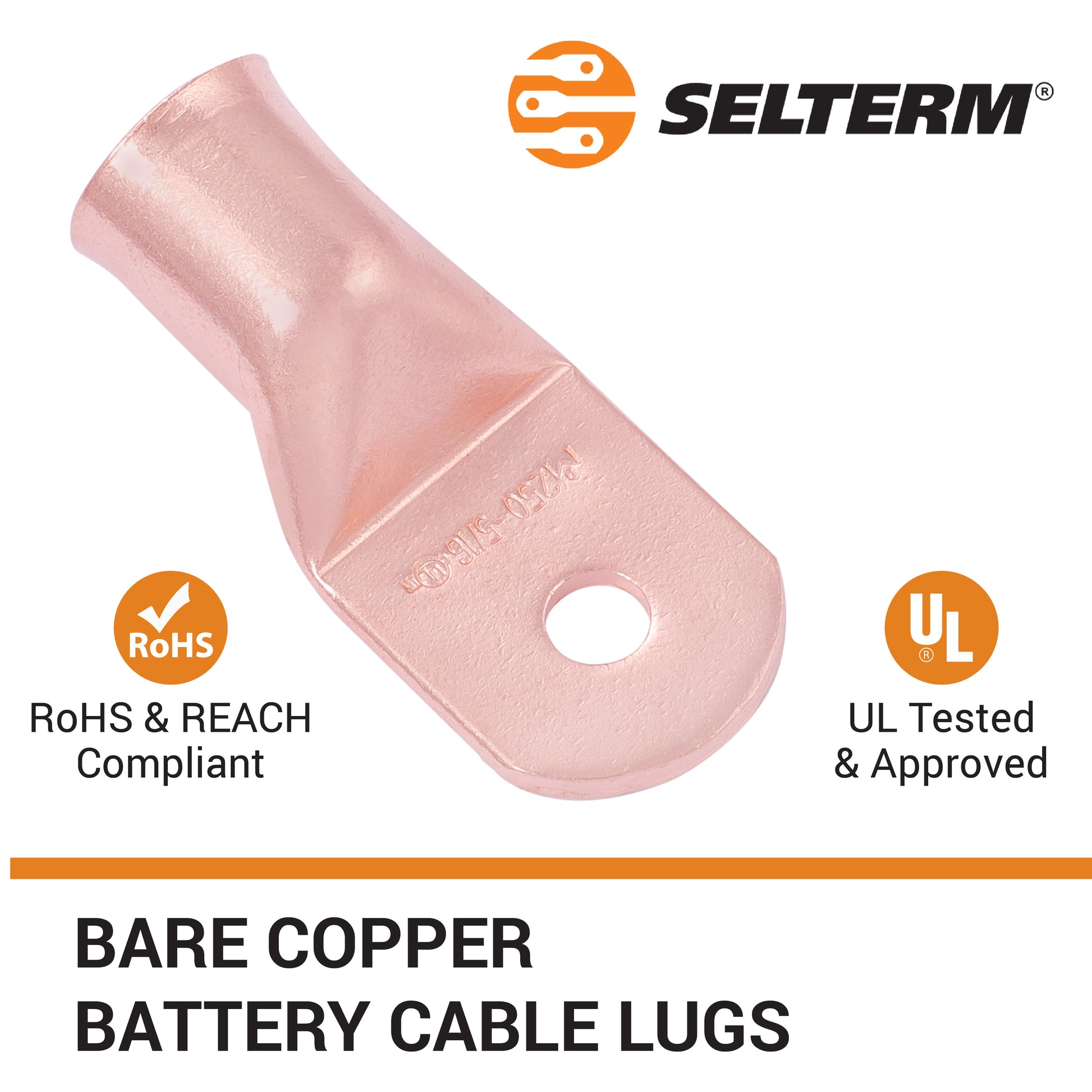

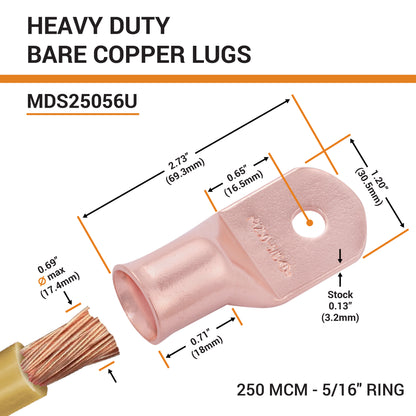

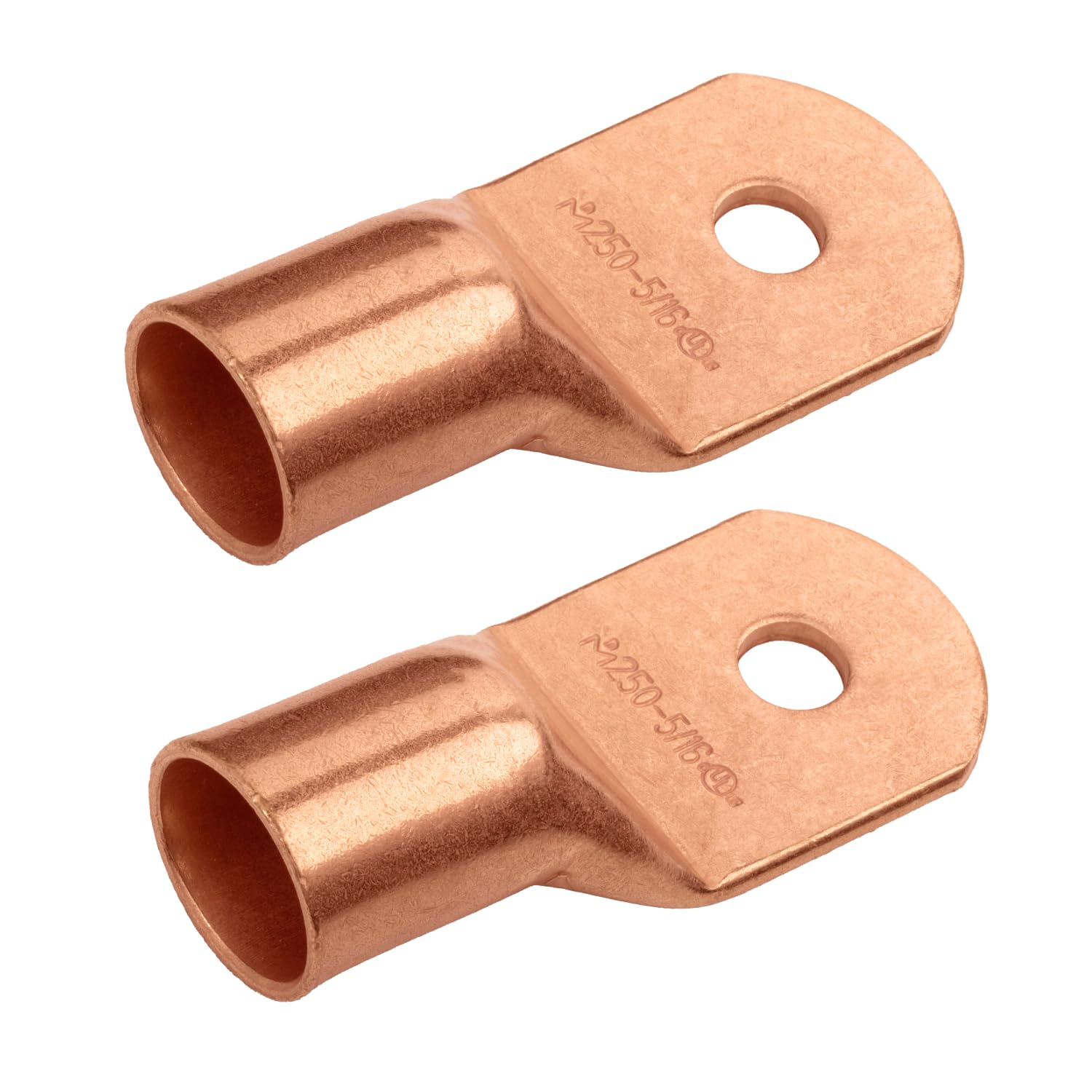

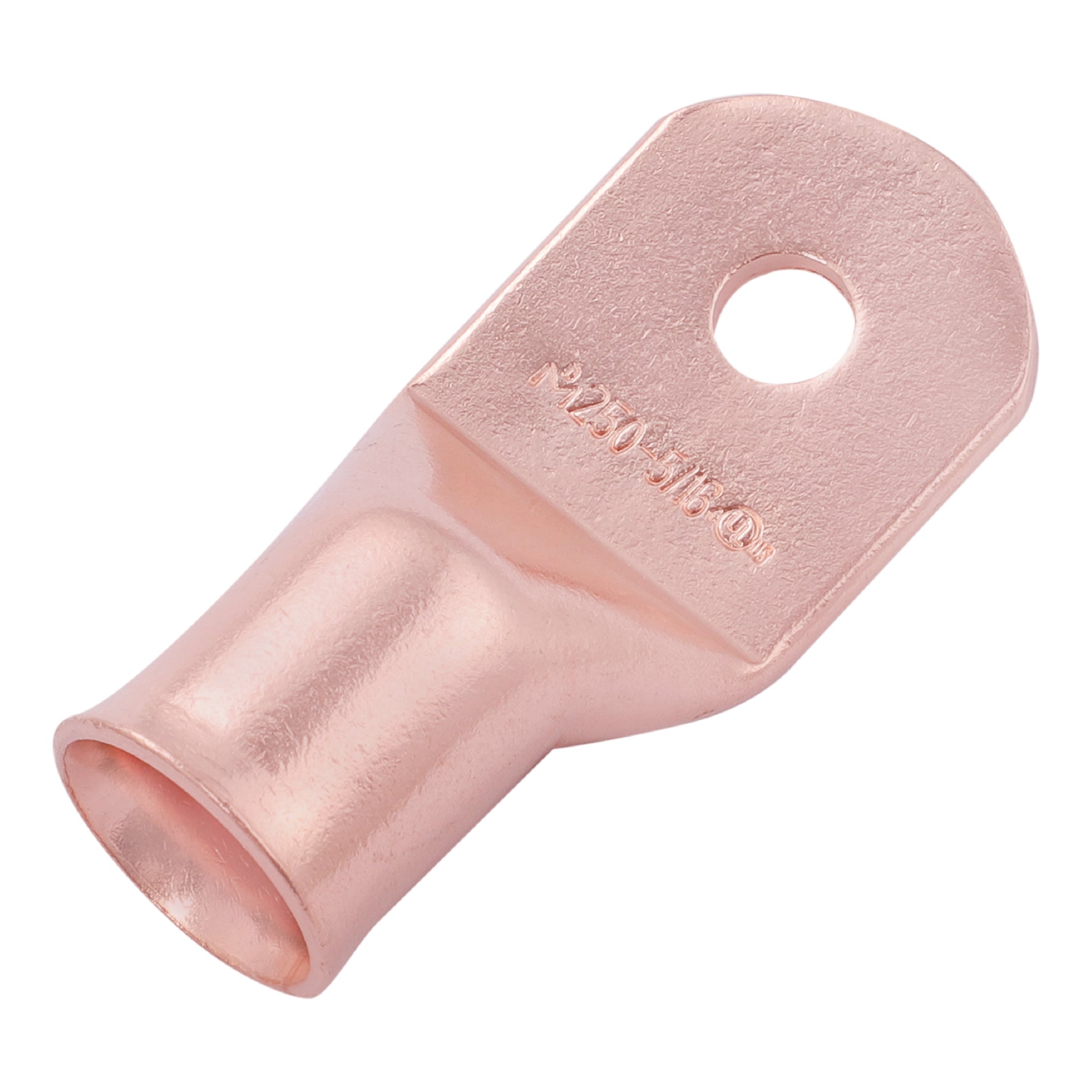

SELTERM Bare Copper Wire Lugs are made from 99.9% pure annealed copper, providing a high degree of conductivity for maximum current flow. This particular variant is suitable for use with 250 MCM Battery Cable & 5/16" (M8) Stud.
Manufacturer part no. : MD25056U
Wire gauge:250 MCM
Stud size: 5/16" (M8)
Pad width: Regular
Barrel orientation: Straight
Terminal type: Solder, Crimp, Ring
Insulation material: Non-Insulated
Industry Standard: SAE
Voltage rating (VDC): 600
Temperature rating (ºC): 90
Max current (A): 455
REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
COO (Country of Origin): India
DECLARATION OF PRODUCT COMPLIANCE
SELTERM is committed to managing the use of chemical substances in accordance with governmental regulations, industry standards, and customer-specific requirements in order to protect the environment.
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment. The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
PBB (Polybrominated Biphenyls)
PBDE (Polybrominated Diphenyl Ethers)
DEHP (Bis (2-Ethylhexl) phthalate)
BBP (Benzyl butyl phthalate)
DBP (Dibutyl phthalate)
DIBP (Diisobutyl phthalate)
We hereby declare that the product listed below is compliant to RoHS Directive “2011/65/EU & 2015/863” of the European Parliament on restriction of the use of certain hazardous substances in electrical components & equipment.
Substances of Very High Concerns (SVHCs) are declared if above 0.1% of the article per Regulation (EC) No. 1907/2006 and its subsequent amendments. The Candidate List of SVHCs is continually updated at https://echa.europa.eu/candidate-list-table.
We hereby declare that the product listed below does not contain Substances of Very High Concerns (SVHCs).
Information relates only to product listed below, sold on or after the date of this certificate.
Manufacturer Part no.: MD25056U

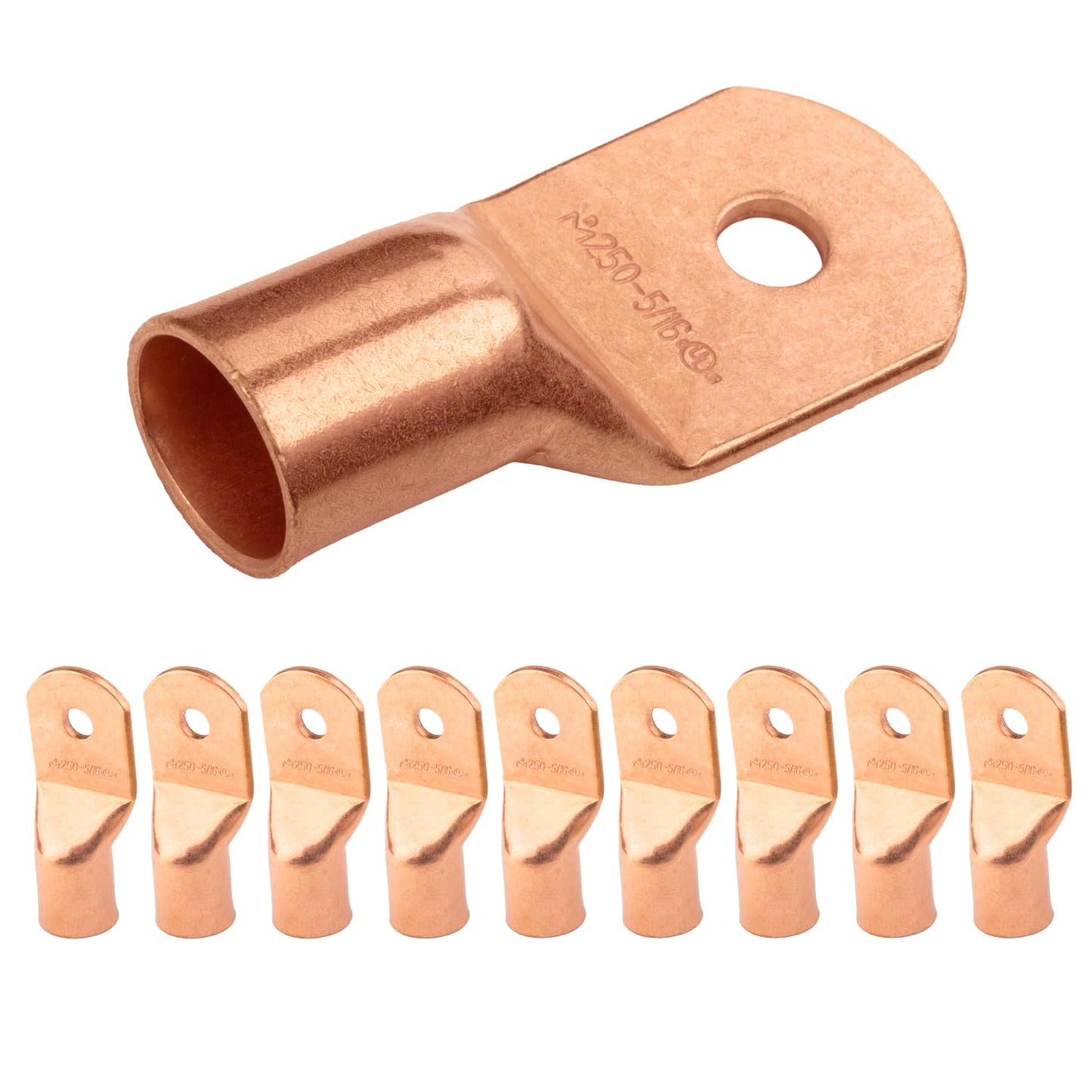

Part Description: 250 MCM, 5/16" Stud, Bare Copper Battery Cable Ends, Wire Lugs, Heavy Duty, MD25056U
