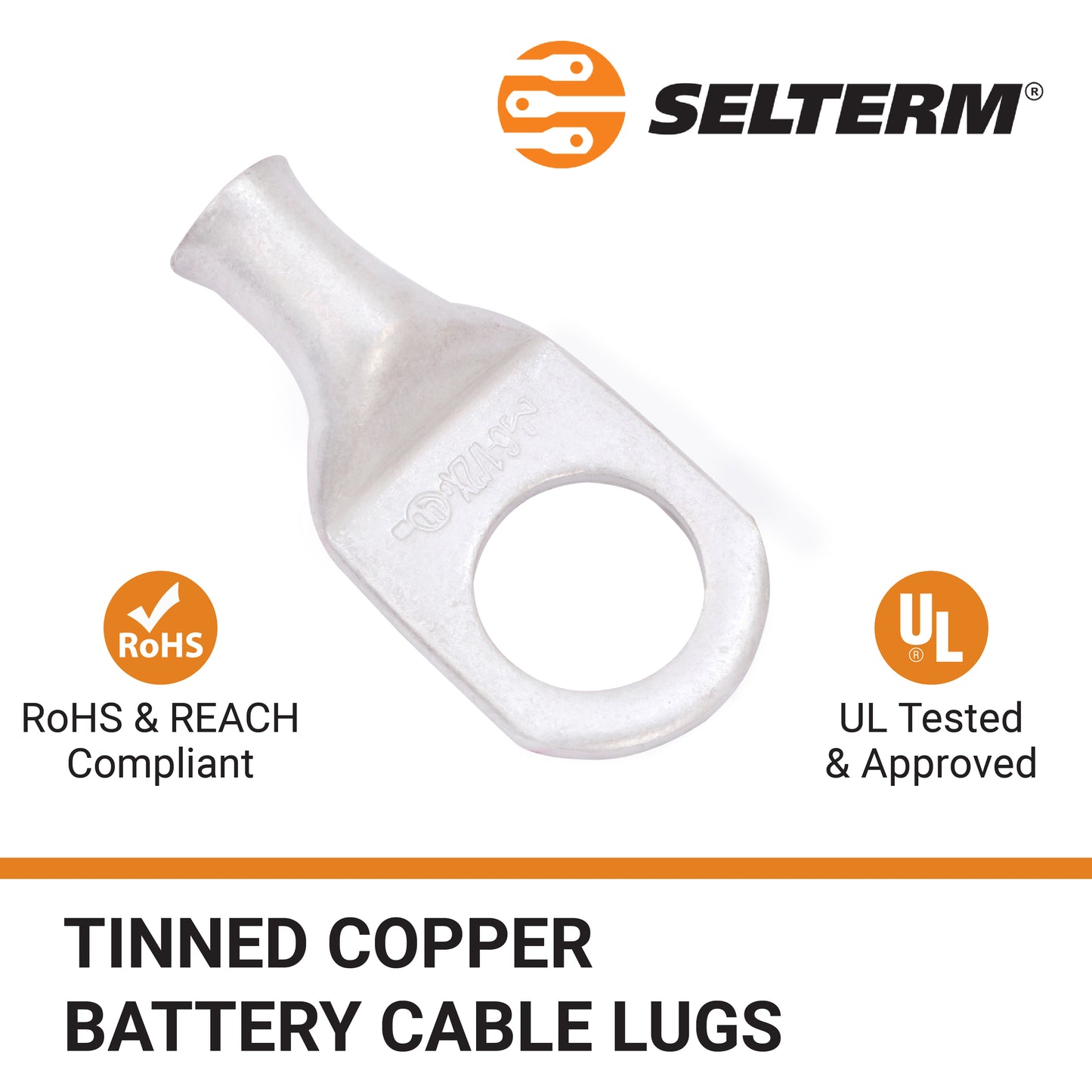

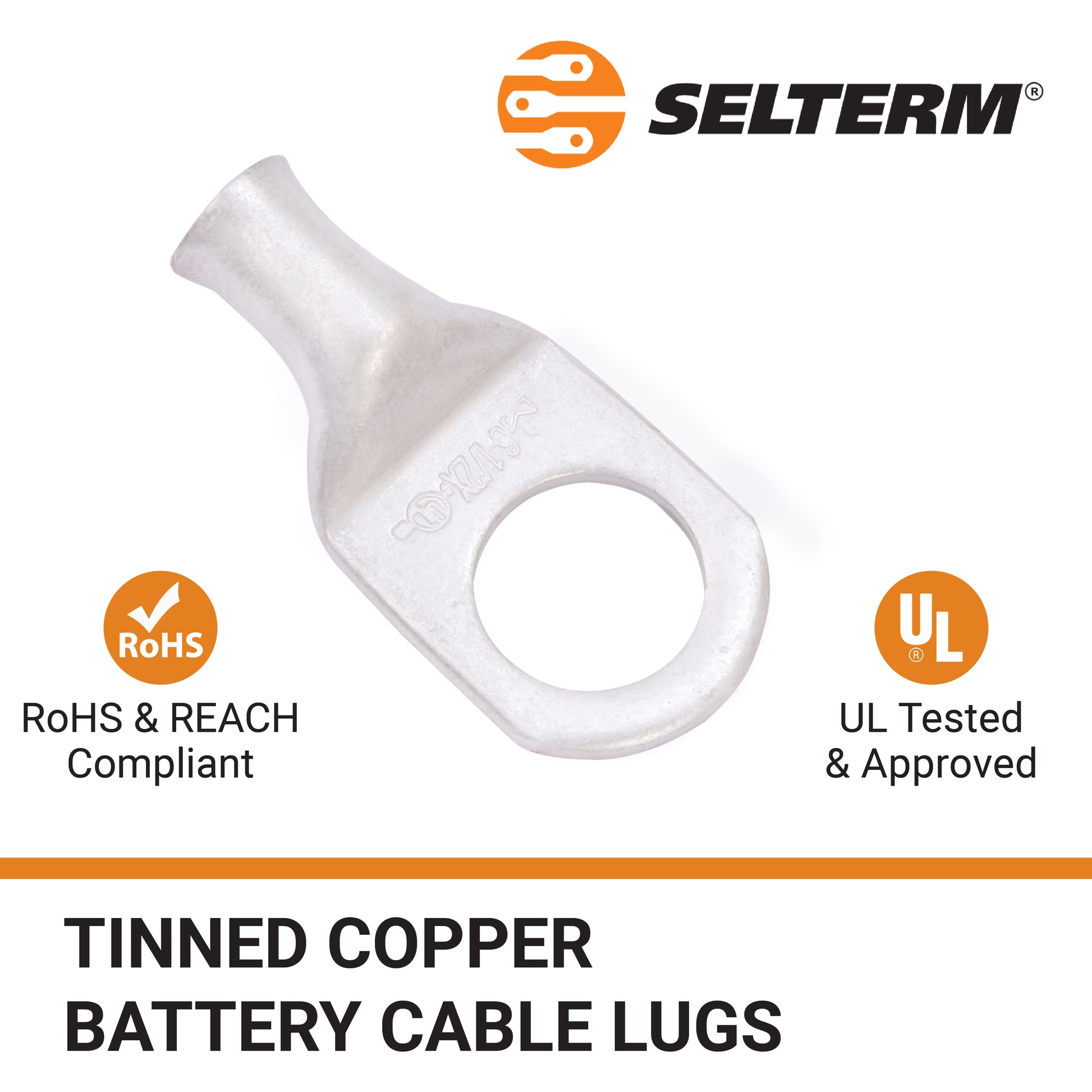

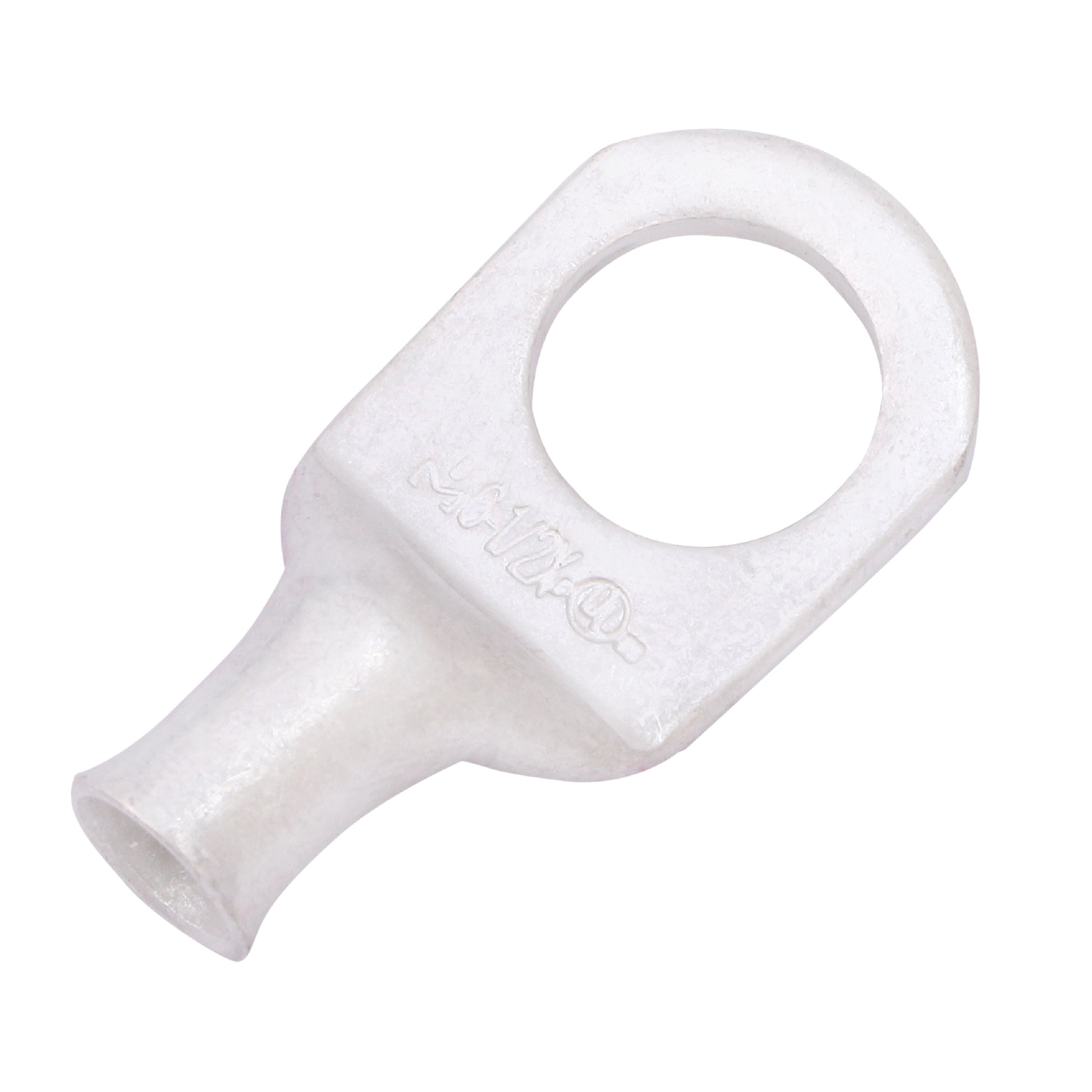

6 AWG, 1/2" Stud, Tinned Copper Battery Cable Ends, Wire Lugs, Marine Grade, MD0612PX - 1

6 AWG, 1/2" Stud, Tinned Copper Battery Cable Ends, Wire Lugs, Marine Grade, MD0612PX

$8.99 $9.61 Save $0.62

SKU: MDS0612PX-2 UPC: 810038972657

Only 9 left!
Quantity: 2 Pack
2 Pack
10 Pack
25 Pack

Free shipping on all orders

Free priority shipping on orders $99+

Contact us for Bulk Packaging

All Major Credit Cards Accepted

Wholesale Inquiry
Description RoHS & REACH Declaration Technical Drawing Shipping Returns
SELTERM Marine Grade Wire Lugs are made from 99.9% pure annealed tinned copper, providing a high degree of conductivity for maximum current flow. This particular variant is generally suitable for use with 6 Gauge Battery Cable & 1/2" (M12) Stud.



 Specifications

  • Manufacturer part no. : MD0612PX
  • Wire gauge: 6 AWG (6 Gauge)
  • Stud size: 1/2" (M12)
  • Pad width: Regular
  • Barrel orientation: Straight
  • Material: Copper
  • Terminal type: Ring Terminal
  • Insulation material: Non-Insulated
  • Industry Standard: UL (File # E254830), SAE
  • Voltage rating (VDC): 600
  • Temperature rating (ºC): 90
  • Max current (A): 105

 Compliance

  • RoHS: Compliant
  • REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
  • COO (Country of Origin): India
 Competitor Part Cross-reference
  • Molex: 192210416
  • Quick Cable: 5951H
  • ASK: 612TP
  • EMC: 6503-1
  • FTZ: 91019

DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.

WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.

Selterm-Logo

DECLARATION OF PRODUCT COMPLIANCE

SELTERM is committed to managing the use of chemical substances in accordance with governmental regulations, industry standards, and customer-specific requirements in order to protect the environment.

RoHS

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment. The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

Substance Concentration
Lead 0.1%
Mercury 0.1%
PBB (Polybrominated Biphenyls) 0.1%
PBDE (Polybrominated Diphenyl Ethers) 0.1%
Hexavalent Chromium 0.1%
Cadmium 0.01%
DEHP (Bis (2-Ethylhexl) phthalate) 0.1%
BBP (Benzyl butyl phthalate) 0.1%
DBP (Dibutyl phthalate) 0.1%
DIBP (Diisobutyl phthalate) 0.1%


We hereby declare that the product listed below is compliant to RoHS Directive “2011/65/EU & 2015/863” of the European Parliament on restriction of the use of certain hazardous substances in electrical components & equipment.

REACH (SVHC)

Substances of Very High Concerns (SVHCs) are declared if above 0.1% of the article per Regulation (EC) No. 1907/2006 and its subsequent amendments. The Candidate List of SVHCs is continually updated at https://echa.europa.eu/candidate-list-table.

We hereby declare that the product listed below does not contain Substances of Very High Concerns (SVHCs).

Information relates only to product listed below, sold on or after the date of this certificate.

  • Manufacturer Part no.: MD0612PX
  • Part Description: 6 AWG, 1/2" Stud, Tinned Copper Battery Cable Ends, Wire Lugs, Marine Grade, MD0612PX
  • Date: May 5, 2014

SELTERM USA, LLC. 693 EXECUTIVE DRIVE, WILLOWBROOK, ILLINOIS, USA – 60527 info@selterm.com | www.selterm.com

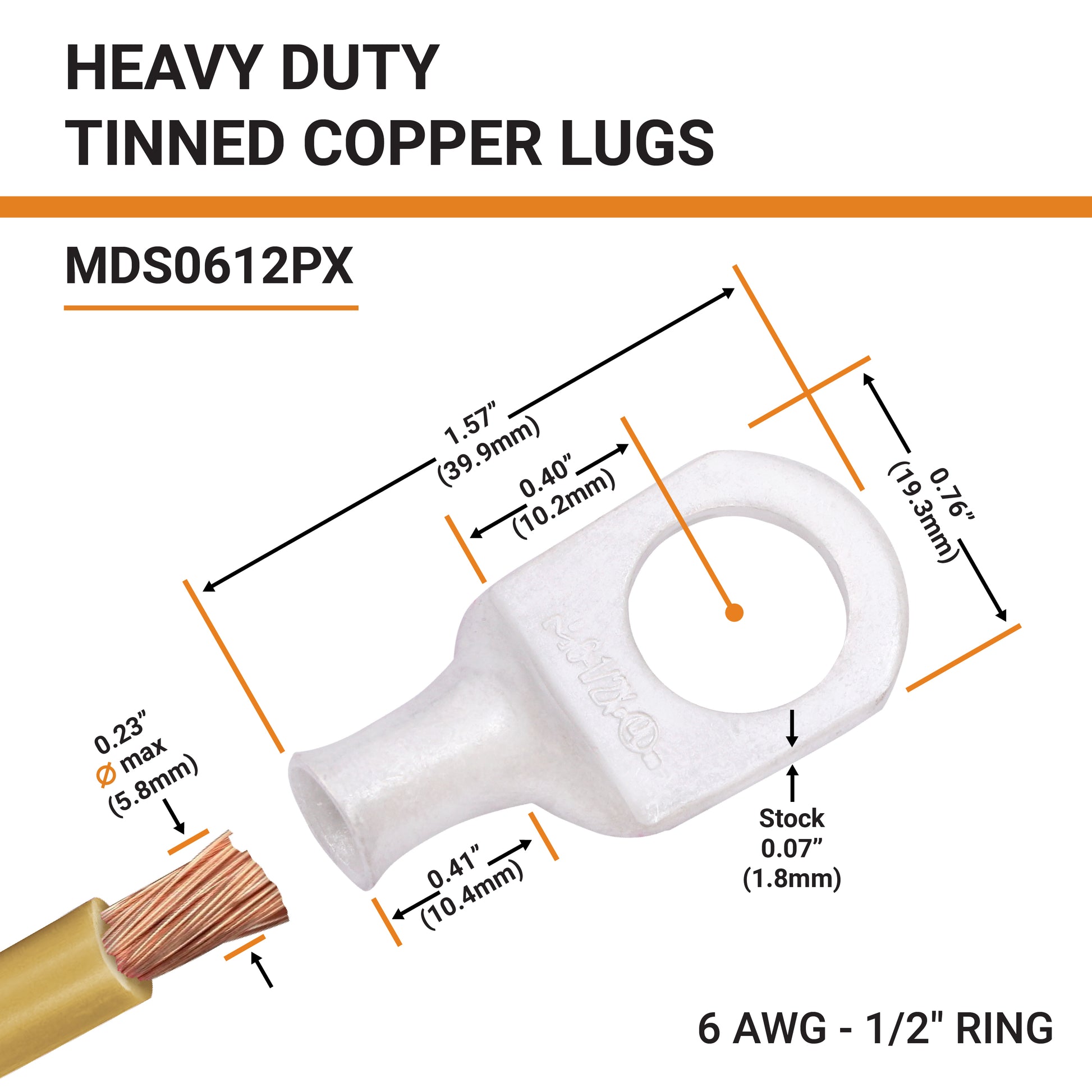

Technical Drawing PDF
