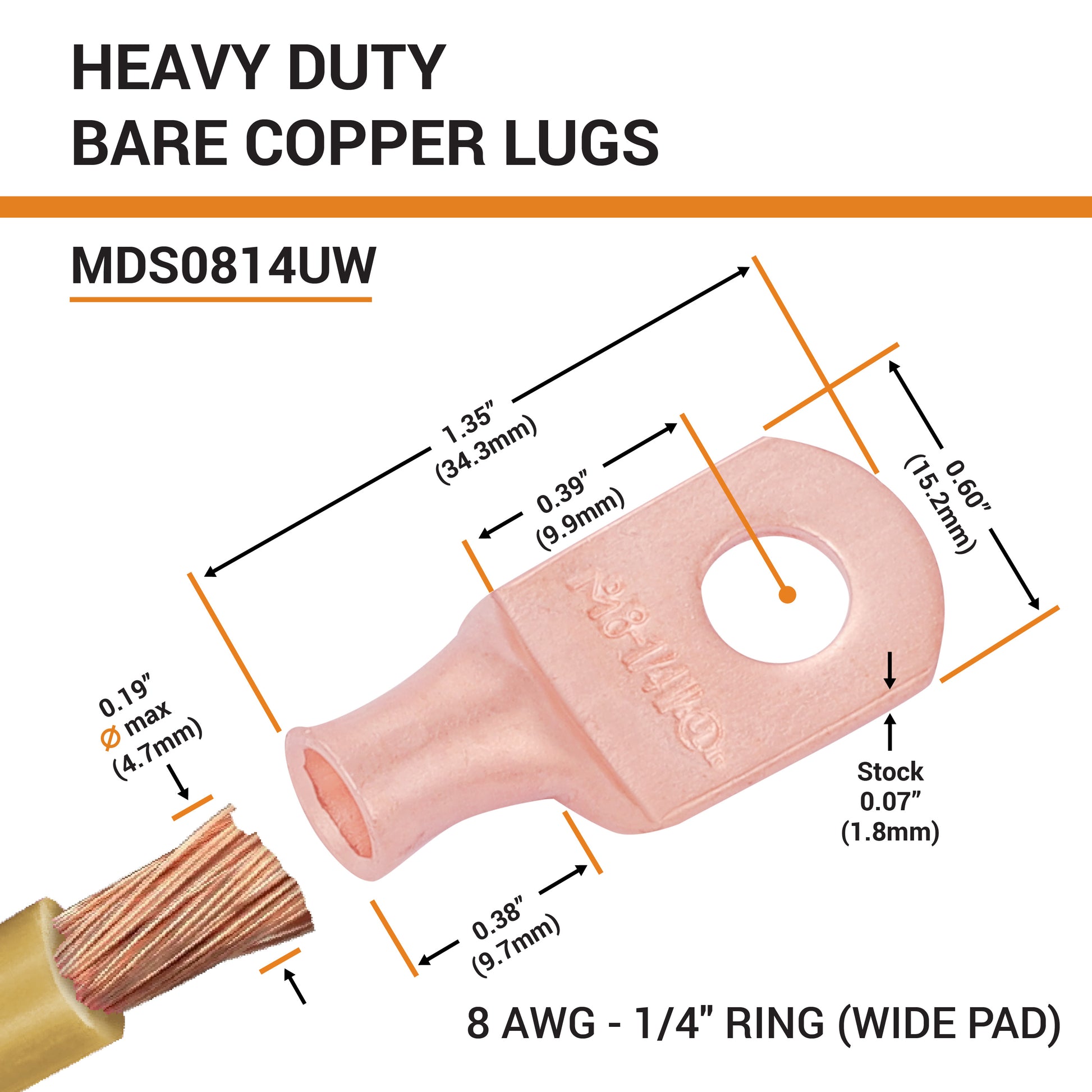

8 AWG (8 Gauge) 1/4" Stud, (Wide Pad) Bare Copper Battery Cable Ends, Wire Lugs, Heavy Duty, MD0814UW

Skip to product information
1 of 4

Description

SELTERM Bare Copper Wire Lugs are made from 99.9% pure annealed copper, providing a high degree of conductivity for maximum current flow. This particular variant comes with a wider pad offering a larger clamping surface and is suitable for use with 8 Gauge Battery Cable & 1/4" (M6) Stud.

Specifications

  • Manufacturer part no. : MD0814UW
  • Wire gauge: 8 AWG (8 Gauge)
  • Stud size: 1/4" (M6)
  • Pad width: Wide
  • Barrel orientation: Straight
  • Material: Copper
  • Terminal type: Solder, Crimp, Ring
  • Insulation material: Non-Insulated
  • Industry Standard: UL/CUL (File # E254830), SAE
  • Voltage rating (VDC): 600
  • Temperature rating (ºC): 90
  • Max current (A): 80

Compliance

  • RoHS: Compliant
  • REACH (SVHC): Not Contained Per - D(2021)4569 - DC (8 July 2021)
  • COO (Country of Origin): India

Competitor Part Cross-reference

  • Molex: 192210562
  • Quick Cable: -
  • ASK: 8142
  • EMC: 8142
  • FTZ: -

DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.

WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.
