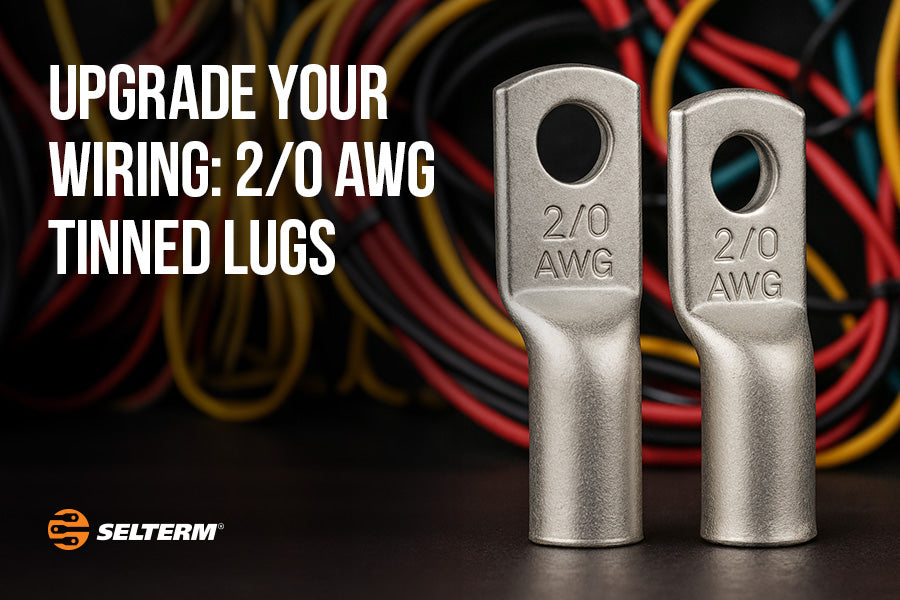

Upgrade Your Wiring: The Benefits of 2/0 AWG Tinned Lugs for High-Performance Electrical Systems

In the realm of electrical systems, the demand for increased power and efficiency is a constant driving force behind technological advancements. As systems evolve to handle greater loads and deliver enhanced performance, the infrastructure supporting them must also adapt. Wiring, the very lifeline of any electrical system, plays a pivotal role in this upgrade process. When it comes to high-performance applications, where substantial currents are involved, the choice of connectors becomes a critical factor. 2/0 awg tinned lugs emerge as a superior solution for such scenarios, offering a robust, reliable, and efficient means of terminating large-gauge cables. This guide delves into the numerous benefits of utilizing 2/0 awg tinned lugs to upgrade wiring systems, ensuring optimal performance and long-term reliability.

Understanding 2/0 AWG Tinned Lugs

To fully appreciate the advantages of 2/0 awg tinned lugs, it's essential to grasp the terminology and specifications involved. "AWG" stands for American Wire Gauge, a standardized system for measuring wire diameter. The designation "2/0" (also written as 00) indicates a specific wire size that is larger than 1/0 AWG and significantly larger than 1 AWG. This larger gauge translates to a greater cross-sectional area, enabling the cable to carry higher currents with minimal resistance.

2/0 lug connector are specifically designed to terminate these 2/0 AWG cables. These lugs provide a secure and efficient connection point, facilitating the transfer of electrical energy between the cable and other components in the system. Typically constructed from high-conductivity copper, these lugs are engineered to minimize resistance and ensure a smooth flow of electricity.

The term "tinned" refers to the coating of tin applied to the copper lug. This tin plating serves a crucial purpose: enhancing corrosion resistance. In many high-performance applications, wiring systems are exposed to harsh environmental conditions, including moisture, chemicals, and temperature extremes. The tin coating acts as a protective barrier, preventing oxidation of the copper and ensuring a reliable connection over extended periods.

Why Upgrade with 2/0 AWG Tinned Lugs?

Upgrading wiring systems with 2/0 awg tinned lugs offers a multitude of benefits, particularly in high-demand applications:

1. High Current Capacity: The most significant advantage of 2/0 copper lugs is their ability to handle substantial electrical currents. These lugs are engineered to accommodate the high amperage associated with heavy-duty equipment, large battery banks, and high-power inverters. Upgrading to 2/0 awg tinned lugs ensures that the wiring system can efficiently deliver the required power without overheating or experiencing voltage drops.
2. Minimized Resistance: The large cross-sectional area of 2/0 AWG cables, combined with the high conductivity of copper lugs, results in minimal electrical resistance. This low resistance translates to reduced energy loss in the form of heat, maximizing the efficiency of the system. Upgrading to 2/0 awg tinned lugs optimizes power transfer, ensuring that the electrical energy reaches its destination with minimal waste.
3. Enhanced Reliability: In high-performance electrical systems, reliability is paramount. A failure in a connection can lead to equipment malfunction, downtime, and even safety hazards. 2/0 terminal lug provide a robust and dependable connection, minimizing the risk of loose connections, arcing, and other potential problems. Upgrading to these lugs ensures a stable and consistent flow of power, enhancing the overall reliability of the system.
4. Improved Durability: High-performance applications often subject wiring systems to harsh conditions, including vibration, mechanical stress, and environmental exposure. 2/0 awg tinned lugs are designed to withstand these demanding conditions, offering exceptional durability and longevity. The robust construction and corrosion-resistant tin plating ensure that the connections remain secure and functional over extended periods.

Applications of 2/0 AWG Tinned Lugs

The unique combination of high current capacity, low resistance, enhanced reliability, and improved durability makes 2/0 wire lugs ideal for a wide range of high-performance electrical systems:

• Battery Connections: In automotive, marine, and RV applications, 2/0 awg tinned lugs are commonly used for connecting large battery banks. These lugs ensure efficient power transfer to start engines, power accessories, and support auxiliary power systems.
• Power Distribution: In industrial settings and power plants, 2/0 awg tinned lugs facilitate the distribution of high currents to various equipment and machinery. These lugs handle the heavy loads and ensure a stable power supply for critical operations.
• Inverter Systems: Off-grid solar and wind power systems rely on inverters to convert DC power from batteries to AC power for use with standard appliances. 2/0 awg tinned lugs provide the necessary connections between the battery bank and the inverter, ensuring efficient and reliable power conversion.
• Welding Equipment: High-amperage welding machines utilize 2/0 awg tinned lugs to handle the intense currents required for welding operations. These lugs withstand the demanding conditions and ensure a stable arc for high-quality welds.

Installation Considerations

To fully realize the benefits of 2/0 awg tinned copper lugs, proper installation is crucial. Adhering to best practices ensures a safe, efficient, and reliable connection:

• Cable Preparation: Carefully strip the insulation from the 2/0 AWG cable to the appropriate length. Ensure that the cable strands are clean and free from damage.
• Lug Selection: Choose a 2/0 awg tinned lug that is specifically designed for the cable size and the intended application.
• Crimping: Use a crimping tool that is designed for 2/0 AWG lugs. Hydraulic crimpers are often recommended for these large-gauge connections. Apply firm, even pressure to create a secure and gas-tight crimp.
• Inspection: After crimping, thoroughly inspect the connection to ensure that it is properly made. Check for proper compression, no loose strands, and no signs of damage.
• Protection: Consider using heat shrink tubing to provide additional insulation and environmental protection for the connection.

Technical Details Recap

• Lug Type: 2/0 terminal lug, 2/0 copper lugs
• Key Benefits: High current capacity, minimized resistance, enhanced reliability, improved durability

Upgrading wiring systems with 2/0 awg tinned lugs is a strategic investment in the performance, efficiency, and reliability of high-power electrical systems. By adhering to proper installation techniques and utilizing the superior properties of these lugs, professionals and enthusiasts can ensure a robust and long-lasting power infrastructure.
